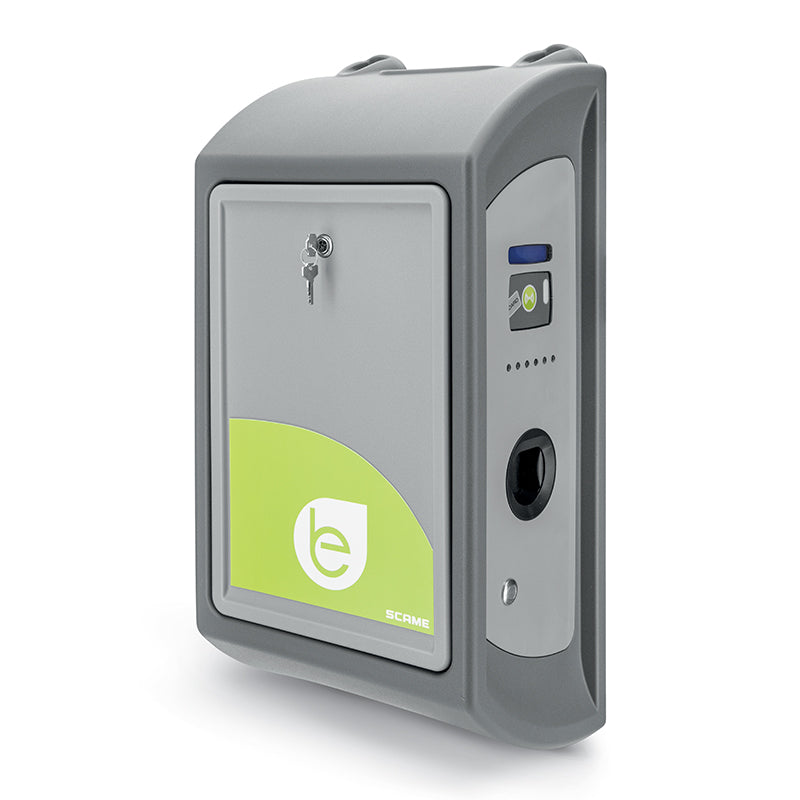

WALLBOX WD - 11kW Dual Type 2 Charging Station

EV standard

• BUSINESS Version
• No Connectivity
• Type 2 3P+N+E 32A 400V~ 22kW
• HMI (Human-Machine Interfaces)
• LCD 2x20 char
• RFID authentication

EV functions

• charge in mode 3 with pwm circuit pilot
• predisposition for serial communication
• energy metering and current consumption
• identification of authorized user
• protection against direct contact Safety Child Shutters
• working in mode stand-alone free or personal
• charge managing in case of power outage
• identification of connected cord-set size
• managing of lid locking and latching system

EV equipment

• 2 lighting bars with RGB led
• 1 backup battery
• 2 DC Leakage detectors
• 2 control cards
• 2 lcd display 2x20 rows backlight
• 2 readers RFID 13,56MHz
• 2 stop charge push-buttons (mode free)
• 2 fuse holders 1P+N gG 4A
• 1 terminal strip 10x35mm²
• 2 modular contactors 4P 25A 24Vdc
• 2 power supplies 24Vdc 36W
• 2 digital energy meters 3P+N 80A

EV excluded

• upstream protections (by the installer):
• 2 circuit breakers 3P+N C20 30mA ist. A
