BE-M DC Charging Station

FAST DC GROUND MOUNTED STATION

BE-M SERIES

BE-M is a range of charging stations for the fast charging of electric vehicles in DC direct current up to 150kW.

Contact Us

Durable

IP54 and IK10 Rated

Connected

Supports OCPP1.6J via Ethernet, 4G or WiFi

Fast Charging

Available up to 150 kW in DC and 43 kW in AC

Technical Infomation

BE-M

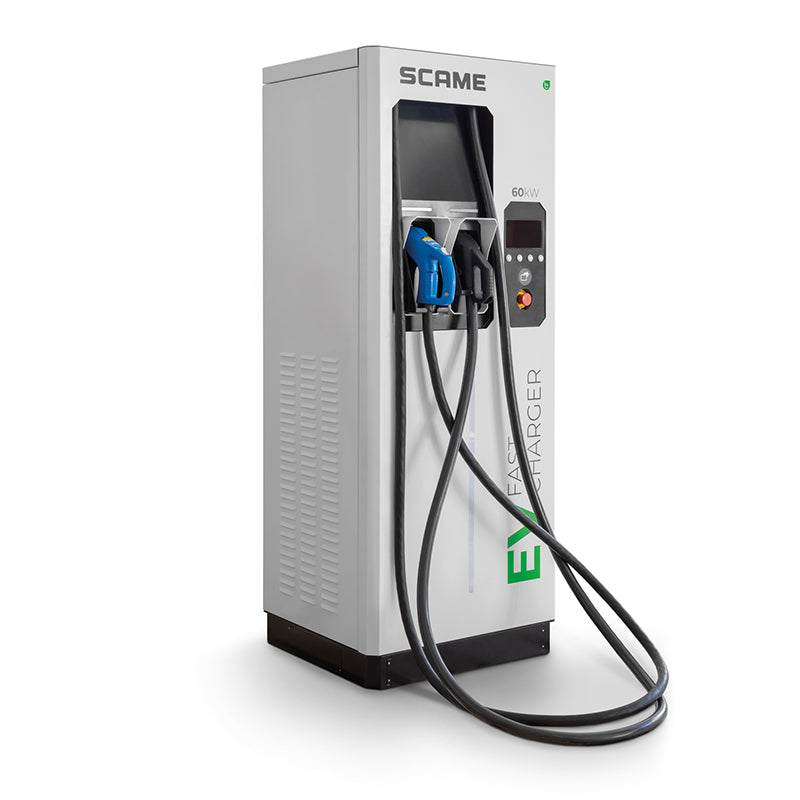

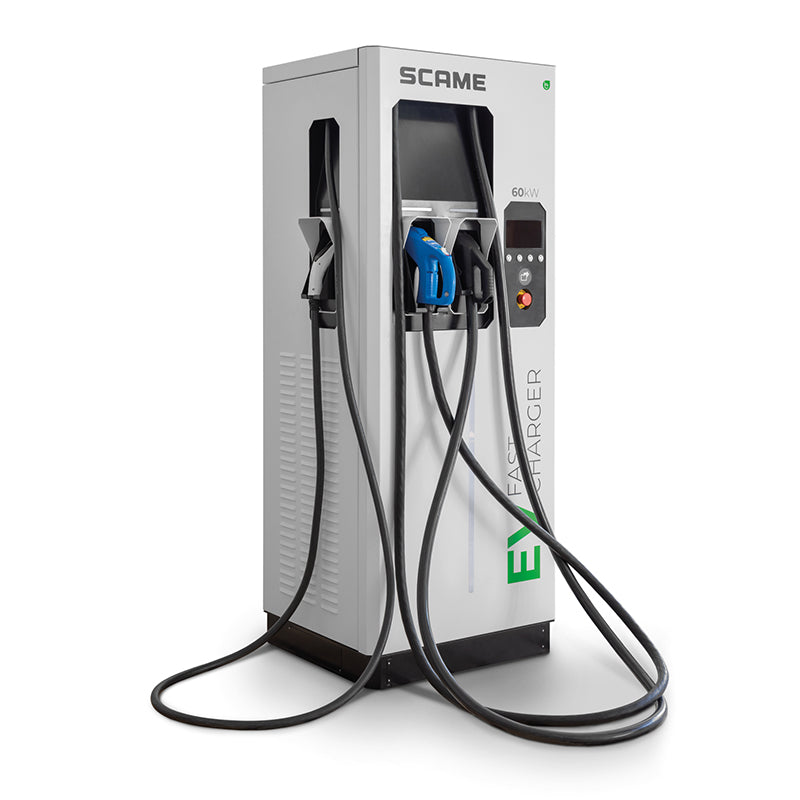

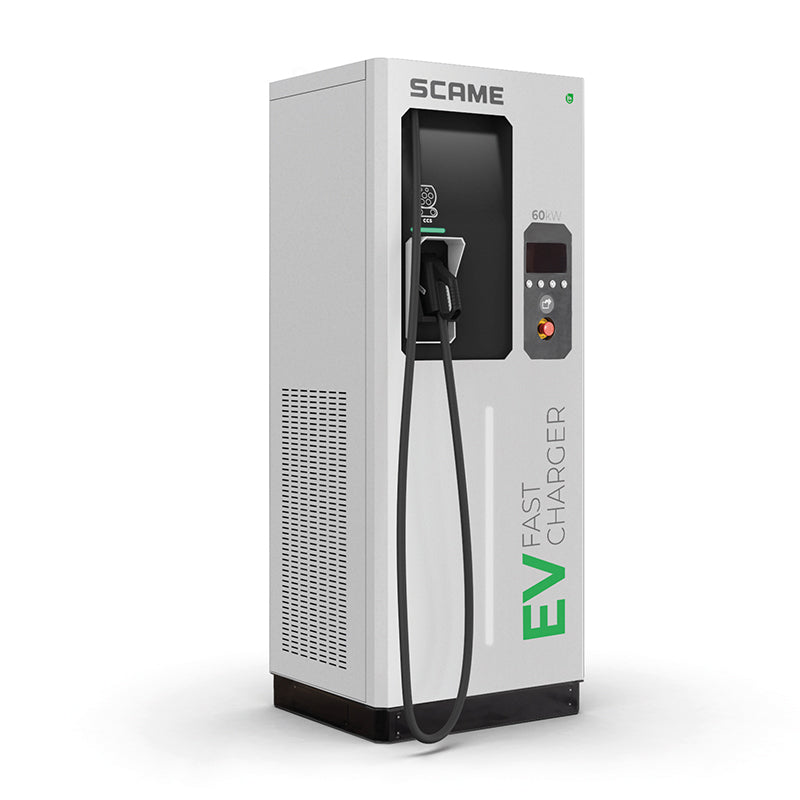

BE-M Series BE-M is a range of charging stations for the fast charging of electric vehicles in DC direct current up to 150kW. Made of sturdy painted steel sheet, they are equipped, depending on the version, with two cables with CCS2 and/or CHAdeMO connectors and a cable with Type 2 connector for AC alternating current charging. A version with a single CCS2 connector and a nominal power of 60kW is also available. The user interface is guaranteed by a display with integrated ambient light sensor.

BE-M charging stations, equipped with Ethernet–WiFi–2/3/4G connectivity, can be connected to an OCPP backend.

Distinctive Elements

CUSTOMIZATION
Wanting to add an identity trait, the BE-M charging stations can be graphically customized
according to customer's brand.
Graphic customization must be requested by specifying the code 209.CU01-M when
ordering and by sending your logo exclusively in vector format.
Strongly convinced that design is a fundamental component of the brand and the product,
Scame Parre reserves the right not to accept graphic proposals that are incompatible
with the image of the brand and its stations.

Main functionalities and elements

01. Removable metal hooks for lifting the station facilitating its handling
Structure in painted steel shet
Connectivity via Ethernet-WiFi-2/3/4G
Charging status LED
TFT display with integrated ambient light sensor
RFID reader for user authentication
Emergency push button
Possibility of a Type 2 connector for AC charging in addition to the onr or two connectors for DC fast charging
Base designed for inserting the forklifts to facilitate easy handling of the station
Possibility of graphic customisation of the housing.

Reference Standards
