DC WALL CHARGING STATION
BE-D
BE-D consists of Wall Box models accented by a powder-coated aluminum frame, delivering a power level of 25 kW.
Technical Infomation
BE-D

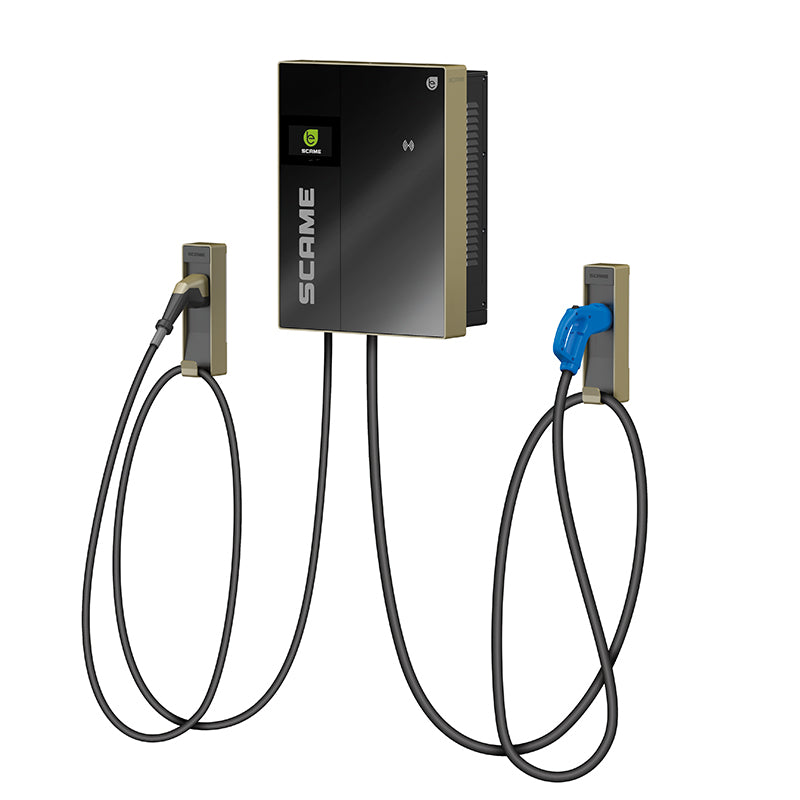

The BE-D series comprises DC Power Wall Box charging stations delivering 25 kW of power. They come equipped with either a single cable featuring a CCS2 or CHAdeMO connector, or with dual cables comprising a CCS2 and a CHAdeMO connector. These stations are affixed to designated wall supports when not in operation.
User interaction is facilitated through a TFT touchscreen interface. Optionally, access can be restricted to authorized users. These charging stations, featuring Ethernet–WiFi-2/3/4G connectivity, offer remote monitoring and management via the Scame Management System. Alternatively, they can integrate with an external E-Mobility Service Provider using the OCPP 1.6Json standard communication protocol.
Constructed from halogen-free technopolymer and accented with a powder-coated aluminum frame, these stations boast sleek and minimalist aesthetics, bearing the signature design of Trussardi+Belloni. Versatile in any setting, they are complemented by a dedicated support box crafted from powder-coated steel, facilitating ground installation.
- Voltage rating : 230/400V ac
- Current rating : 40A ac
- Frequency : 50-60Hz
- Distribution system : 3P+N+PE
- Output connectors : CHAdeMO e/o CCS2
- Voltage output : 150-500 Vdc / 150-1000 Vdc
- Current output : max 60A dc
- Efficiency : 94%
- EMC Class : A
- Ingress protection rating : IP54
- Operationg temperature : -30/+45°C derating over +45°C
- Storage temperature : -30°C + 60°C
- Altitude: 2500 m max
- Humidity (non condesing) : da 5% a 95%
- Acustic noise : < 55 db
- Material : Varnished metal
- Glow wire test : -
- IK degree at 20°C : IK10
- Colour : Anthracite
- Mounting : Wall Mounting
- Saline solution : Resistant
- UV Rays : Resistente
- Dimensions (WxDxH) 594x252x794 mm
- Weight (approx.) 70 kg excluding the cables
- TFT 7" touch color display with motion sensor
- reader RFID MiFare Classic /Plus / DESFire
- local server wired with OCPP 1.6J protocol
- emergency stop button
- charging mode 4 CCS2 ro CHAdeMO
- identification of authorized user
- interfacing with OCPP Central Station
- predisposition for network connection
- working in a free access o identification access mode
- IEC/EN 61851-1 (Electric vehicle conductive charging system. Part 1: General requirement.)
- IEC/EN 61439-7 (Low-voltage switchgear and control gear assemblies. Part 7: Assemblies for e.v. charging stations. )
- With tethered charging cable with CHAdeMo output
- With tethered charging cable with CCS2 output
- With tethered charging cables with CCS2 and CHAdeMo outputs (Not simultaneous)
BE-D
Configurations
CCS2
25kW Output
CCS2 + CHAdeMO
25kW Output (not simultaneous)
Compare
Electrical Properties
CCS2
CCS2+CHAdeMO
CCS2 150-1000Vdc 60A
CCS2 150-1000Vdc 60A
CHAdeMO 150-500Vdc 60A
40A
40A
400
400V
50/60Hz
50/60Hz
5P
5P
Physical Properties
Varnished Metal
IP54
-30/+45°C derating above +45°C
-30°C/+60°C
IK10
Anthracite
Resistant
UV resistant
Surface Mounted
594x794x252
70kg excluding Cables
Safety and Certification
It is essential to prioritise electrical safety and certification
IEC/EN 61851-1
IEC/EN 61439-7
IPXXD
Child Protection Shutters
DC Leakage Protection
Connector release in case of power failure
