AC WALL CHARGING STATION FOR ELECTRIC CARS

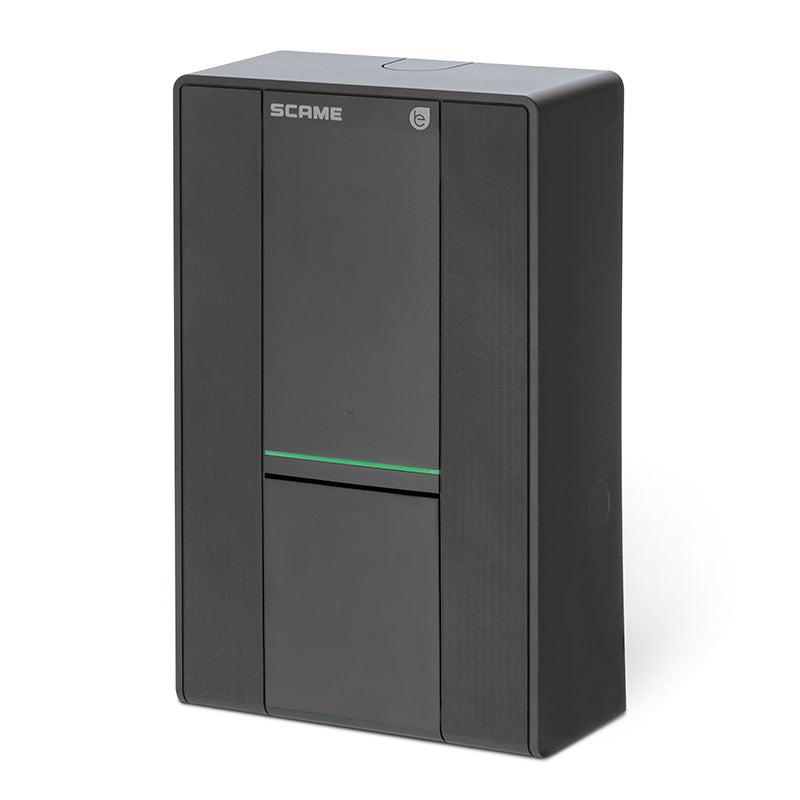

BE-W[2.0]

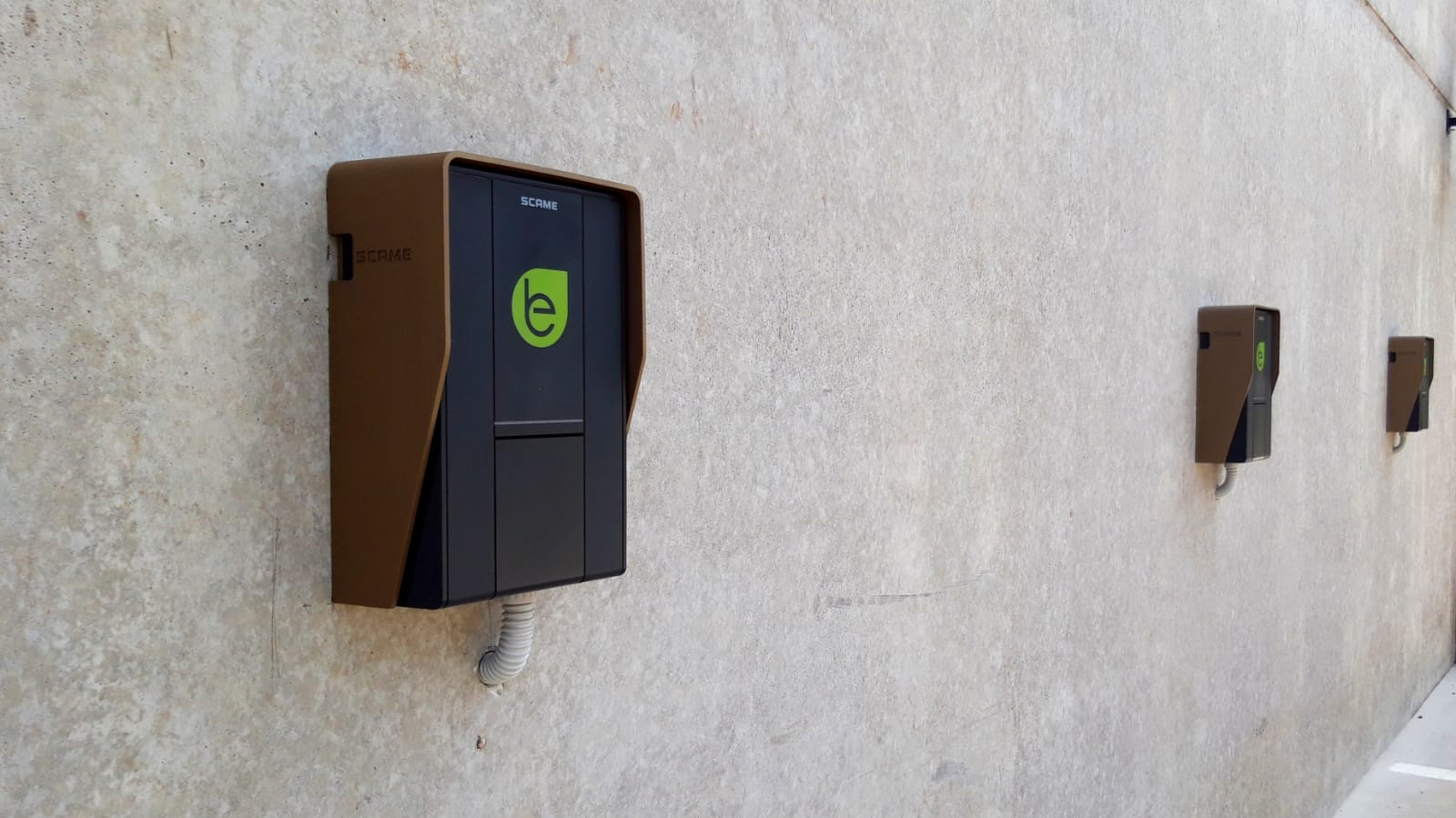

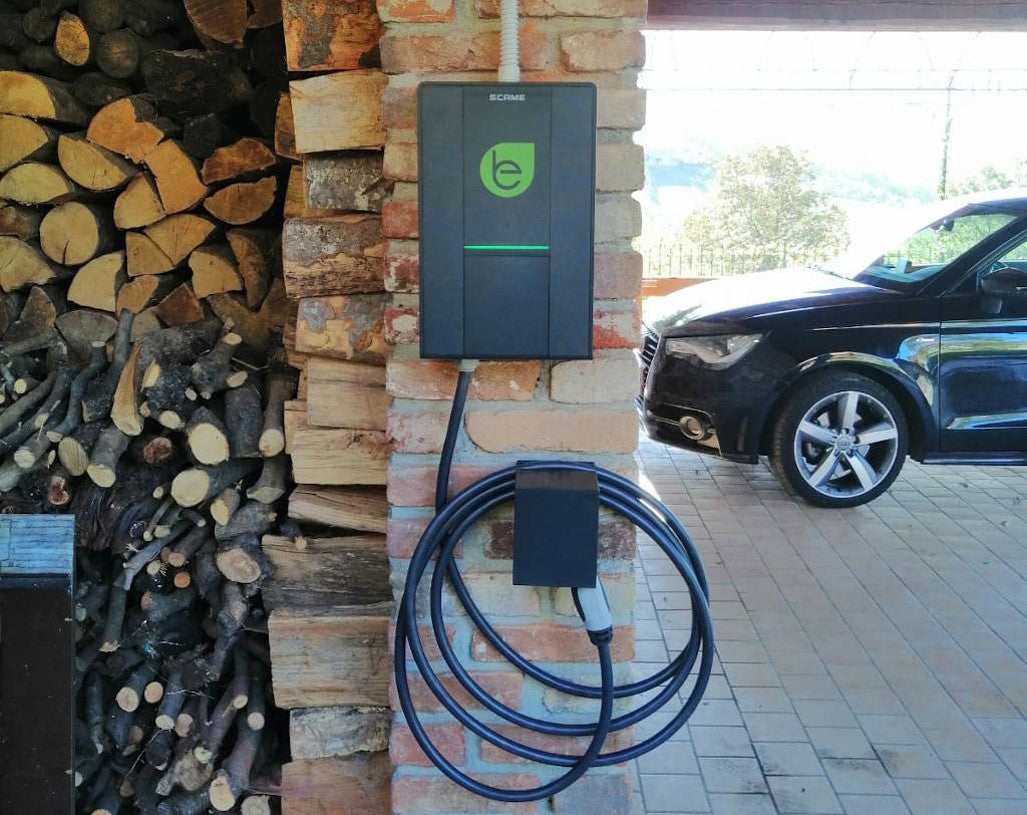

BE-W is a range of Wall Box ideal for charging in domestic environments, but with all the features to be installed in public areas.
BE-W[2.0]: The Wall Box
Discover the features of the new BE-W [2.0]: the Scame E-Mobility app for its management and the 3 different operating modes of the Dynamic Power Management
BE-2[2.0]
Versions
Lite
STANDALONE APPLICATIONS WITH FREE OR CONTROLLED ACCESS
Along with the possibility of allowing free usage, access to the charging station can be restricted to a group of users, the registration of which takes place locally. LITE version charging stations operate in a standalone way and cannot be placed in a network of other stations.
Operating Modes
- Free
- Personal
Functionalities
- Local WiFi App*
- Dynamic Power Management (Solar)**
*In models where is provided
**Accessory for supported models
Business

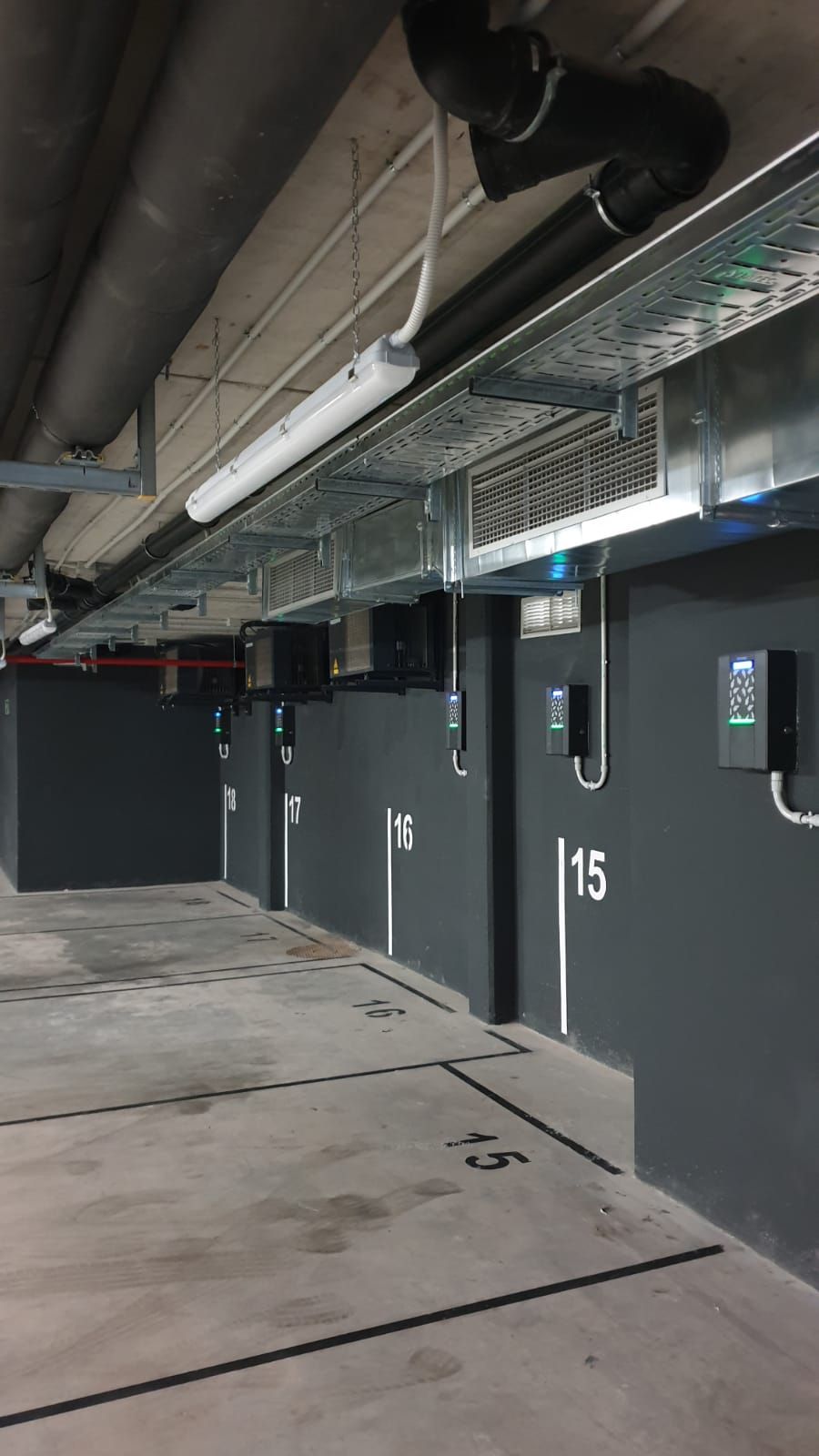

STANDALONE OR MULTI-STATION APPLICATIONS (SATELLITE)
In addition to the possibility of operating in a standalone way, either with or without access restriction, a BUSINESS charging station can operate as a Satellite of a Master station.
A Master station defines the rules that regulate the access to the group of stations. That is done via Scame’s Management System or an OCPP backend to which the Master is connected to.
Operating Modes
- Free
- Personal
- WEB/NET (Satellite)
Functionalities
-Dynamic Power Management (accessory for supported models)
-Management System (Satellite)
-Load Balancing (Satellite)
Pro
MULTI-STATION APPLICATIONS (MASTER)
PRO charging stations are designed to operate as Masters in a Master/Satellite system architecture.
Access to a charging session can be restricted, or not, according to the rules defined in the Scame Management System or by the OCPP platform to which the Master station is connected to.
Operating Modes
- WEB/NET (Master)
FUNCIONALITIES
-Dynamic Power Management
- Management System (Master)
- Load Balancing (Master)
- OCPP 1.6JSON protocol
User Friendly

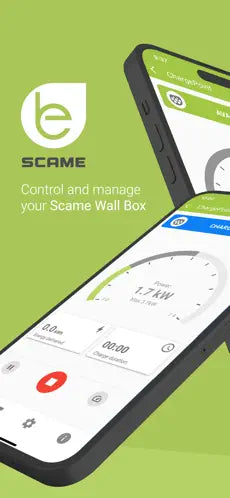

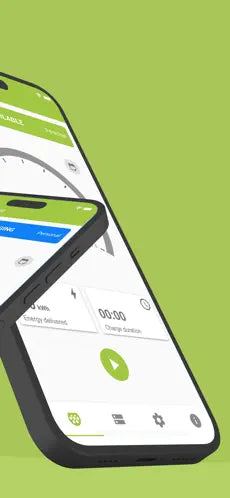

Scame eMobility App

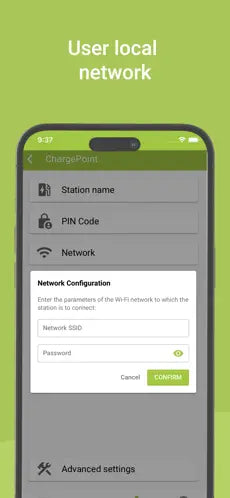

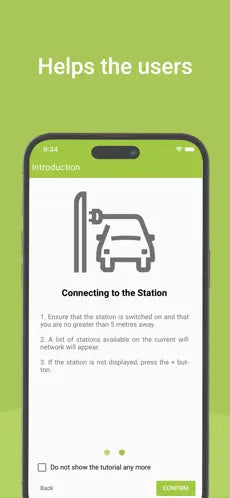

For the LITE versions of Scame wall boxes, designed for purely domestic use, the Scame E-Mobility local WiFi app is available, compatible with Android and iOS and downloadable from the main e-stores.
The Scame E-Mobility app projects the user into a new dimension of dialogue with the station, allowing full control of the recharging operations in an easy and intuitive way.
Through the Scame E-Mobility app it is in fact possible to:
- Authenticate the user enabling him to recharge
- Monitor in real time and manage individual charging sessions

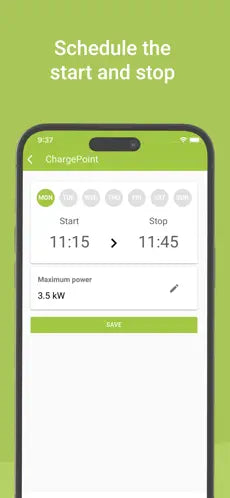

- Schedule and program individual charging sessions
- Manage Dynamic Power Management functioning mode
- Download charging sessions reports and history
- Check the status of the charging station and change its operating mode.
- Update firmware
Available on the App Store and on Google Play
Google Play and the Google Play logo are trademarks of Google LLC
App Store and Apple Logo are trademarks of Apple Inc.
Solar Charging
Dynamic Power Management
The Dynamic Power Management function is an indispensable option in residential installations where the available power is limited. In this context, starting a recharging session of an electric vehicle while other electrical appliances are in operation (e.g. a washing machine) can cause an interruption in the power supply due to exceeding the contractual power.
The intelligent Dynamic Power Management function allows the wall box to dynamically modulate the current intended for recharging the electric vehicle based on the instantaneous consumption of all household appliances, avoiding power outages, all while also taking into consideration the current generated by photovoltaic panels or other renewable source, if any.
Once the Dynamic Power Management function has been activated, it is possible to set three different functioning modes.
Always charge at full power
Full
Use this text to share information about your brand with your customers. Describe a product, share announcements, or welcome customers to your store.
Eco Charging
EcoSmart
It uses the power generated by the local renewable source plus a minimum contribution from the grid, predefined but which can be increased by the user, to make up for any drops in power, thus guaranteeing continuity of charge.
This mode can only be selected in the presence of a local renewable source production plant (e.g. photovoltaic, wind…)
Green charging from renewable source only
EcoPlus
It uses the power generated only by the local production plant from renewable sources (e.g. photovoltaic, wind…).
In this mode the charge is totally dependent on the state of generation of the renewable source and may be subject to suspensions such that the vehicle may not charge at the desired times.
Learn
Configurations
Available as a Type 2S socket or Tethered Type 2
Socket
22kW Three Phase or 7.4kW Single Phase

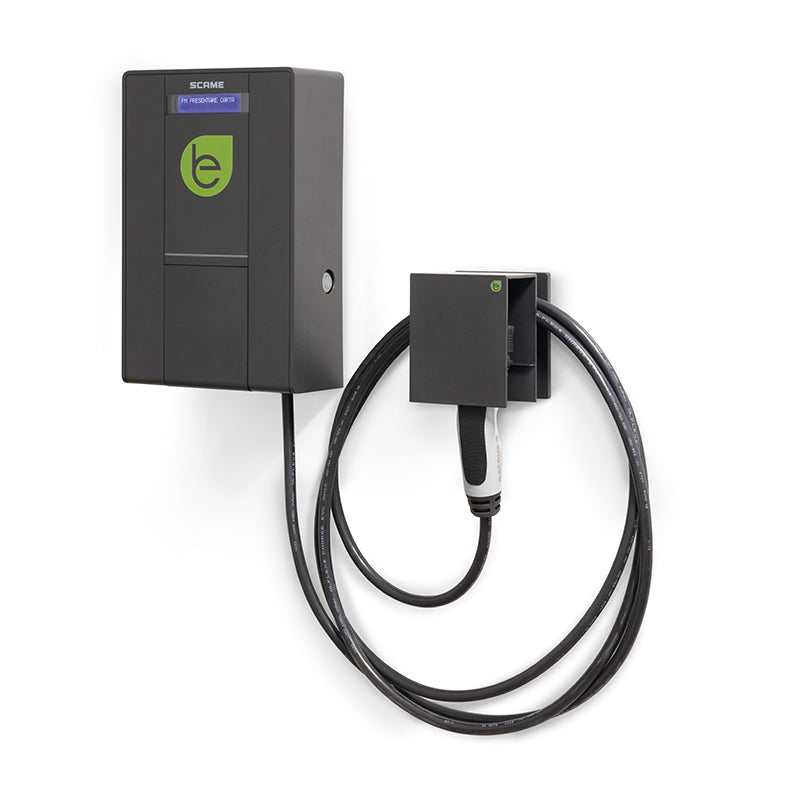

Tethered
22kW Three Phase or 7.4kW Single Phase
Compare
Electrical Properties
Single Phase
Three Phase
Type 2 1P+N+E 32A 230V~ 7.4kW
Type 2 3P+N+E 32A 400V~ 22kW
32A
32A
230V
400V
50/60Hz
50/60Hz
1P+N+E
3P+N+E
Physical Properties
Engineering Plastic
IP55
-30°C/+50°C
GW 650°C
IK08
Anthracite
Resistant
UV resistant
Surface Mounted
235x370x115mm
Safety and Certification
It is essential to prioritise electrical safety and certification
IEC/EN 61851-1
IEC/EN 61439-7
IPXXD
Child Protection Shutters
DC Leakage Protection
Connector release in case of power failure
