PILLAR BE

AC GROUND MOUNTED STATION

PILLAR BE

BE-A & BE-B is a range ideal for charging in commercial environments.

Technical Infomation

PILLAR BE

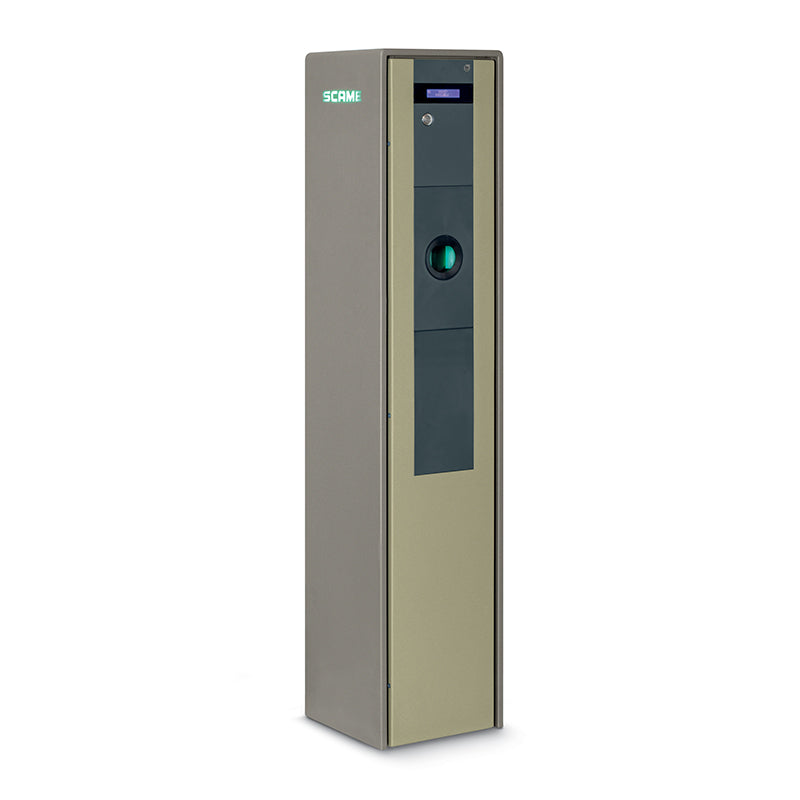

BE-A represents a series of AC power charging pillars featuring one or two socket outlets ranging from 7.4 kW to 22 kW, conveniently arranged frontally. These pillars incorporate IPXXD Type 2 socket outlets with shutters, coupled with the Scame One Hand Vandal proof flange, ensuring safer, easier, and more accessible charging operations. Enhancing user experience, the vandal-proof flanges are surrounded by an illuminated ring indicating the charge status.

User interaction is facilitated through an LCD display, ensuring intuitive operation. Optionally, access can be restricted to authorized users. BE-A charging pillars can be managed either through Scame's proprietary management system or can be linked to an external E-mobility Service Provider via the OCPP standard communication protocol.

Crafted from powder-coated steel, the BE-A charging stations boast durability and sleek design lines, courtesy of Trussardi+Belloni Design, making them suitable for various urban contexts. Their frontal socket arrangement enables installation close to walls or recessed in wall niches, adding to their versatility.

Distinctive Elements

TYPE 2 SOCKET WITH SHUTTERS (T2S)
Scame patented type 2 socket outlet integrates a mechanical protection system (known as shutters) that elevate the safety standard to IPXXD. T2S, simply safer.

ONE HAND VANDAL PROOF PROTECTION
Scame One Hand Vandal Proof flange reduce the risk of vandals tampering with the covers and improves charging accessibility.

LED ILLUMINATED SOCKET
An LED light encompassed in the socket flange will provide information on charging session status and idenitify socket location during night time.

CUSTOMIZATION

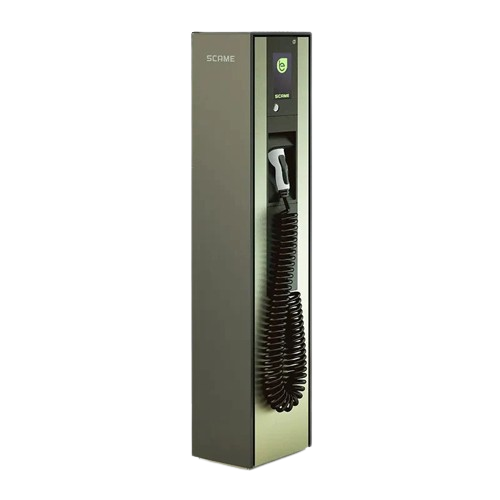

Charging stations BE-A tethered can be personalised with one’s own company logo in the indicated area.
To request personalisation, the code 209.CU01-A or 209.CU01-B must be inserted in the order and a vector file of the company logo must be attached.

Technical Characteristics

Rated current : 16A-32A-63A
Rated voltage : 230Vac-400Vac
Frequency : 50/60Hz
Insulation voltage : 250V-500V
Protection degree : IP54
Active parts protection : IPXXD
Installation temperature : -30°C +50°C
Material : Powder-coated steel
IK degree at 20°C : IK10
Colour : BE-Bronze
Installation : Floor standing
Saline solution : Resistant
UV rays : Resistant

Main functionalities and elements

LED Status Indicator
LCD Display
Adjustable Current: from 6A to 32A (32A default)
DC Leakage detection allows to fit upstream RCD Type A protections (verify local regulations)
Save unlock in case of power outage will keep the system in standby for 1 minute. Will resume charging in case power comes back before system shutdown

Reference Standards

EN 61851-1 (3rd. ed.)
EN 61439-7

BE-A & BE-B

Versions

BUSINESS

STANDALONE OR MULTI-STATION APPLICATIONS (SATELLITE)

In addition to the possibility of operating in a standalone way, either with or without access restriction, a BUSINESS charging station can operate as a Satellite of a Master station.

A Master station defines the rules that regulate the access to the group of stations. That is done via Scame’s Management System or an OCPP backend to which the Master is connected to.

Operating Modes

- Free

- Personal

- WEB/NET (Satellite)

Functionalities

-Dynamic Power Management (accessory for supported models)

-Management System (Satellite)

-Load Balancing (Satellite)

Pro

MULTI-STATION APPLICATIONS (MASTER)

PRO charging stations are designed to operate as Masters in a Master/Satellite system architecture.

Access to a charging session can be restricted, or not, according to the rules defined in the Scame Management System or by the OCPP platform to which the Master station is connected to.

Operating Modes

- WEB/NET (Master)

FUNCIONALITIES

-Dynamic Power Management

- Management System (Master)

- Load Balancing (Master)

- OCPP 1.6JSON protocol
