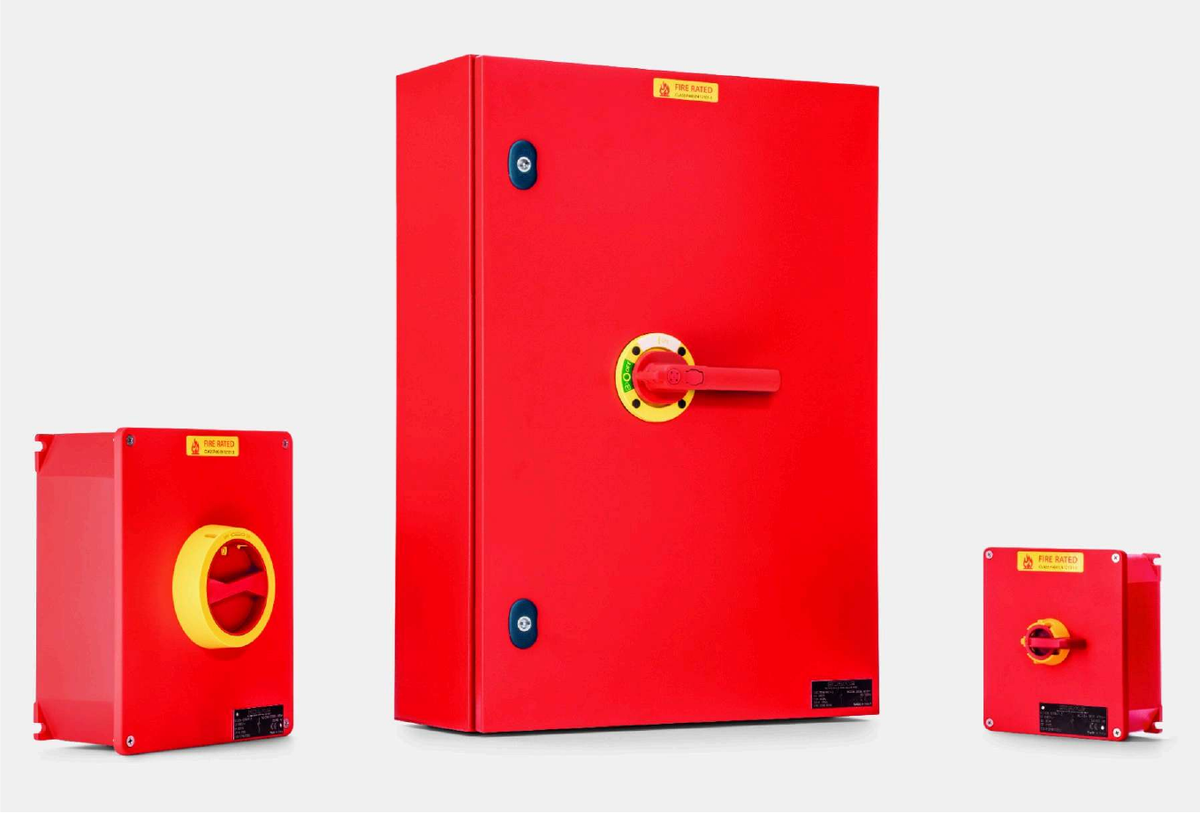

SCAME Fire Rated Switch Disconnector 125A 3P+SN IP66 F200

The SCAME 590.F2EM12505.SN is a fire rated switch disconnector designed for use in critical electrical installations where reliable isolation is required during emergency conditions. Rated at 125A, this unit features a 3-pole switch with a solid neutral (SN) link, providing isolation of the active conductors while maintaining a permanent neutral connection.

Certified to F200 120, the switch disconnector is suitable for applications such as smoke extraction and emergency ventilation systems where continuity of operation is essential during a fire event.

With an IP66 enclosure rating, the unit provides a high level of protection against dust ingress and powerful water jets, making it suitable for demanding indoor and outdoor environments.

Features

• 125A rated current
• 3 Pole + Solid Neutral (3P+SN)
• Fire Rated F200 120
• IP66 enclosure rating
• Unswitched neutral (solid neutral terminal block)
• Suitable for smoke extraction and emergency ventilation systems
• Designed for commercial and industrial applications

Applications

• Smoke extraction systems
• Emergency ventilation systems
• Underground car parks
• Commercial buildings
• Industrial facilities
• Critical electrical infrastructure
