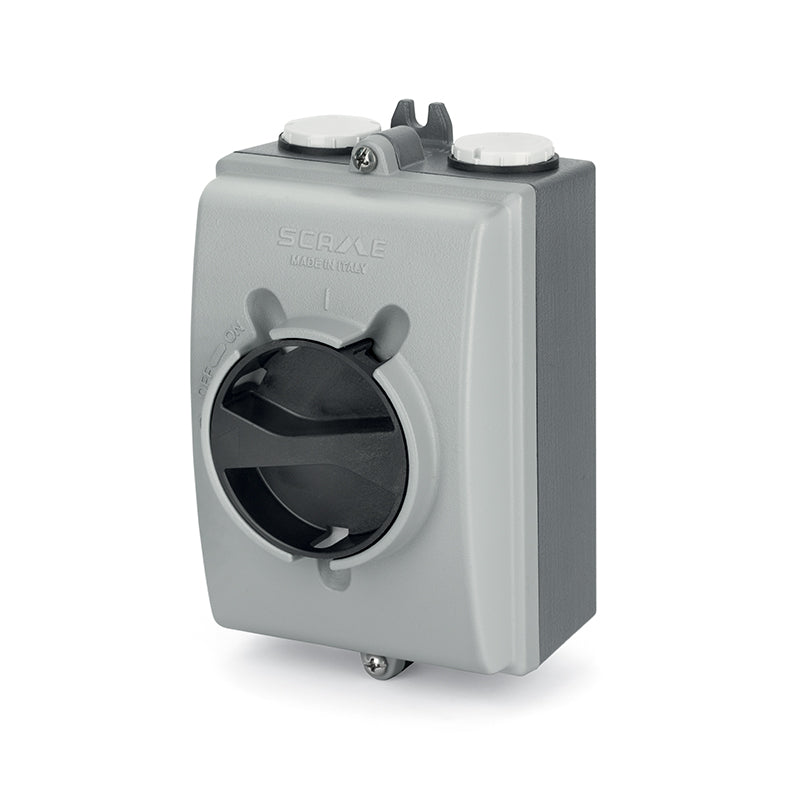

SCAME Switch Disconnector 40A 3P+N LINK IP66 (General - Grey/Black)

The ISOLATORS-AL[EVO] Series switch disconnector is built for general-purpose industrial use, with a die-cast aluminium enclosure and a grey/black handle for a clean, professional finish suited to commercial and industrial switchboards. This version includes a neutral link for streamlined installation.

Rated at 40A and operating efficiently at 35A under AC23A (415V) conditions, it's configured as 3P+N LINK with a Y1 switch size, rated up to 690V. It carries a high IP66 protection rating together with IK10 impact resistance.

The unit features a lockable door interlock and a handle that can be padlocked in both the OFF position (up to three padlocks) and the ON position (one padlock). Cable entry is via an open threaded entry with cap and cable sleeve for a clean, sealed termination.
