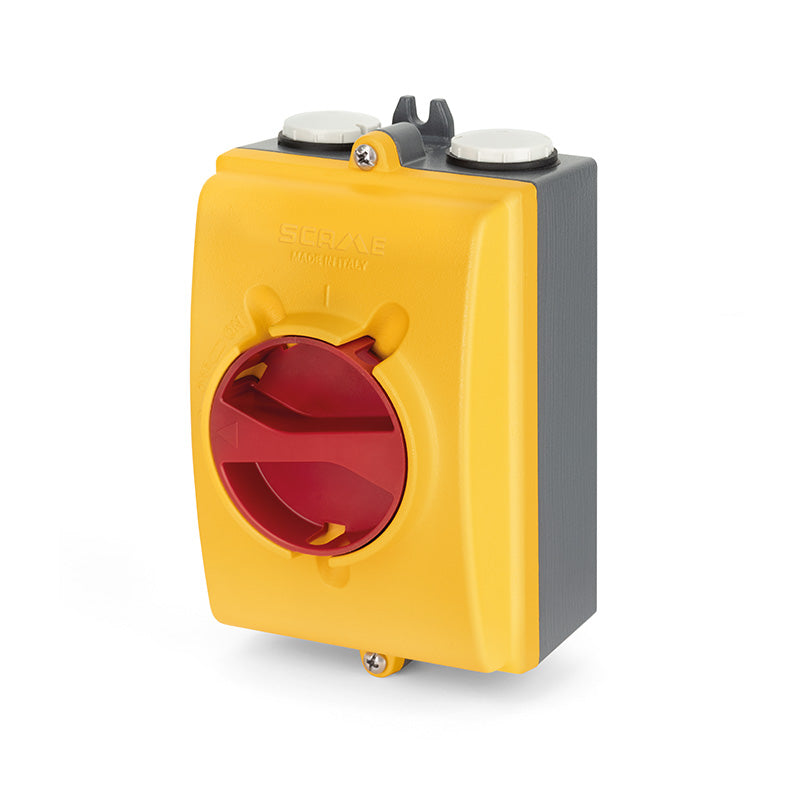

SCAME Switch Disconnector 40A 3P+N LINK IP66 (Emergency - Yellow/Red, High Wiring Capacity)

The ISOLATORS-AL[EVO] Series switch disconnector is built for emergency applications, with a die-cast aluminium enclosure and a highly visible yellow/red handle. This High Wiring Capacity version with neutral link offers a larger enclosure for easier cable termination.

Rated at 40A, it's configured as 3P+N LINK with an unswitched neutral (solid neutral terminal block) and a Y1-H switch size, rated up to 690V. It carries a high IP66 protection rating together with IK10 impact resistance.

The unit features a lockable door interlock and a handle that can be padlocked in the OFF position for up to three padlocks. Cable entry is via an open threaded entry with cap and cable sleeve for a clean, sealed termination.
