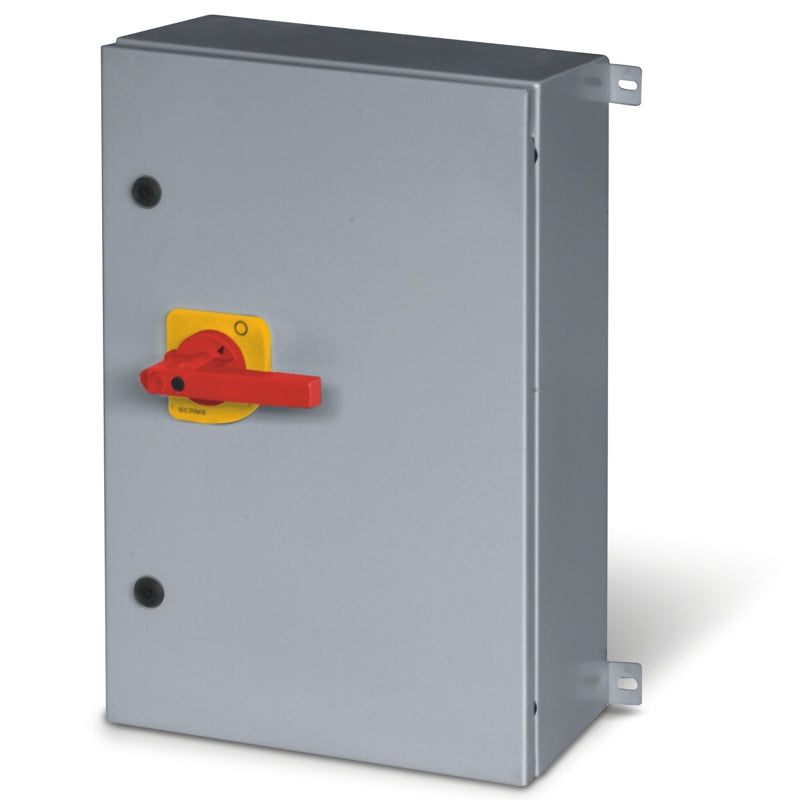

SCAME Switch Disconnector 315A 3P+SN IP65 (Emergency - Yellow/Red)

The ISOLATORS-HR Series switch disconnector is engineered for emergency applications requiring heavy-duty load isolation in a robust metal enclosure. Built to withstand demanding industrial environments, it offers IP65 ingress protection and IK10 impact resistance.

Finished in high-visibility yellow/red, the unit features a door interlock and a handle padlockable in the OFF position for up to three padlocks. Configured with 3P+N LINK poles and an unswitched neutral (solid neutral terminal block), it is rated for 315A and operates efficiently at 315A in AC23A (415V), with a rated voltage of 690V. This is an exclusive product customized for the Australian market.

Key Features

• Rated Current: 315A (Ithe 400A)
• Poles: 3P+N LINK (unswitched neutral)
• Enclosure: Metal, surface mount
• Protection: IP65, IK10 impact rating
• Switch Size: K3
• Dimensions: 400 x 600 x 200 mm
• Handle: Yellow/Red, padlockable OFF (3 padlocks)
• Features: Door interlock, gland plate cable entry (bottom), top/bottom connection
