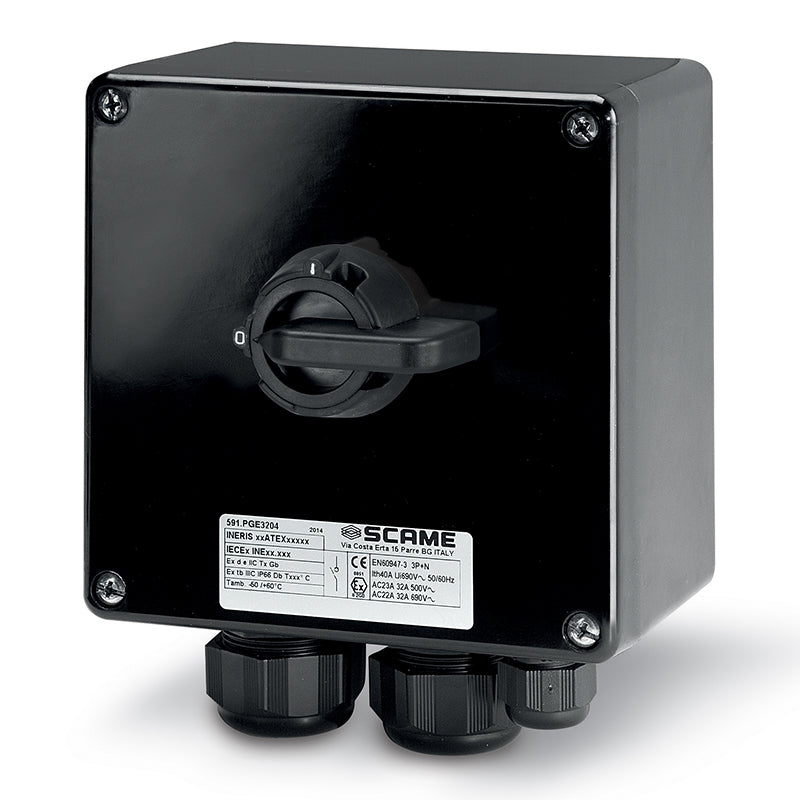

SWITCH DISCONNECTOR 25A 3/4P IP66 160x160x90mm II 2GD GENERAL GREY/BLACK GW 960°C

Commercial Series

ISOLATORS-EX[GD] Series

Synthetical description

SWITCH DISCONNECTOR

Material

ENGINEERING PLASTIC

Protection degree IP

IP66

Type

GENERAL

Colour

GREY/BLACK

Rated current

25A

Poles

3/4P

Dimensions

160x160x90mm

Cable entry

2xM25

Cable size

ø10-14mm

GLOW WIRE

GW 960°C

Group and categories EX

II 2GD

Ambient temperature Ta min

-35 °C

Ambient temperature Ta max

60 °C

Rated insulation voltage (Ui)

690VAC

Current (Ie) in AC22A (690V)

25A

Current (Ie) in AC23A (500V)

25A

Current (Ie) in AC3 (500V)

25A

Terminals - Flexible wires

10mm²

Terminals - Rigid wires

16mm²

Terminals tightening torque

0,8Nm

Catalogue notes

Handle padlockable in OFF (3 padlocks) and ON (1 padlock) position

ATEX [ATmosphères EXplosibles]: for applications in potentially explosive atmospheres.
