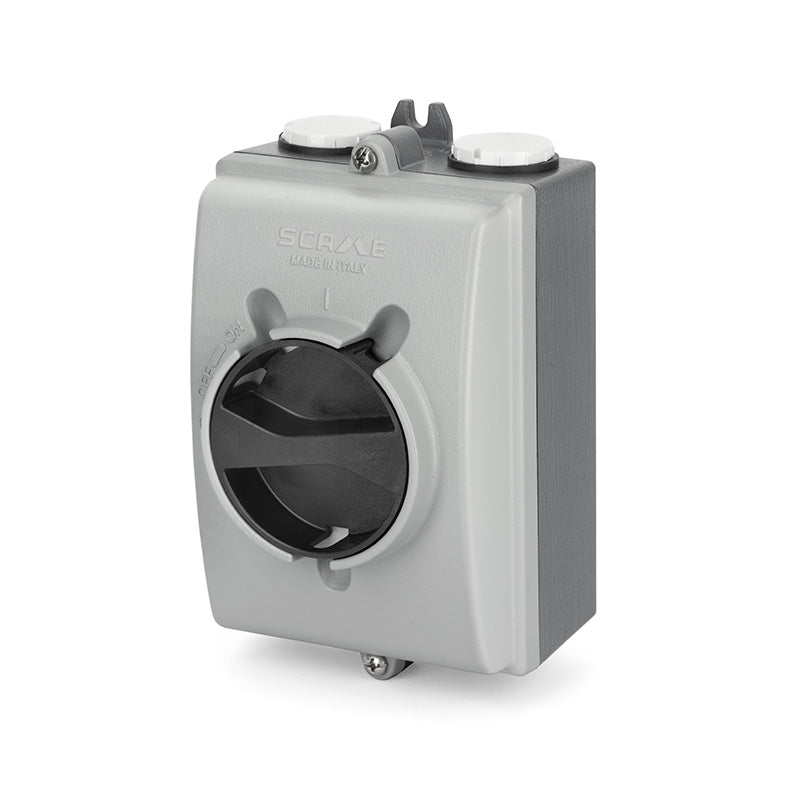

SCAME Switch Disconnector 20A 3P+N LINK IP66 (General - Grey/Black, High Wiring Capacity)

The ISOLATORS-AL[EVO] Series switch disconnector is built for general-purpose industrial use, with a die-cast aluminium enclosure and a grey/black handle for a clean, professional finish suited to commercial and industrial switchboards. This High Wiring Capacity version with neutral link offers a larger enclosure for easier cable termination.

Rated at 20A and operating efficiently at 20A under AC23A (415V) conditions, it's configured as 3P+N LINK with an unswitched neutral (solid neutral terminal block) and a Y1 switch size, rated up to 690V. It carries a high IP66 protection rating together with IK10 impact resistance.

The unit features a lockable door interlock and a handle that can be padlocked in both the OFF position (up to three padlocks) and the ON position (one padlock). Cable entry is via an open threaded entry with cap and cable sleeve for a clean, sealed termination.
