SCAME Isolator Switch 160A 3P+N IP65 — Emergency

Name: SCAME Isolator Switch 160A 3P+N IP65 — Emergency
Brand: SCAME PARRE S.P.A
SKU: 590.EM16015
Price: 1771.95 AUD
Availability: InStock

$1,771.95 AUD

Tax included. Shipping calculated at checkout

Description

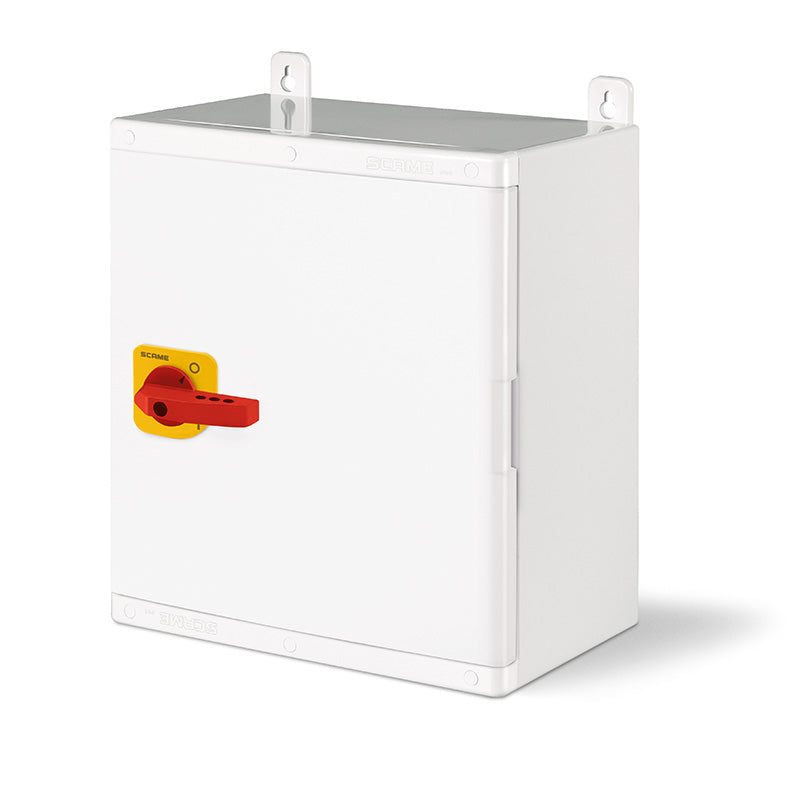

The SWITCH DISCONNECTOR ISOLATORS-TP Series is designed for emergency applications, featuring a durable construction of engineering plastic. It includes a handle in yellow/red for enhanced visibility. This device supports a rated current of 160A and operates efficiently at 160A in AC23A (415V). It is rated for a voltage of 690V and offers a protection degree of IP65, with an impact resistance of IK08. The switch disconnector is configured with 3P+N poles and a K2 switch size, suitable for surface mounting. It features a door interlock and a padlockable handle in both OFF (up to three padlocks) and ON (one padlock) positions, along with a late break and early make neutral pole.

SKU: 590.EM16015

In stock

Quantity:

Free Standard Shipping

Eligible for Free Shipping Australia Wide on orders above AU$249
*Excludes Large and Bulky Items

SCAME PARRE S.P.A SCAME Isolator Switch 160A 3P+N IP65 — Emergency

$1,771.95 AUD

Product specifications

YOUR SELECTED MODEL

590.EM16015

The specifications below belong to this product. Use them to confirm the current, pole configuration, protection rating and enclosure dimensions required for your installation.

Download datasheet

Rated current at AC22A

160A

Rated voltage

690V

Poles

3P+N

Protection degree IP

IP65

Protection degree IK

IK08

Material

Engineering plastic

Colour

Yellow/Red

Mounting version

SURFACE MOUNTING

ISOLATORS-TP

Built for demanding installations

From compact machine isolation to high-current switching, the ISOLATORS-TP range brings together a tough thermoplastic enclosure, a clear operating handle and practical wiring access.

Choose from general-use and emergency-use versions across the 16A–250A catalogue range, with pole configurations to suit the installation.

Protection matched to the model. Standard surface enclosures offer IP66/IP69; K2 hinged-door models are IP65. Other configurations have different ratings—refer to this product’s specifications.

YouTube thumbnail — Scame ISOLATORS-TP Series (English)

ISOLATORS-TP IN ACTION

A closer look at the range

See the ISOLATORS-TP design in action, from the recessed, high-visibility operating handle to the practical enclosure details.

The range combines protected control, accessible wiring space and flexible mounting options for industrial installations.

SCAME ISOLATORS-TP construction details numbered 01 to 09

MAIN CHARACTERISTICS

Designed around the details

01 · Door locking with handle in the ON position

02 · Recessed XXL handle to prevent breakage due to accidental impacts

03 · AC23 switch with the possibility of double auxiliary contact

04 · Handle padlockable in the OFF position (emergency use) and ON and OFF positions (general use)

05 · High visibility handle and plate

06 · Knockout cable entries

07 · Reversible base

08 · External and integrated fixing points

09 · Blank side with drilling point marks

Characteristics shown apply to the standard surface-mounting version illustrated. K2 hinged-door models have blank cable-entry sides and lock in the OFF position only.

SELECT THE RIGHT VERSION

More room when wiring demands it

Standard surface mounting
Compact thermoplastic enclosures with Class II double insulation. Standard 20A–100A versions provide IK09 impact resistance; 125A–160A surface versions are IK08.

High wiring capacity · .W
The same switch in the next enclosure size up gives larger cable radii and more internal wiring space. Select the .W version where additional room is needed.

How to read a part number

590.GE·63·05·.SN

590.

Prefix

SCAME article

GE

Version

GE = general use
EM = emergency use
EL = special high visibility
CGE / CEM = EMC connection
GR / ER = OMNIA flush mounting

63

Current

16 to 250
amps (AC22A, 415V)

05

Poles

02 / 12 = 2P
03 / 13 = 3P
05 / 15 = 4P (3P+N)
06 = 6P 08 = 8P
22 = 1P+SN (Y01)

12 / 13 / 15 identify size Y1 and the 160A K2.

.SN

Suffix

.SN unswitched neutral — solid neutral terminal block

.W high wiring capacity (.WSN combined)

-P 40A Y1-P performance switch, 22kW

Emergency vs General handleColours & locking positions

The GE and EM versions use different handle colours and padlocking arrangements. Match the version to your installation requirements.

TP handle comparison
Feature	General use · GE	Emergency use · EM
Handle & plate	Black handle with grey plate	Red handle with yellow plate for high visibility
Standard versions: OFF locking	Up to 3 padlocks	Up to 3 padlocks
Standard versions: ON locking	1 padlock	Not padlockable in ON
K2 hinged-door versions	OFF locking only, up to 3 padlocks	OFF locking only, up to 3 padlocks

Both versions have door locking with the switch in the ON position. This enclosure interlock is separate from padlocking the operating handle. Check the selected model's datasheet for its ratings and configuration.

Auxiliary contactsMatch your switch size

Match the accessory to the switch size—not just the current rating. Up to two auxiliary contacts can be fitted per switch. Contact our team to confirm the contact arrangement and availability.

Auxiliary contacts by switch size
Switch size	Part number & description
Y1 · 20A–40A	590.PL004005 NO/NC auxiliary contact with break before the main contacts. For Y1 switch sizes.
Y2 · 63A–80A	590.PL004006 NO/NC auxiliary contact with break before the main contacts. For Y2 switch sizes.
Y3 · Y4 · Y5	590.PL005 NO/NC auxiliary contact with break before the main contacts. For the Y3, Y4 and Y5 switch sizes.
K2 · hinged door	590.PL006011 / 590.PL006021 Auxiliary-contact options for K2 switches. Confirm the required contact arrangement with our team.

Chemical & atmospheric resistanceCheck the environment

SCAME's indicative guide for the thermoplastic enclosure.

Resistant

Saline solution
Diluted acids
Diluted bases
UV rays

Limited resistance

Concentrated acids
Concentrated bases
Hexane
Alcohol
Mineral oil

Not resistant

Benzol
Acetone

Application guidance: SCAME states that chemical-resistance values are indicative. For specific substances and application conditions, contact our technical team before selecting the enclosure.

Cable-entry & enclosure guidePlan the wiring

Match the enclosure dimensions on your product datasheet to the table below. High-wiring-capacity versions use a larger enclosure, so select by dimensions rather than current alone.

Cable-entry provision by enclosure size (mm)
Enclosure dimensions	Top	Bottom	Rear
82 × 120 × 69	1 × M20 + 1 × M25 knock-outs	1 × M20 + 1 × M25 knock-outs	2 × M20 knock-outs
110 × 150 × 87 / 96	2 × M25 max + 1 × M32 max drilling points	2 × M25 knock-outs	1 × M25 knock-out + 2 × M25 max drilling points
160 × 220 × 115	3 × M40 max drilling points	2 × M32 knock-outs	1 × M32 knock-out + 2 × M32 max drilling points
240 × 340 × 137	2 × M63 max + 1 × M16 max drilling points	2 × M50 + 1 × M16 knock-outs	1 × M50 knock-out + 2 × M50 max drilling points
308 × 388 × 128	Blank	Blank	Blank
460 × 520 × 245 (K2)	Blank	Blank	Blank

Knock-outs and drilling points describe the enclosure provision; they do not indicate supplied cable glands. Blank faces require cable-entry preparation. Confirm the exact model before drilling.

Source: SCAME ISOLATORS-TP leaflet ZP01352-EN-0. Ordering: pp. 2–9; chemical resistance: pp. 20 & 23; cable entries: pp. 20 & 24.
