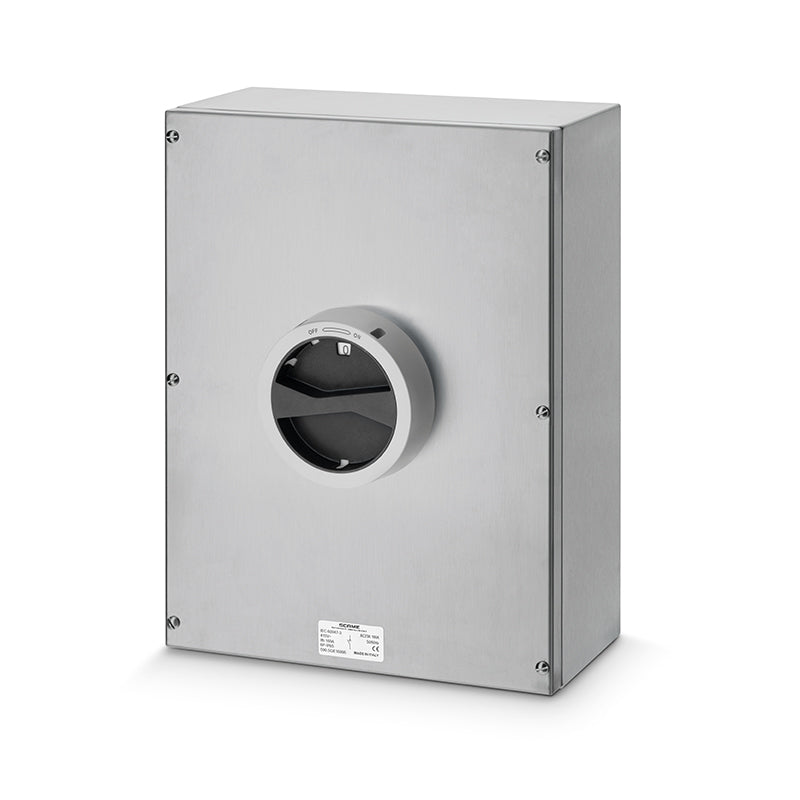

SCAME Switch Disconnector 125A 3P+SN IP65 (General - Grey/Black)
Tax included. Shipping calculated at checkout
Eligible for Free Shipping Australia Wide on orders above AU$249
*Excludes Large and Bulky Items
SCAME Switch Disconnector 125A 3P+SN IP65 (General - Grey/Black)
Sale price$1,856.99 AUD
Tech Specs
Product specification
Commerical Series
ISOLATORS-INOX Series
Synthetical Description
SWITCH DISCONNECTOR
Mounting Version
SURFACE MOUNTING
Rated Current
125A
Rated Voltage
690V
Poles
3P+N LINK
Colour
GREY/BLACK
Material
STAINLESS STEEL [AISI304L]
Protection Degree IP
IP65
Protection Degree IK
IK10
Switch Size
Y5
Rated insulation voltage (Ui)
690VAC
Rated impulse voltage (Uimp)
8kV
Thermal current (Ithe)
160A
Current (Ie) in AC21A (415V)
160A
Current (Ie) in AC21A (500V)
160A
Current (Ie) in AC21A (690V)
160A
Current (Ie) in AC22A (415V)
125A
Current (Ie) in AC22A (500V)
125A
Current (Ie) in AC22A (690V)
125A
Current (Ie) in AC23A (415V)
125A
Current (Ie) in AC23A (500V)
125A
Current (Ie) in AC23A (690V)
125A
Power AC23A (415V)
55kW
Short-time current
3kA Icw(1s)
Conditional short circuit cur.
50kAeff
Terminals - Flexible wires
10-70mm²
Terminals - Rigid wires
10-70mm²
Notes
Product downloads
Access technical specifications, installation guides, and product documentation.
Product Datasheet
Download
