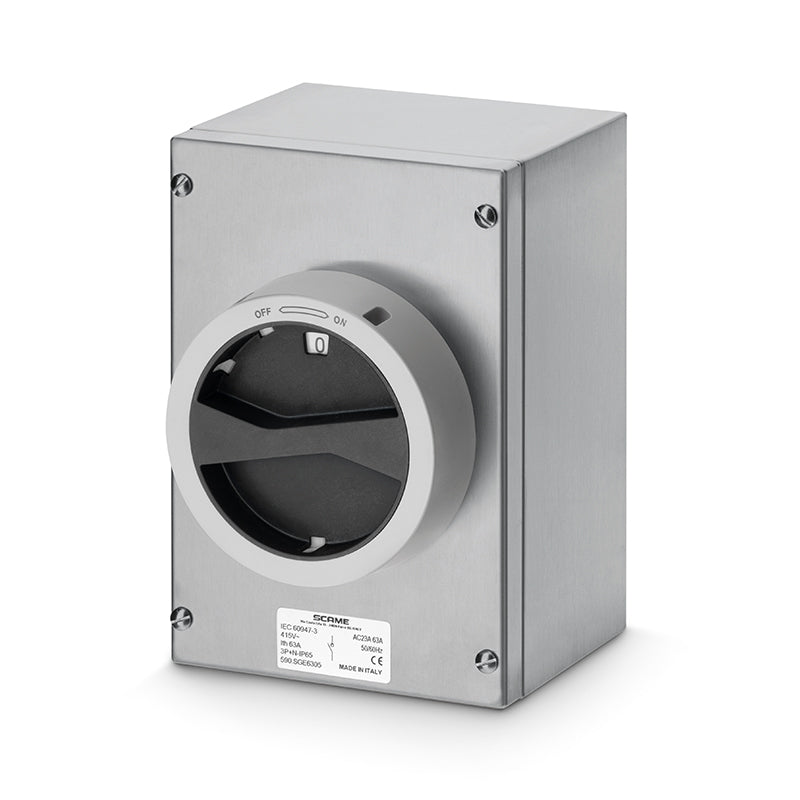

SCAME Switch Disconnector 100A 3P+SN IP65 (General - Grey/Black)
Tax included. Shipping calculated at checkout
Eligible for Free Shipping Australia Wide on orders above AU$249
*Excludes Large and Bulky Items
SCAME Switch Disconnector 100A 3P+SN IP65 (General - Grey/Black)
Sale price$1,235.99 AUD
Tech Specs
Product specification
Commerical Series
ISOLATORS-INOX Series
Synthetical Description
SWITCH DISCONNECTOR
Mounting Version
SURFACE MOUNTING
Rated Current
100A
Rated Voltage
690V
Poles
3P+N LINK
Colour
GREY/BLACK
Material
STAINLESS STEEL [AISI304L]
Protection Degree IP
IP65
Protection Degree IK
IK10
Switch Size
Y4
Rated insulation voltage (Ui)
690VAC
Rated impulse voltage (Uimp)
8kV
Thermal current (Ithe)
125A
Current (Ie) in AC21A (415V)
125A
Current (Ie) in AC21A (500V)
125A
Current (Ie) in AC21A (690V)
125A
Current (Ie) in AC22A (415V)
100A
Current (Ie) in AC22A (500V)
100A
Current (Ie) in AC22A (690V)
100A
Current (Ie) in AC23A (415V)
100A
Current (Ie) in AC23A (500V)
63A
Current (Ie) in AC23A (690V)
63A
Power AC23A (415V)
45kW
Short-time current
1,5kA Icw(1s)
Conditional short circuit cur.
30kAeff
Terminals - Flexible wires
10-50mm²
Terminals - Rigid wires
10-50mm²
Notes
Product downloads
Access technical specifications, installation guides, and product documentation.
Product Datasheet
Download
