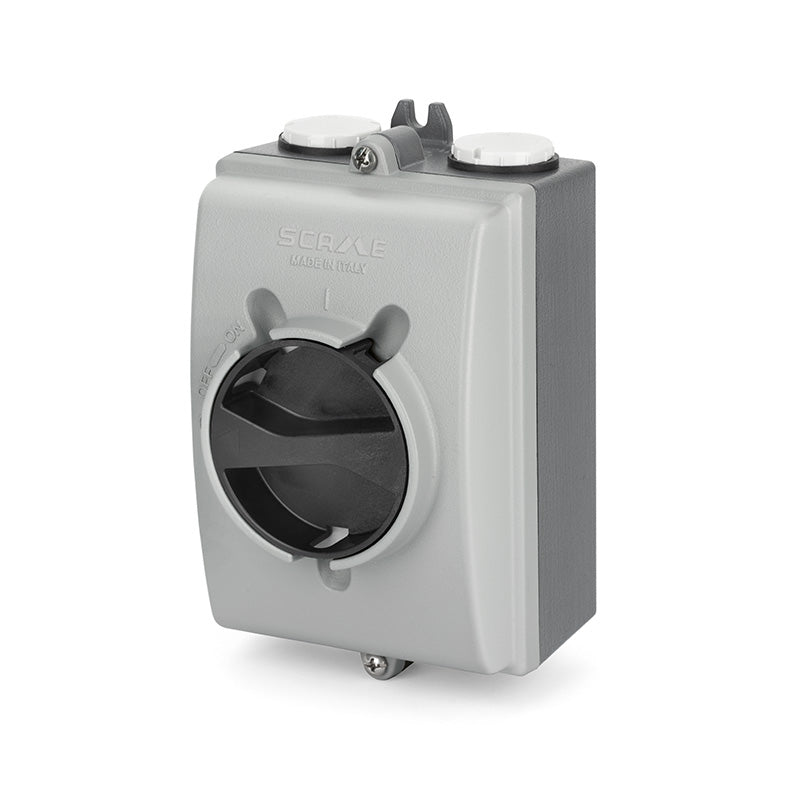

SCAME Switch Disconnector 100A 3P+N LINK IP66 (General - Grey/Black)

The ISOLATORS-AL[EVO] Series switch disconnector is built for general-purpose industrial use, with a die-cast aluminium enclosure designed to handle demanding environments. The grey/black handle gives it a clean, professional finish suited to commercial and industrial switchboards.

Rated at 100A and operating efficiently at 100A under AC23A (415V) conditions, it's configured as 3P+N LINK with an unswitched neutral (solid neutral terminal block) and a Y4 switch size, rated up to 690V. It carries a high IP66 protection rating together with IK10 impact resistance — making it well suited to exposed or harsh-duty installations across the Australian market.

The unit features a lockable door interlock and a handle that can be padlocked in both the OFF position (up to three padlocks) and the ON position (one padlock). Cable entry is via an open threaded entry with cap and cable sleeve for a clean, sealed termination.
