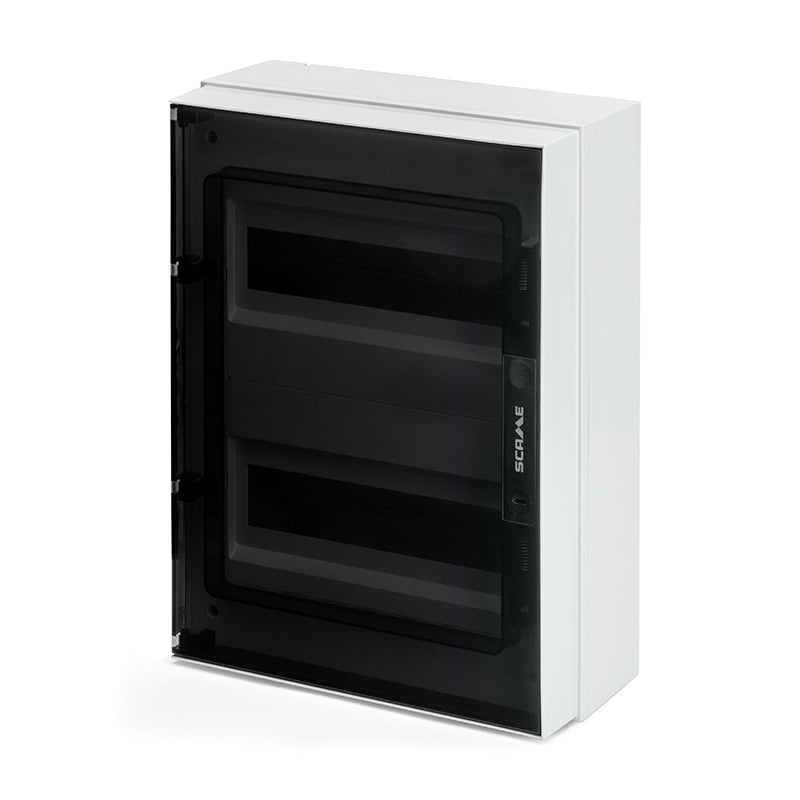

SCAME IKONA Consumer Unit 24 DIN 24+2 Module IP66 (Grey)

IKONA Series

Premium Design Meets Industrial Performance

Watertight & Built for Harsh Environments
Engineered for reliability, IKONA enclosures achieve an IP66 rating, ensuring complete protection against dust and powerful water jets — ideal for industrial and outdoor installations.

High Impact Resistance (IK09 Rated)
The recessed, flush-mounted door design protects against lateral impacts, delivering superior durability in high-traffic or demanding environments.

Premium Flat Smoked Door Design
A distinctive, completely flat tinted door with a concealed opening mechanism and automatic spring return offers:

• Clean, modern appearance

• Reduced dust and dirt accumulation

• Optional Yale key locking for added security

Designed for Practical Installation

Full 180° Door Opening
Reversible hinges allow the door to open in either direction, with a full 180° angle for maximum accessibility during installation and maintenance.

Quick Access Internal Components
Snap-fit DIN rail covers can be removed without dismantling the entire front, simplifying servicing and upgrades.

Adjustable DIN Rails
Flexible mounting with depth and height adjustment accommodates both standard and non-standard modular devices.

Integrated Spirit Level
Ensures fast, accurate installation every time.

Optimised Cable Management
Built-in slots provide secure anchoring points for cable ties, keeping wiring neat and organised.

IKONA Series

Available Configurations

The IKONA Series is available in a wide range of sizes to suit any installation:

• Single Row: 8, 12(+1), 18(+1) modules
• Double Row: 24(+2), 36(+2) modules
• Triple Row: 54(+3) modules
• Quad Row: 72(+4) modules (with split dual-door design)
