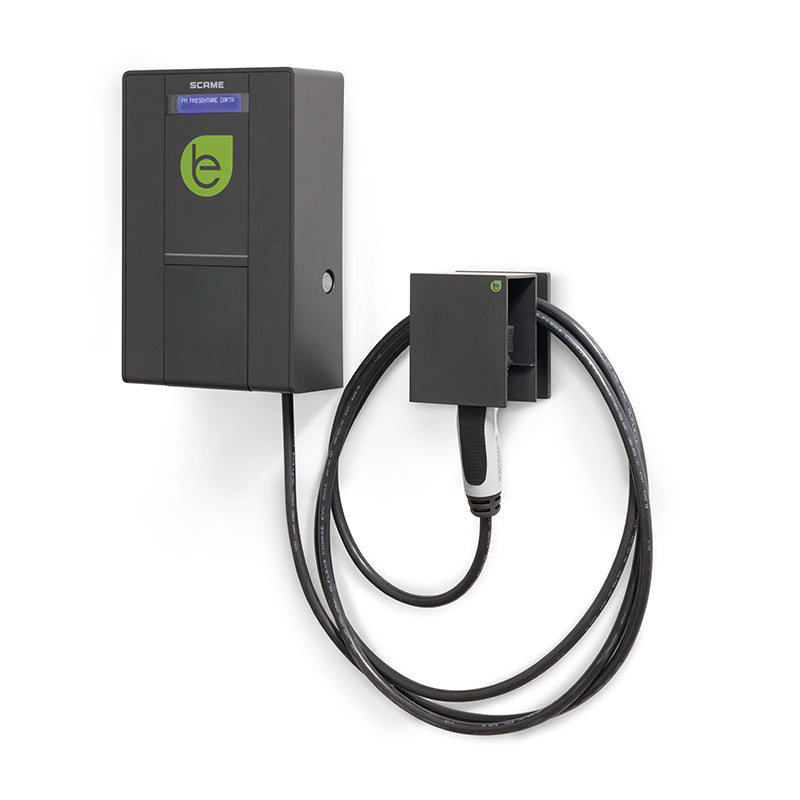

BE-W Wall Box Type2 Cable Socket

• BE-W Series

• WALL BOX CABLE+SOCKET T2

• Rated voltage 230V
• Complete with cable support.

Tech Data Emobility

EV standard

• Type 2 1P+N+E 32A 230V~ 7,4kW

• LCD 2x20 char
• RFID authentication

• Ethernet Connectivity
• OCPP 1.6 JSON Communication protocol


EV functions

• charge in mode 3 with pwm circuit pilot
• predisposition for serial communication
• energy metering and current consumption
• identification of authorized user
• working in mode stand-alone free or personal
• protection against overcurrents and electric shock
• interfacing with OCPP Central Station
• power contactor aperture monitoring

EV equipment

• 1 power supply 24Vdc 36W
• 1 fuse holder 1P+N gG 4A
• 1 DC Leakage detector
• 1 control card
• 1 stop charge push-button (mode free)
• 1 lcd display 2x20 rows backlight
• 1 RBG led stripes
• 1 reader RFID 13,56MHz
• 1 local server wired with OCPP 1.6J protocol
• 1 modular contactor 2P 40A 24Vdc
• 1 circuit breaker 1P+N C40 30mA ist. A
• 1 digital energy meter 1P+N 40A
• 1 cable holder in technopolymer
• 1 terminal strip 3x10mm²
• 1 shunt trip release 24Vdc
• 1 cable 3G6+1x0,5mm² 4m
