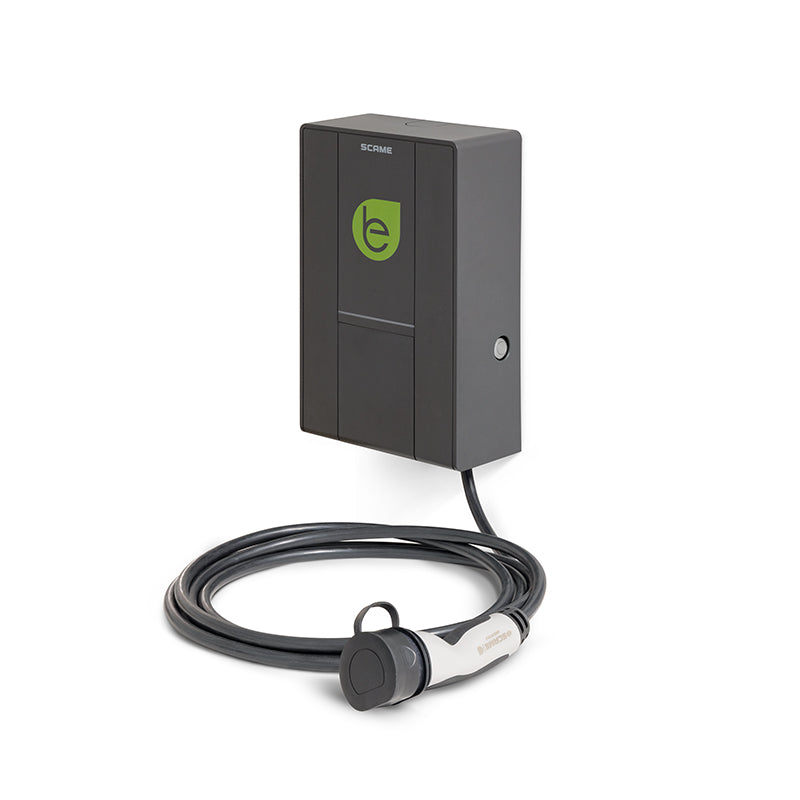

BE-W WALL BOX CABLE+SOCKET T2 22kW

• BE-W Series

• WALL BOX CABLE+SOCKET T2

• Rated voltage 400V
• Complete with cable support.

Tech Data Emobility

EV standard

• Type 2 3P+N+E 32A 400V~ 22kW
• LCD 2x20 char
• RFID authentication

• 400V

EV functions

• charge in mode 3 with pwm circuit pilot
• predisposition for serial communication
• energy metering and current consumption
• identification of authorized user
• working in mode stand-alone free or personal
• power contactor aperture monitoring


EV equipment

• 1 terminal strip 5x10mm²
  1 power supply 24Vdc 36W
  1 fuse holder 1P+N gG 4A
  1 DC Leakage detector
  1 control card
  1 stop charge push-button (mode free)
  1 RBG led stripes
  1 lcd display 2x20 rows backlight
  1 reader RFID 13,56MHz
  1 modular contactor 4P 40A 24Vdc
  1 cable holder in technopolymer
  1 digital energy meter MID 3P+N 80A
  1 cable 5G6+1x0,5mm² 4m

Downloads:

• Technical Sheet 7.4Kw
• Technical Sheet 22Kw
