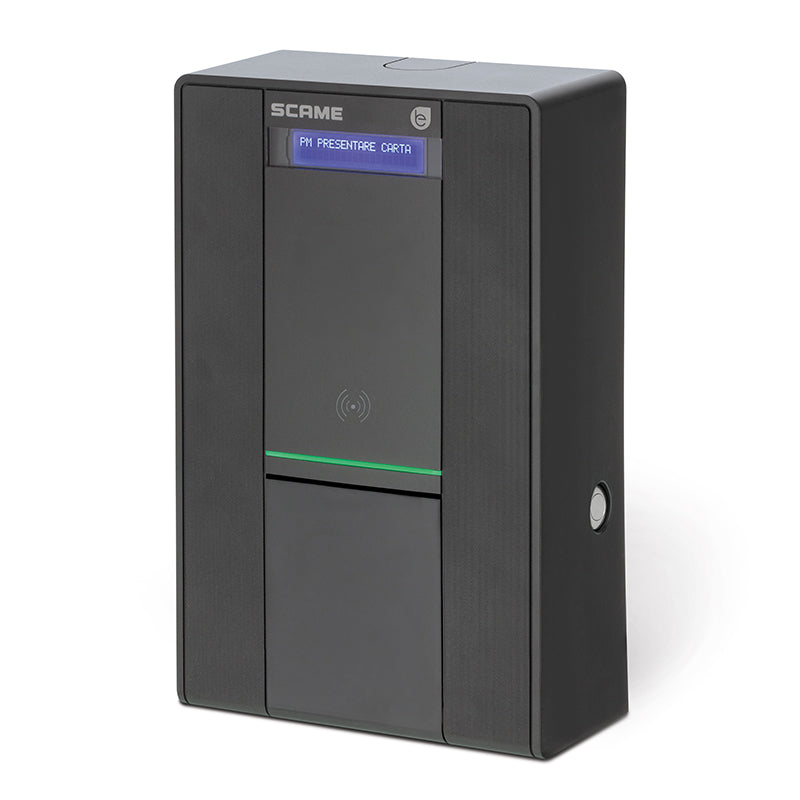

BE-W PRO WALL BOX TYPE 2 32A 22kW IP55 IK10 OCPP 1.6 JSON

• BE-W[2.0] Series

• WALL BOX 1 SOCKET TYPE 2

• Rated voltage 400V


Tech Data Emobility

EV standard

• Type 2 3P+N+E 32A 400V~ 22kW

• LCD 2x20 char
• RFID authentication

• Wifi, GSM, Ethernet Connectivity
• OCPP 1.6 JSON Communication protocol


EV functions

• charge in mode 3 with pwm circuit pilot
• predisposition for serial communication
• energy metering and current consumption
• identification of authorized user
• working in mode stand-alone free or personal
• protection against direct contact Safety Child Shutters
• identification of connected cord-set size
• interfacing with OCPP Central Station
• managing of latching system
• POWER MANAGEMENT function embedded
• Load Balancing function
• wireless connection to web

EV equipment

• 1 terminal strip 5x10mm²
• 1 power supply 24Vdc 36W
• 1 fuse holder 1P+N gG 4A
• 1 DC Leakage detector
• 1 control card
• 1 RBG led stripes
• 1 stop charge push-button (mode free)
• 1 lcd display 2x20 rows backlight
• 1 reader RFID 13,56MHz
• 1 backup battery
• 1 local server wired with OCPP 1.6J protocol
• 1 modular contactor 4P 40A 24Vdc
• 1 router Wi-Fi/4G
• 1 digital energy meter MID 3P+N 80A

• upstream protections (by the installer):
• 1 circuit breaker 3P+N ≥ C32 / 30mA ist. A
• 1 shunt trip release 24Vdc
