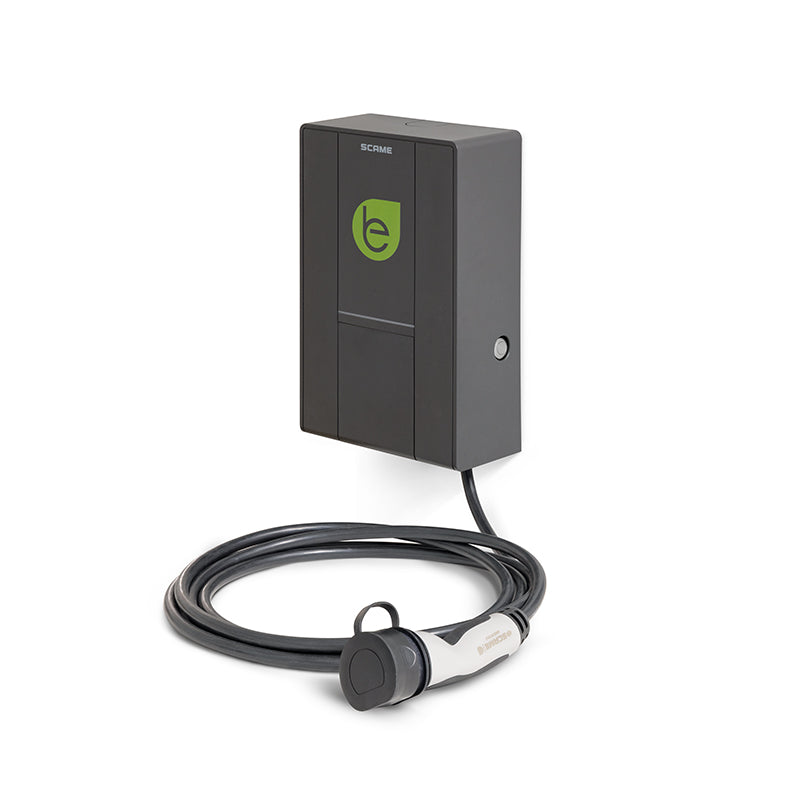

BE-W SERIES WALL BOX CABLE+SOCKET T2 22kW OCPP 1.6 JSON

• BE-W Series

• WALL BOX 1 SOCKET TYPE 2

• Rated voltage 400V


Tech Data Emobility

EV standard

• Type 2 1P+N+E 32A 230V~ 22kW
• LCD 2x20 char
• RFID authentication

• Ethernet Connectivity
• OCPP 1.6 JSON Communication protocol


EV functions

• charge in mode 3 with pwm circuit pilot
  predisposition for serial communication
  energy metering and current consumption
  identification of authorized user
  working in mode stand-alone free or personal
  interfacing with OCPP Central Station
  power contactor aperture monitoring

EV equipment

• • 1 terminal strip 5x10mm²
    1 power supply 24Vdc 36W
    1 fuse holder 1P+N gG 4A
    1 DC Leakage detector
    1 control card
    1 stop charge push-button (mode free)
    1 RBG led stripes
    1 lcd display 2x20 rows backlight
    1 reader RFID 13,56MHz
    1 local server wired with OCPP 1.6J protocol
    1 modular contactor 4P 40A 24Vdc
    1 cable holder in technopolymer
    1 digital energy meter MID 3P+N 80A
    1 cable 5G6+1x0,5mm² 4m



• upstream protections (by the installer):
  1 circuit breaker 3P+N C40 30mA ist. A
  1 shunt trip release 24Vdc
