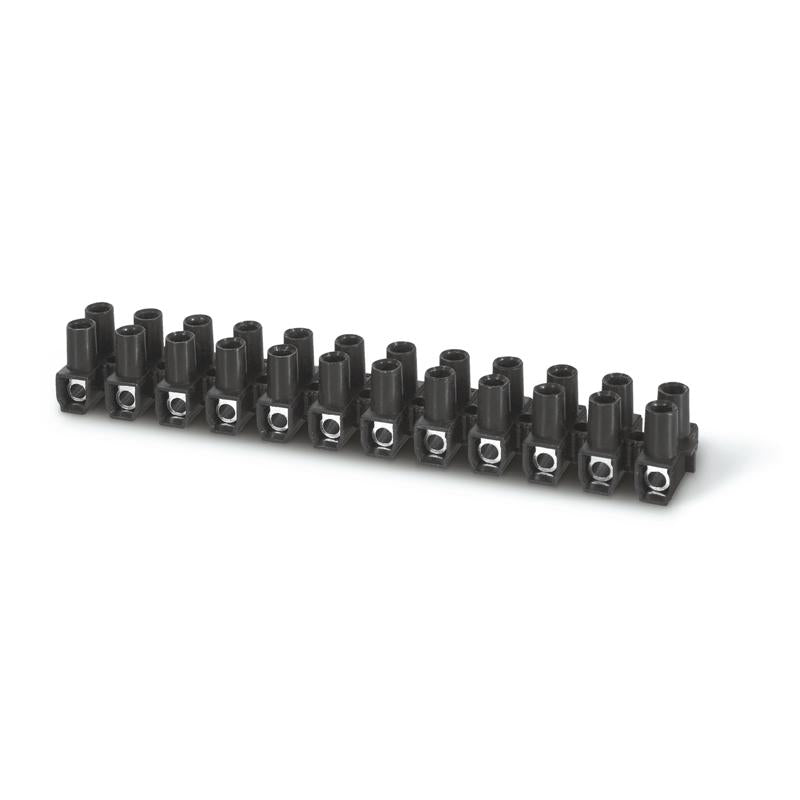

815.2362 Scame Connecto Terminal Block T85 4mm²

The CONNECTO Series Terminal Block T85 (Cod. 815.2362) is a durable and efficient solution for electrical connections. With a 4mm² wire capacity, it ensures reliable conductivity for various wiring applications. Its black color provides a sleek and professional look, suitable for industrial and commercial use.

Crafted from high-quality materials, this terminal block offers excellent durability and resistance to environmental factors. It provides a secure and stable connection, reducing the risk of loose or faulty wiring. This makes it an essential component for safe and organized electrical installations.

Tech Data:

• Commercial Series: Connecto Series
• Synthetical description: TERMINAL BLOCK T85
• Connecting capacity: 4mm²
• Rated voltage: 450V
• Pitch: 10mm
• Ø fixing hole: 3.5mm
• Catalogue notes: Self-extinguishing material in compliance with IEC 60695-2-1 standard 850°C.
  Engineering plastic casing
  Max. service temperature - continuous duty: 85°C.
  Nickel-plated brass terminal
  12 poles
  Captive screws of zinc-plated steel


Downloads:

• Technical Sheet
