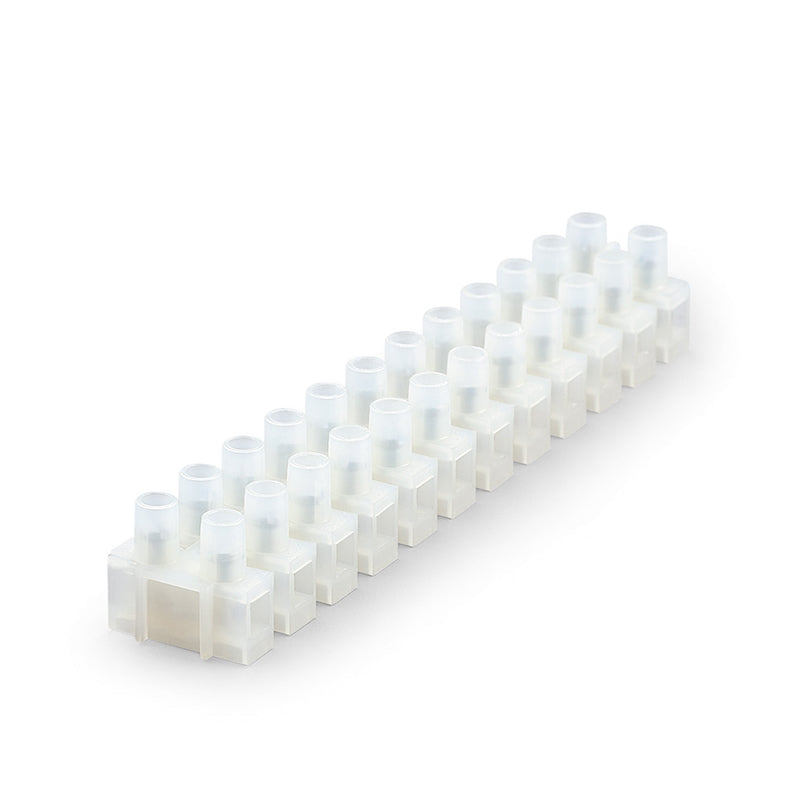

815.1363 Scame Connecto Terminal Block T140 10mm²

The CONNECTO Series Terminal Block T140 (Cod. 815.1363) is a reliable component designed for secure electrical connections. With a 10mm² wire capacity, it ensures efficient conductivity for various wiring applications. Its natural color provides a clean and professional appearance, suitable for electrical panels and enclosures.

Made from high-quality materials, this terminal block offers excellent durability and resistance to wear. It provides a stable and secure connection, reducing the risk of loose wiring. This makes it an essential accessory for safe and organized electrical installations.

Tech Data:

• Commercial Series: Connecto Series
• Synthetical description: TERMINAL BLOCK T140
• Connecting capacity: 10mm²
• Rated voltage: 450V
• Pitch: 11.5mm
• Ø fixing hole: 3.5mm
• Catalogue notes: Max. service temperature - continuous duty: 140°C.
  Self-extinguishing material in compliance with IEC 60695-2-1 standard 850°C.
  Engineering plastic casing
  Brass terminal
  12 poles
  Captive screws of zinc-plated steel
