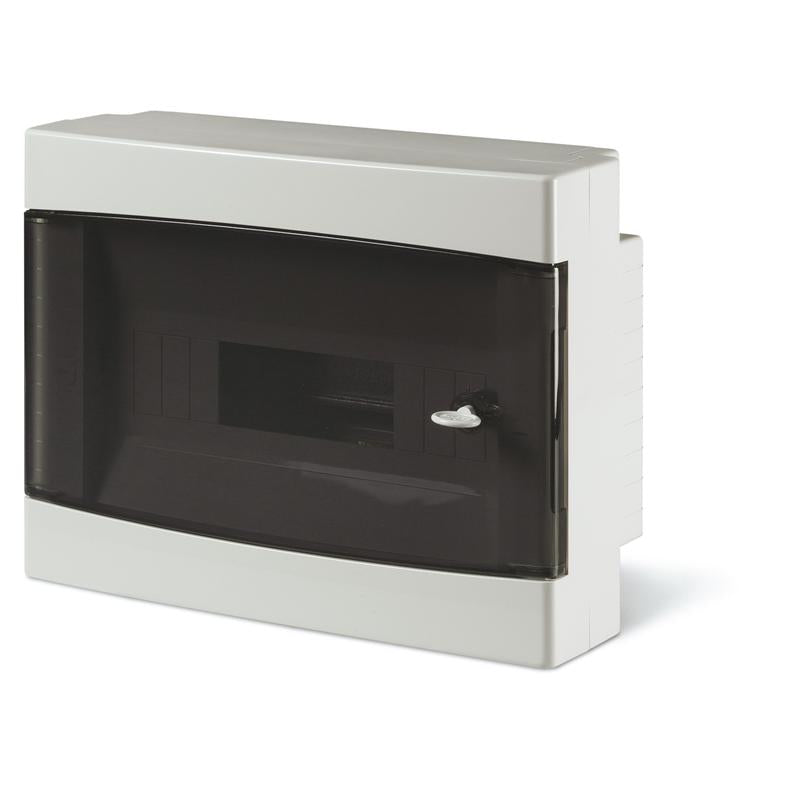

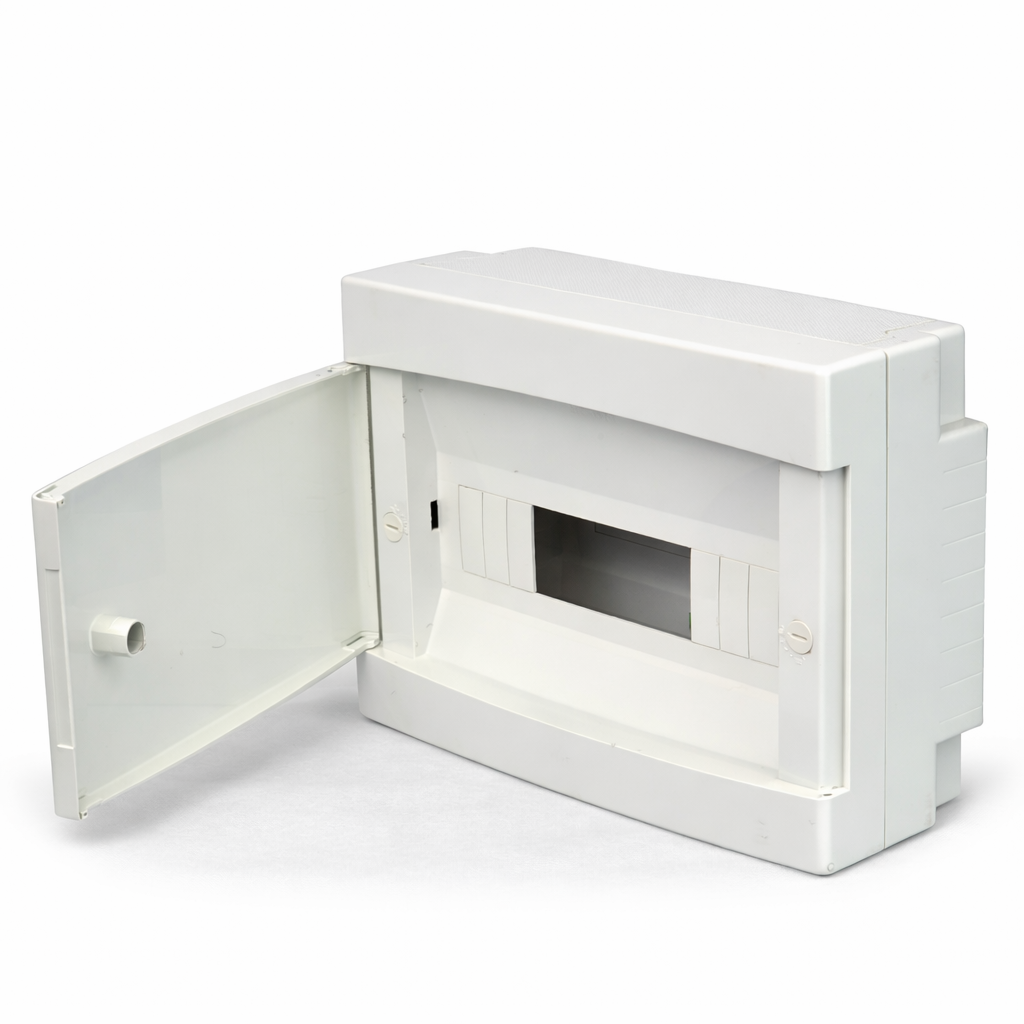

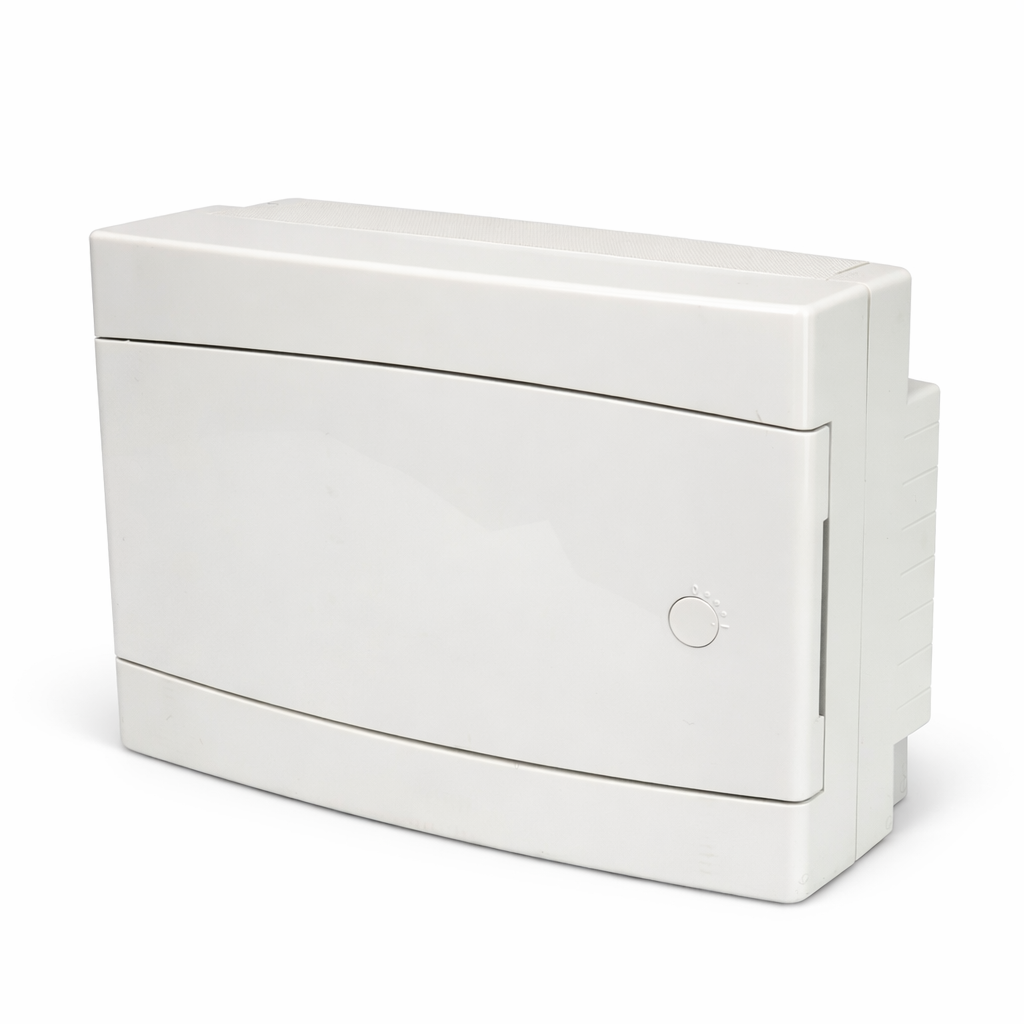

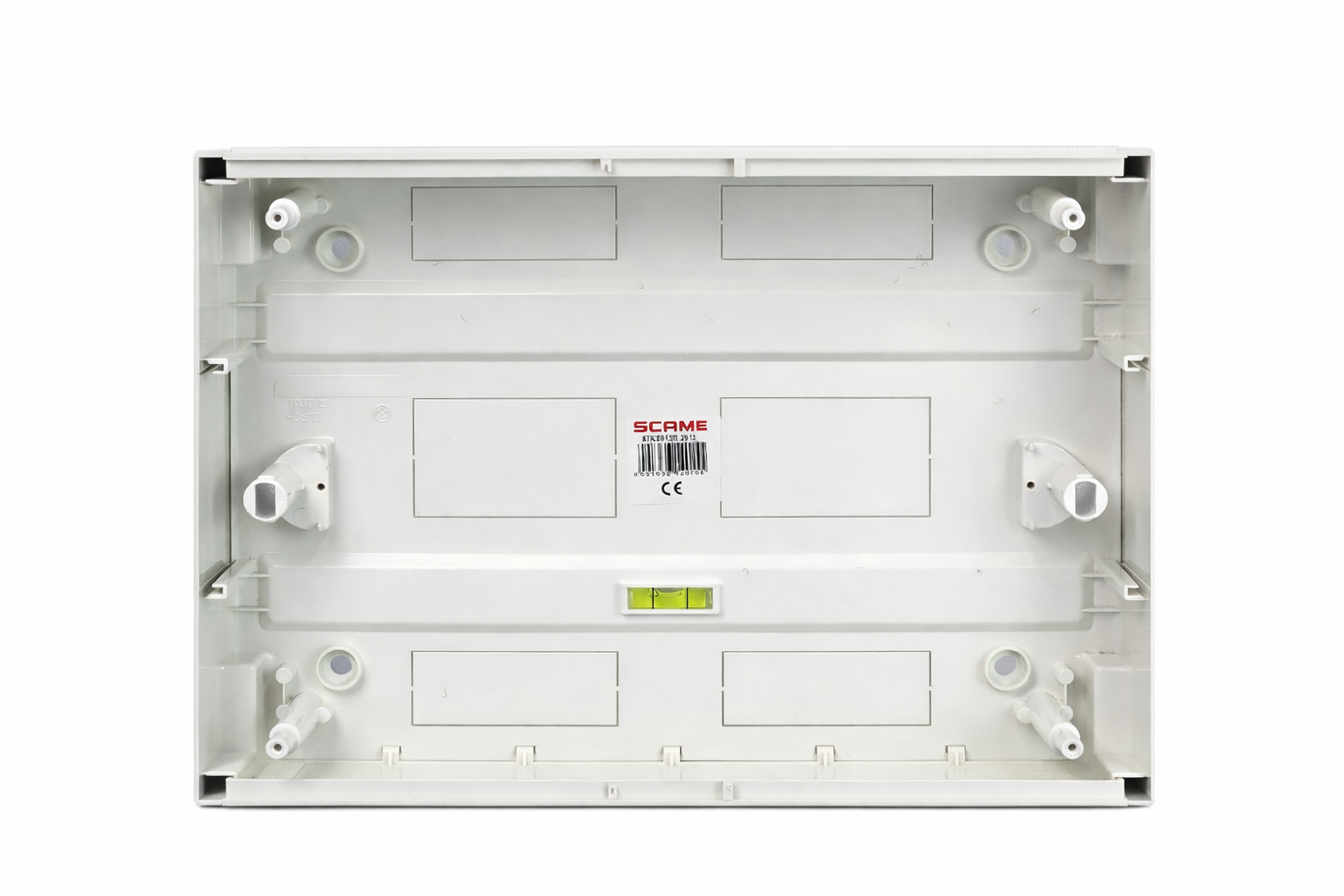

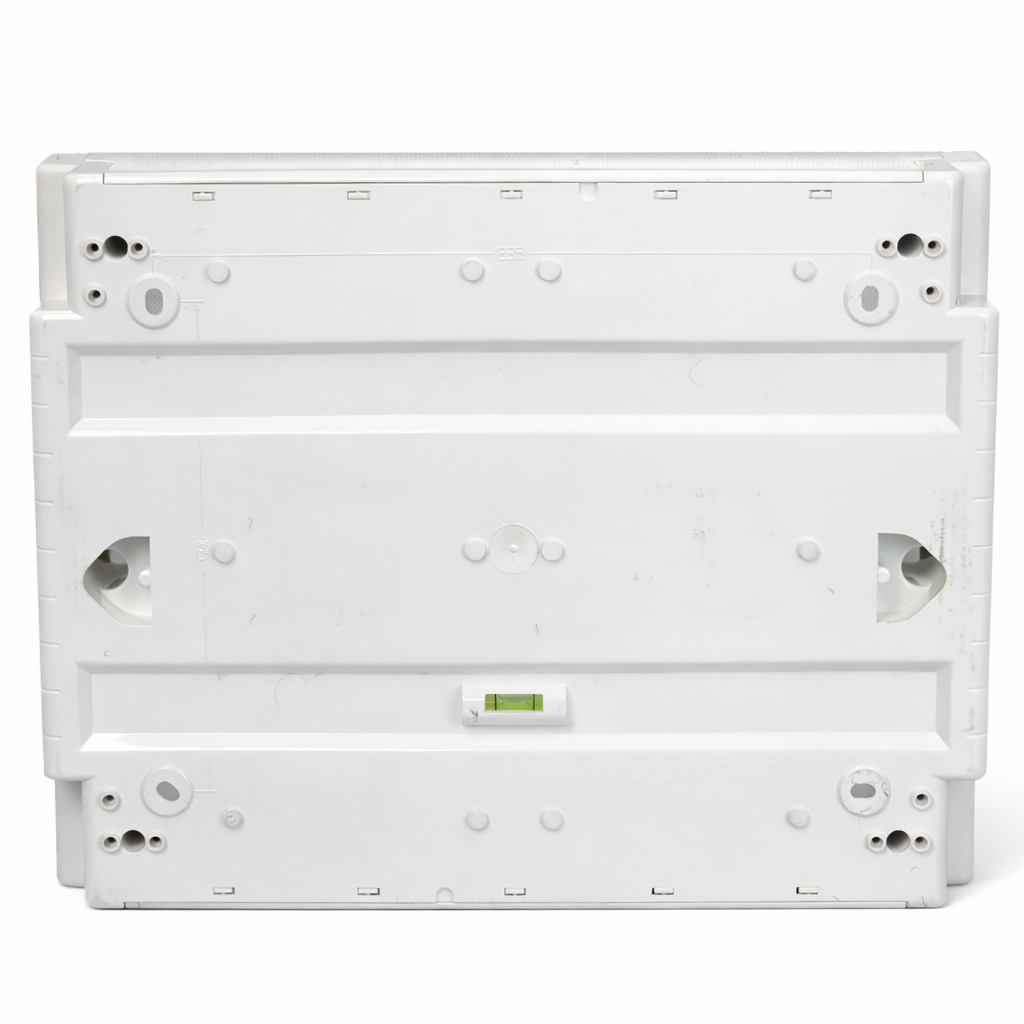

673.2012B.2012 SCAME DOMINO IP40 Surface Consumer Unit 12 DIN 12+1 MOD

The DOMINO IP40 Series Consumer Unit, Code 673.2012B.2012, is built for surface mounting, ensuring quick and hassle-free installation. With an IP40 rating, it provides adequate protection against solid objects, making it ideal for indoor electrical setups. The unit accommodates 12 DIN modules plus one extra slot, allowing versatile circuit arrangements.

With dimensions of 326x250x108mm, this consumer unit features a clean white finish, blending seamlessly into various indoor environments. Its robust construction ensures long-term durability and performance. Designed for both residential and commercial use, it offers secure housing for electrical components.

Tech Data:

• Commercial Series: DOMINO IP66 Series [enclosure]

• Synthetical description: Consumer Unit
• Modularity: 12 DIN
• N.° modules: 12+1 MOD.
• Dissipable power: 24W (48W*)
• Catalogue notes: Power dissipation calculated in conformity with IEC EN 62208 and IEC EN 60670-24 standards

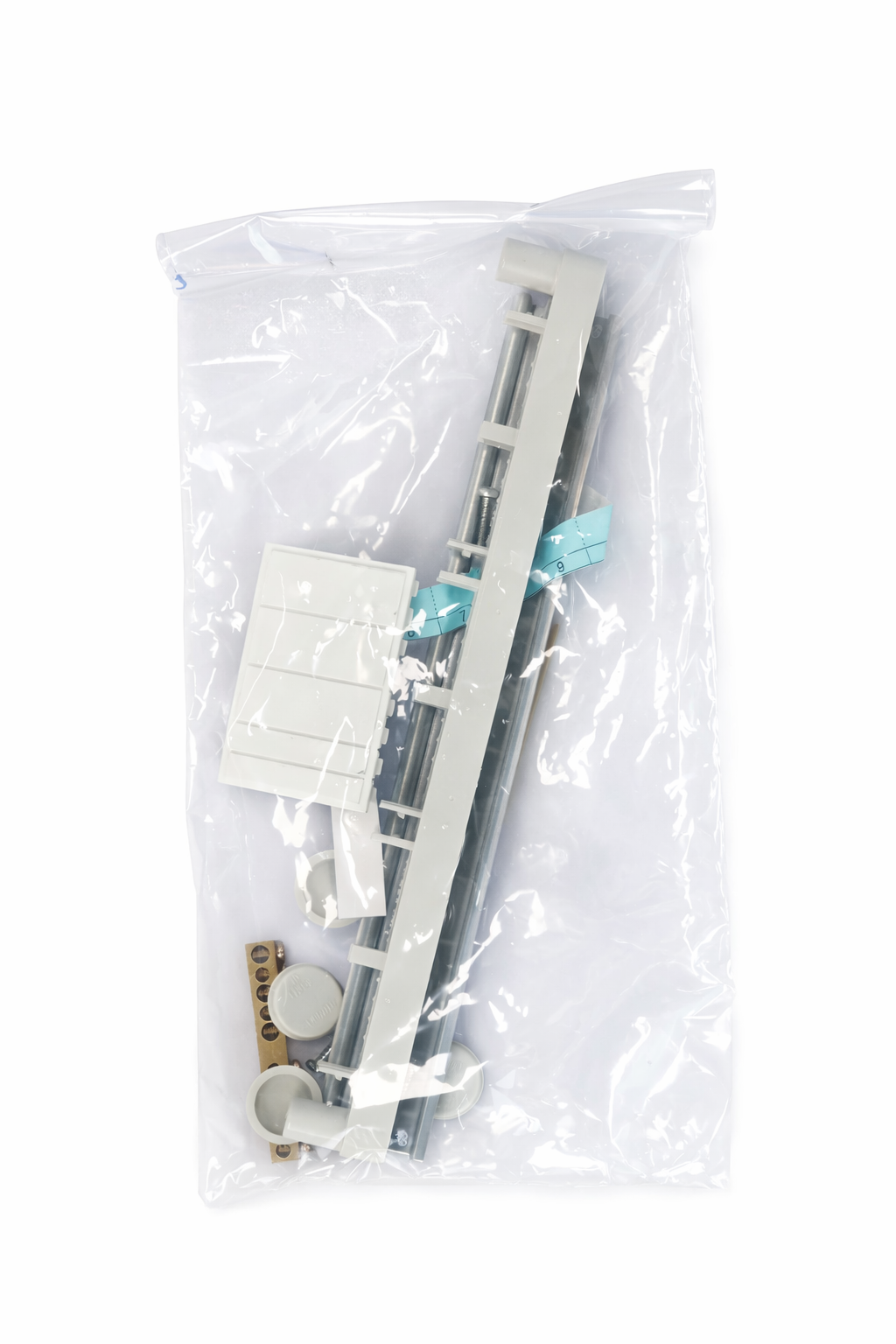

  .2012: white window, without label, without locking kit, with 2 IP00 terminal blocks (5x10mm² - 5x16mm²)
  (*) Power dissipation calculated when 2 consumer units are on top of each other joined by specially designed accessories.


Downloads:

• Technical Sheet
