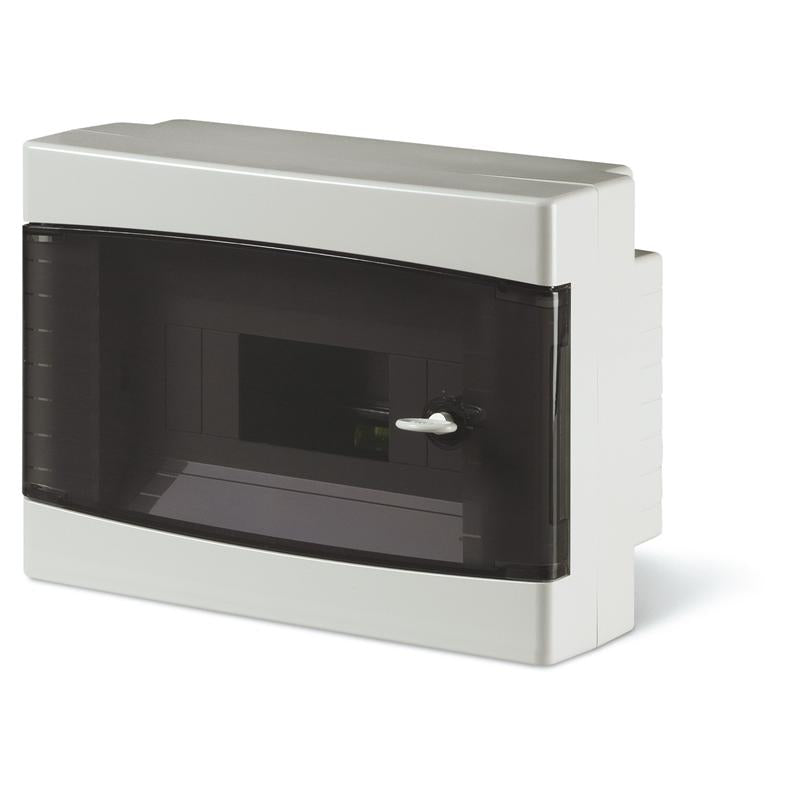

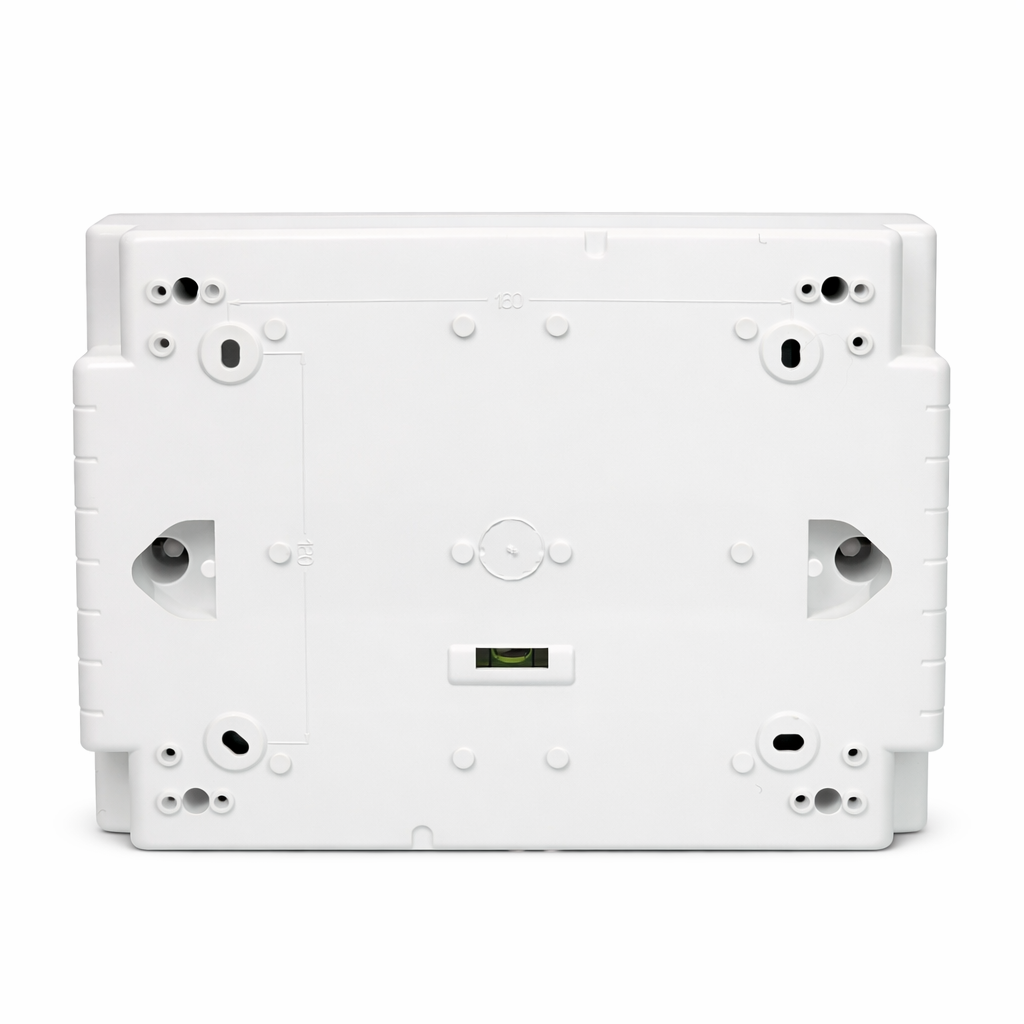

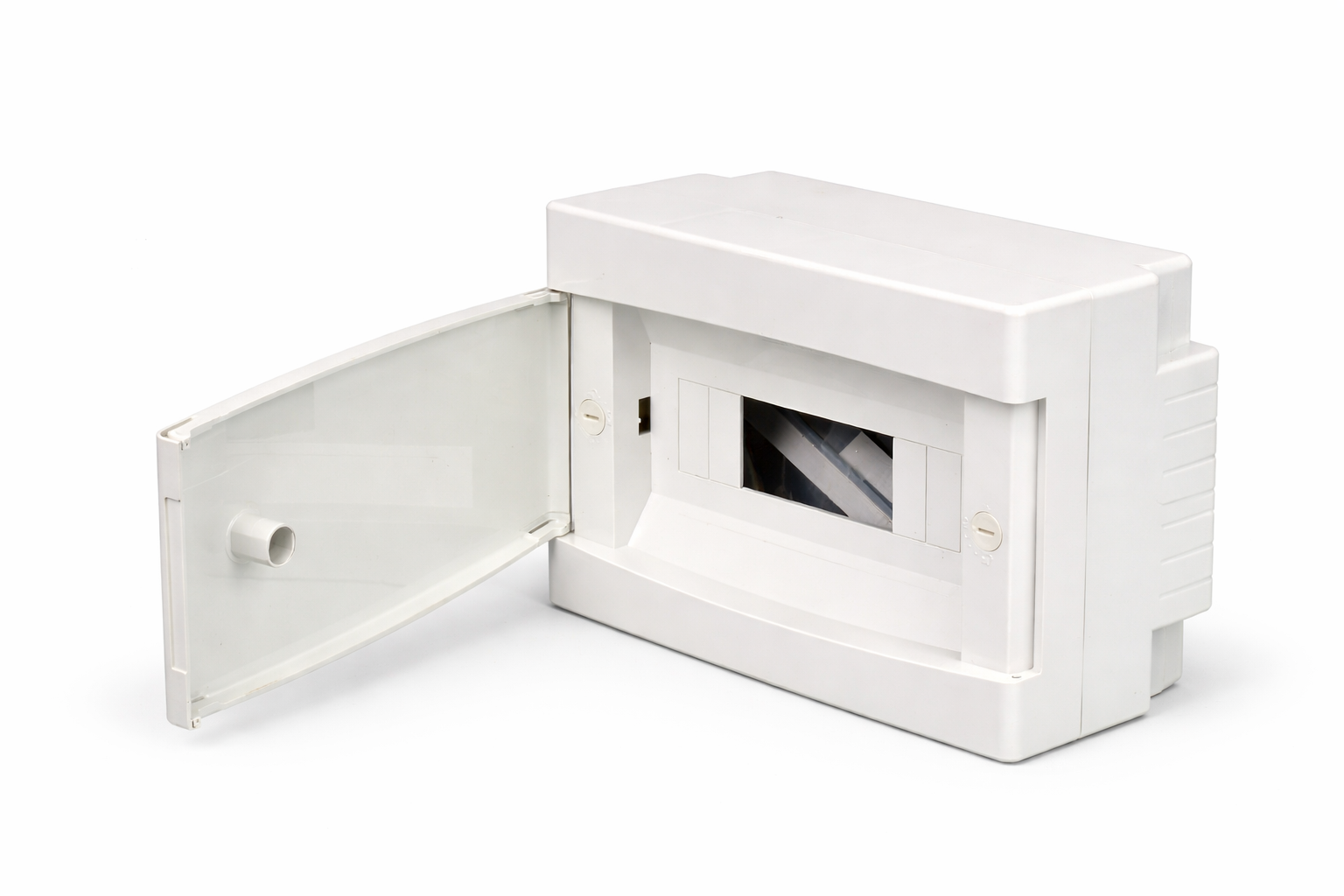

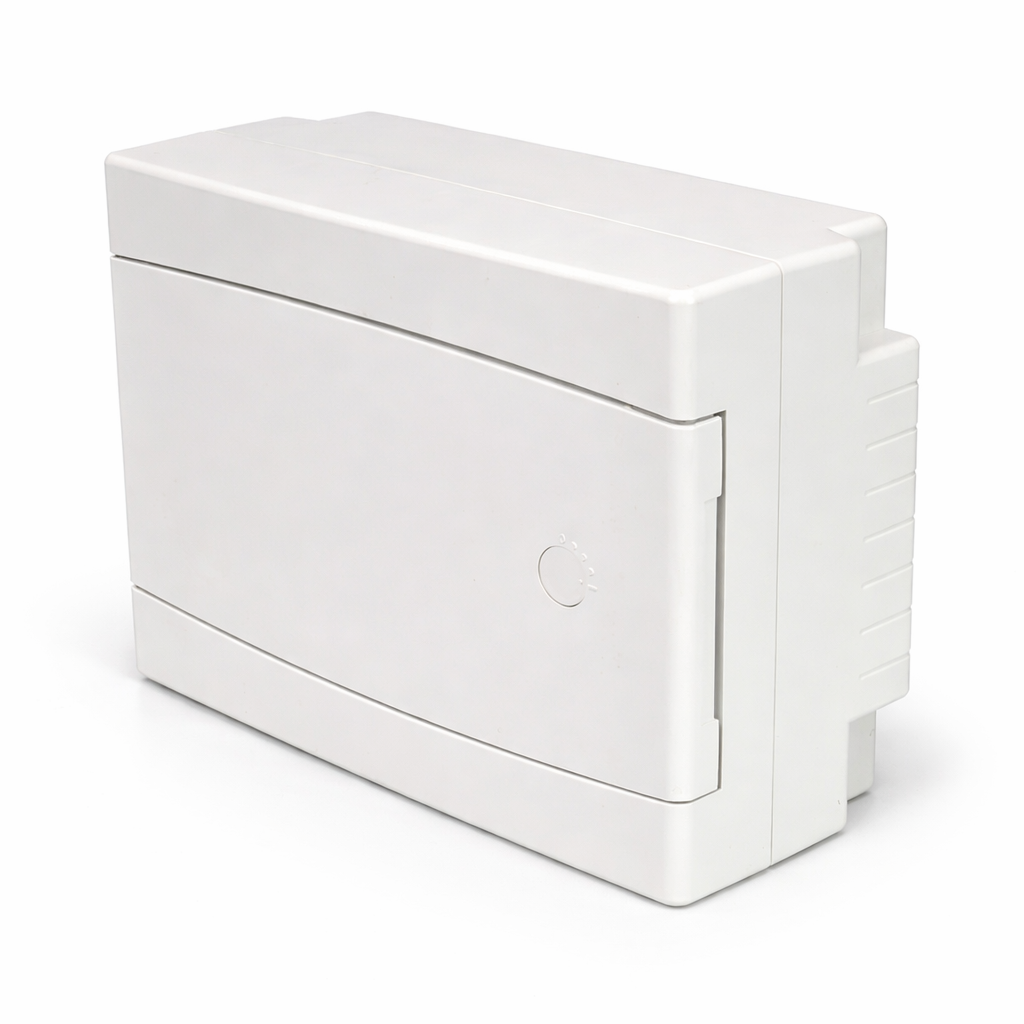

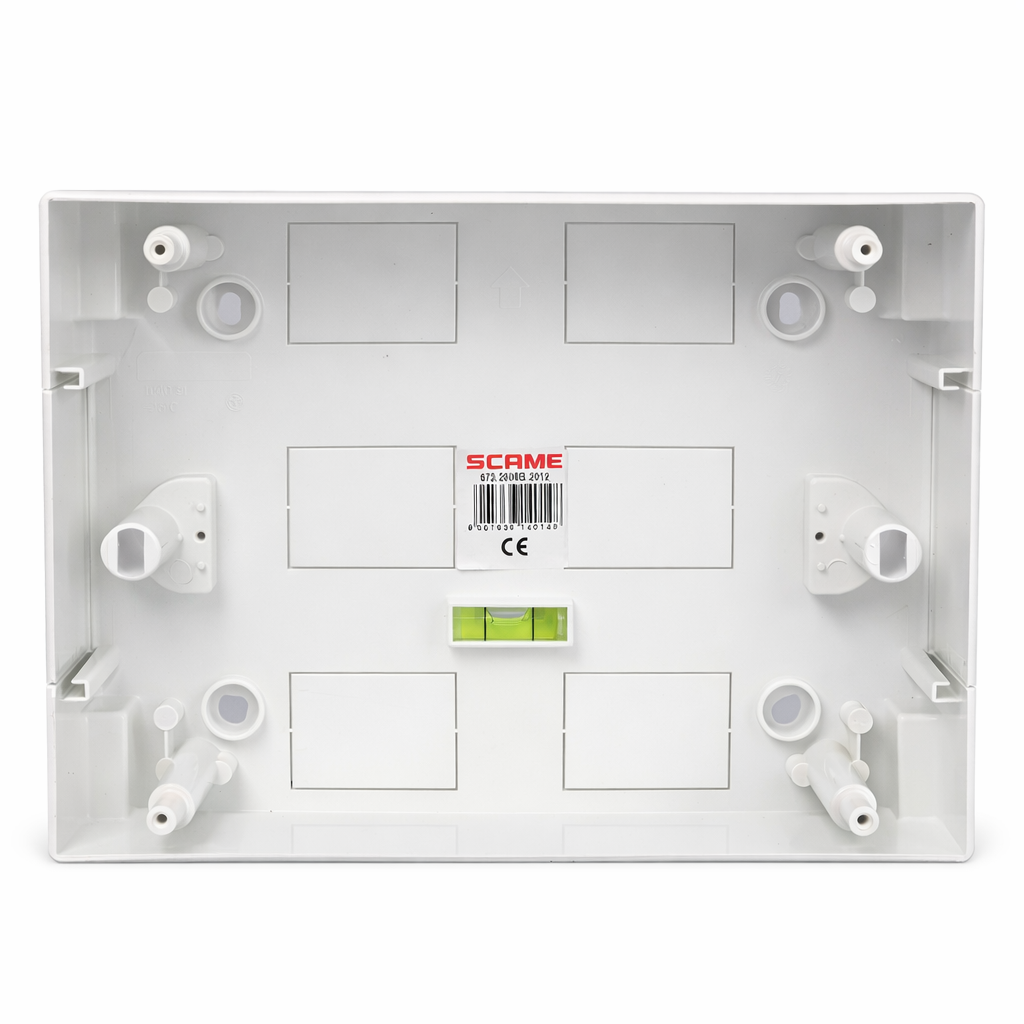

673.2008B.2012 SCAME DOMINO IP40 Surface Consumer Unit 8 DIN 8+1 MOD

The DOMINO IP40 Series Consumer Unit, Code 673.2008B.2012, is designed for surface mounting, providing easy installation and accessibility. With an IP40 rating, it ensures basic protection against solid objects, making it ideal for indoor electrical applications. The unit supports 8 DIN modules plus one additional slot, offering flexibility for circuit configurations.

Measuring 254x190x108mm, this consumer unit features a sleek white finish, ensuring aesthetic integration into various environments. Its durable construction enhances reliability and longevity, making it suitable for residential and commercial installations. This unit provides efficient organization and secure housing for electrical components.

Tech Data:

• Commercial Series: DOMINO IP66 Series [enclosure]

• Synthetical description: Consumer Unit
• Modularity: 8 DIN
• N.° modules: 8+1 MOD.
• Dissipable power: 17W
• Catalogue notes: Power dissipation calculated in conformity with IEC EN 62208 and IEC EN 60670-24 standards

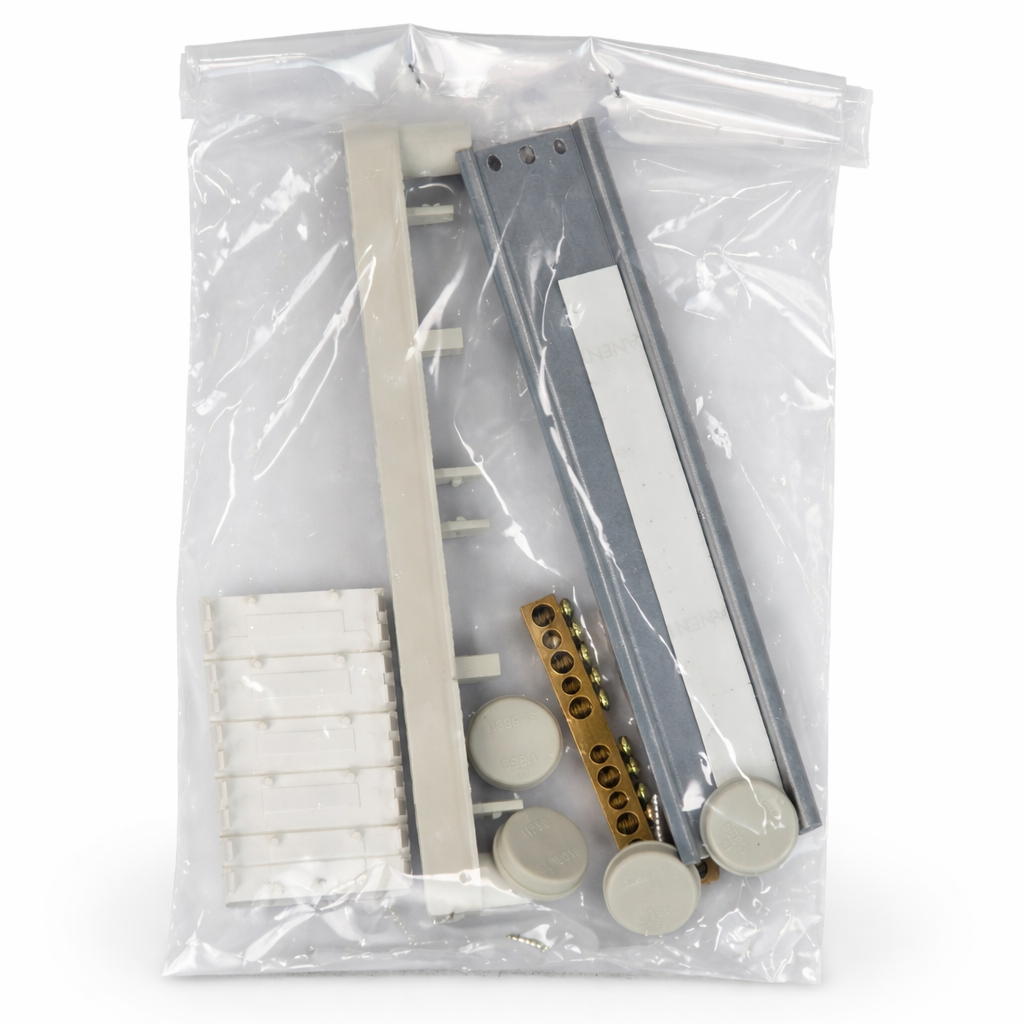

  .2012: white window, without label, without locking kit, with 2 IP00 terminal blocks (5x10mm² - 5x16mm²)
  (*) Power dissipation calculated when 2 consumer units are on top of each other joined by specially designed accessories.


Downloads:

• Technical Sheet
