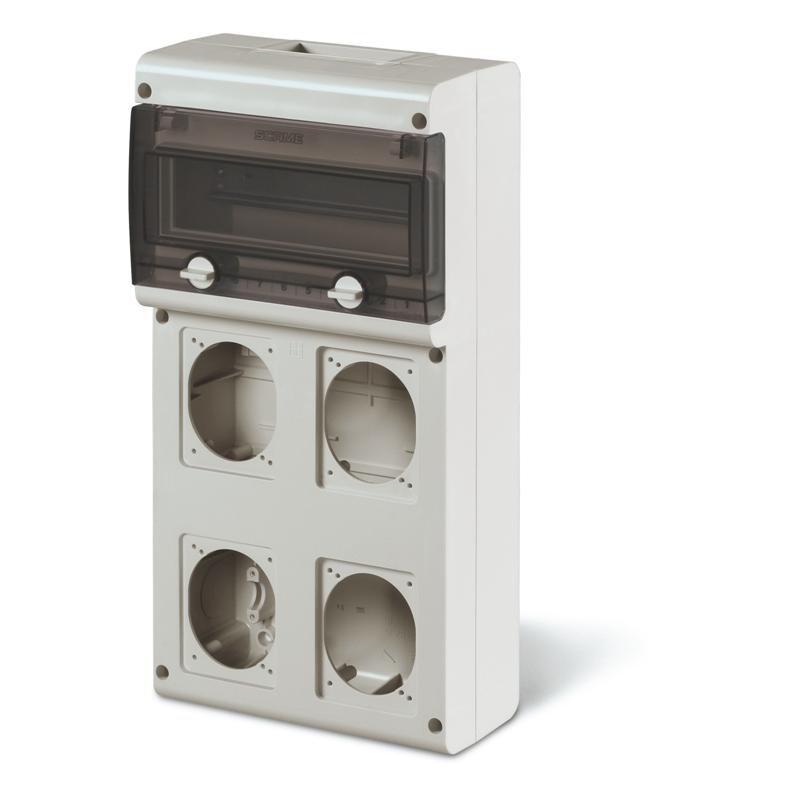

632.4500-000 SCAME BLOCK4 Surface Mounting 11 Modular Enclosure IP66

The LOCK SERIES Modular Enclosure, Code 632.4500-000, is designed for surface mounting with IP66 protection. It features a BLOCK4 structure with 11 modules, ensuring durability and reliability. Its dimensions of 212x415x105mm provide ample space for electrical components.

This enclosure is ideal for industrial and commercial applications, offering protection against dust and water. The sturdy construction enhances safety while maintaining ease of installation. It is a versatile solution for various electrical system configurations.

Tech Data:

• Commercial Series: BLOCK Series
• Synthetical description:  MODULAR ENCLOSURE
• Dimensions: 212x415x105mm
• Modularity: BLOCK4
• N.° modules: 11 MOD.
• Dimensions: 136x440x105mm
• Dissipable power: 14 W
• Catalogue notes:70x87mm cut-outs
  Power dissipation calculated in conformity with IEC EN 62208 and IEC EN 60670-24 standards
  With cut-outs to contain 16A (70x87mm) or, with suitable adaption, 32A socket (84x106mm) and DOMOPLUS Series in the grey coloured positions

Downloads:

• Technical Sheet
