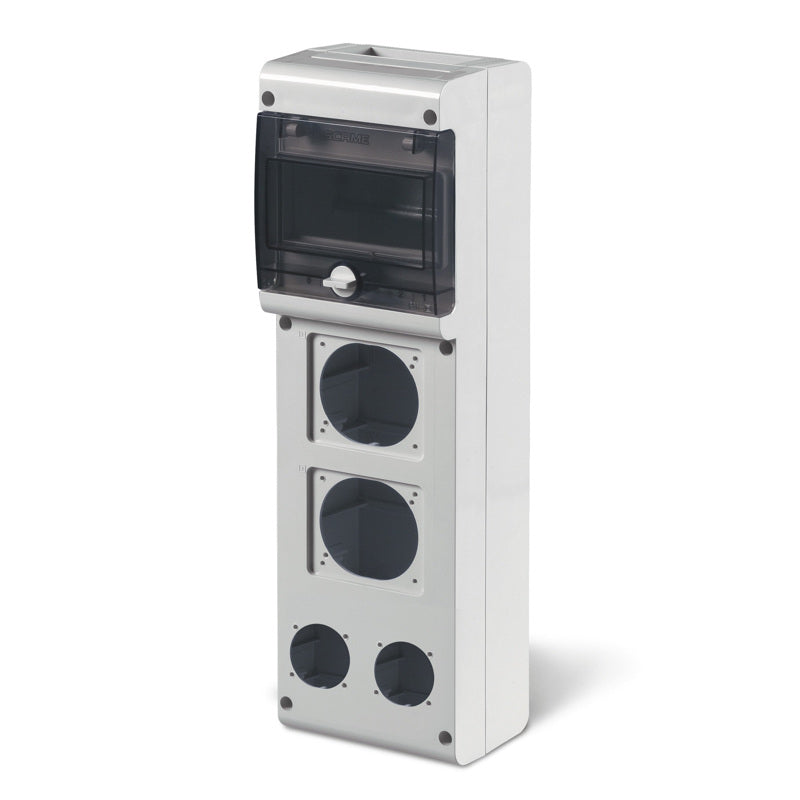

632.3520-000 SCAME BLOCK3 Surface Mounting 6 Modular Enclosure IP66

The BLOCK SERIES Modular Enclosure is designed for surface mounting with IP66 protection. It ensures resistance against dust, water, and harsh conditions. This enclosure is ideal for housing electrical components safely.

With dimensions of 136x440x105mm, it accommodates six modules efficiently. Its durable construction enhances reliability in industrial and commercial settings. The enclosure is perfect for modular configurations requiring robust protection.

Tech Data:

• Commercial Series: BLOCK Series
• Synthetical description:  MODULAR ENCLOSURE
• Dimensions: 212x415x105mm
• Modularity: BLOCK3
• N.° modules: 6 MOD.
• Dimensions: 136x440x105mm
• Dissipable power: 9 W
• Catalogue notes: 50x60 mm cut-outs
  Power dissipation calculated in conformity with IEC EN 62208 and IEC EN 60670-24 standards
  70x87mm cut-outs
  With cut-outs to contain 16A (70x87mm) or, with suitable adaption, 32A socket (84x106mm) and DOMOPLUS Series in the grey coloured positions

Downloads:

• Technical Sheet
