A compact aluminium enclosure sized for the switch. Standard 20–40A 1–4-pole versions use the 106 × 171 × 92mm body; 63–100A versions use the 160 × 220 × 115mm body.
SCAME Aluminium Isolator Switch 32A 4P IP66 — General
Tax included. Shipping calculated at checkout
The ISOLATORS-AL Series switch disconnector is built for general-purpose industrial use, with a die-cast aluminium enclosure designed to handle demanding environments. The grey/black handle gives it a clean, professional finish suited to commercial and industrial switchboards.
Rated at 32A and configured as 4-pole (4P) with a Y1 switch size, it operates at up to 690V and carries a high IP66 protection rating together with IK10 impact resistance — making it well suited to exposed or harsh-duty installations across the Australian market.
The unit features a lockable door interlock and a handle that can be padlocked in both the OFF position (up to three padlocks) and the ON position (one padlock), giving installers flexible lockout/tagout options. Cable entry is via an open threaded entry with cap and cable sleeve for a clean, sealed termination.
Eligible for Free Shipping Australia Wide on orders above AU$249
*Excludes Large and Bulky Items
SCAME Aluminium Isolator Switch 32A 4P IP66 — General
Sale price$88.04 AUD
Regular price$586.95 AUD
Product specifications
YOUR SELECTED MODEL

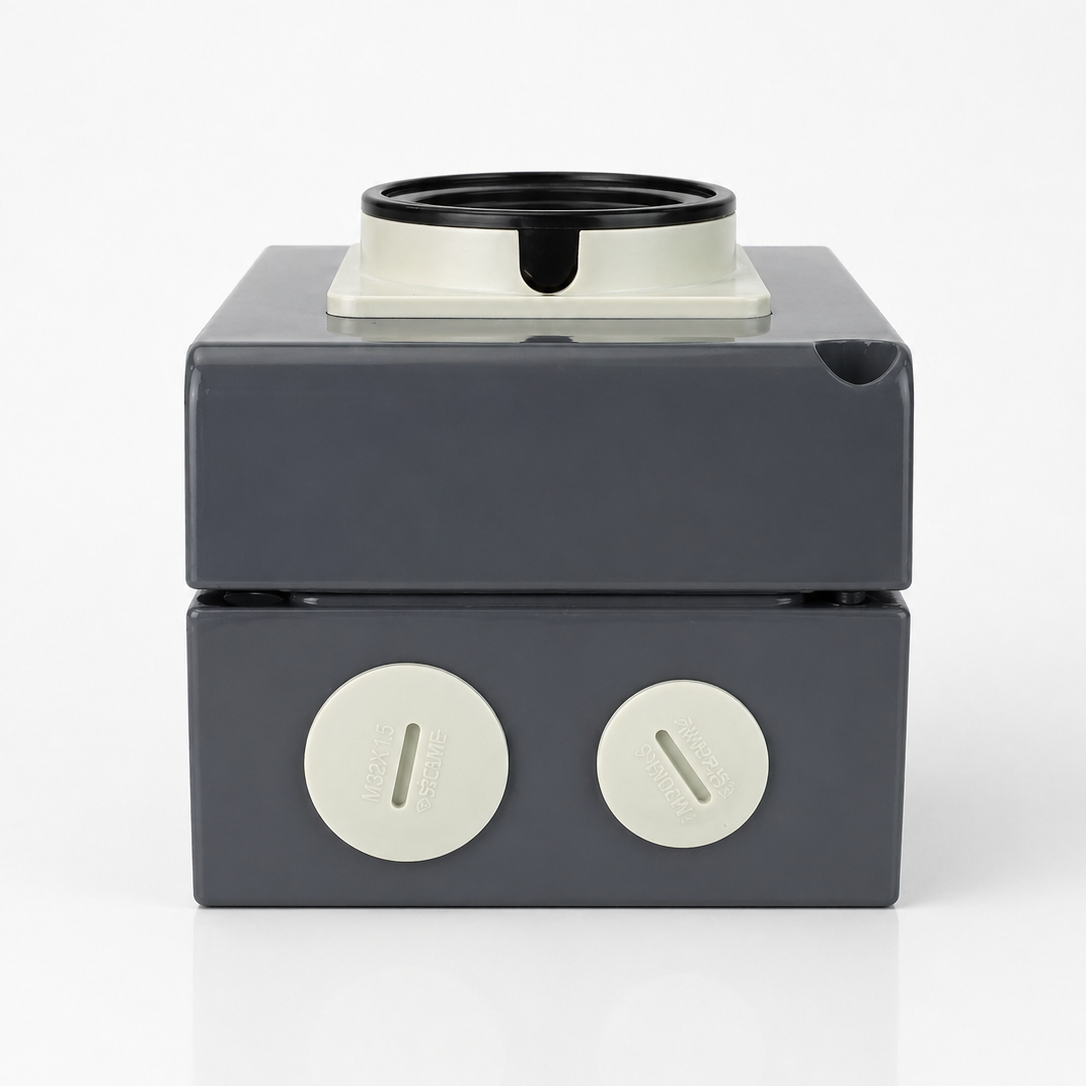

590.HGE3204
The specifications below belong to this product. Use them to confirm the current, pole configuration, protection rating and enclosure dimensions required for your installation.
Download datasheetRated current at AC22A
32A
Rated voltage
690V
Poles
4P
Protection degree IP
IP66
Protection degree IK
IK10
Material
Die-Cast Aluminium
Colour
Grey/Black
Dimensions
105x150x82mm
Mounting version
Surface Mounting
ISOLATORS-AL[EVO]
Aluminium strength. Practical protection.
Die-cast aluminium switch-disconnectors with a protective finish for demanding industrial environments.
A recessed handle and solid metallic collar help protect against lateral impacts, while the extra-large grip supports operation with work gloves. Choose general-use or emergency-use versions to suit the installation.

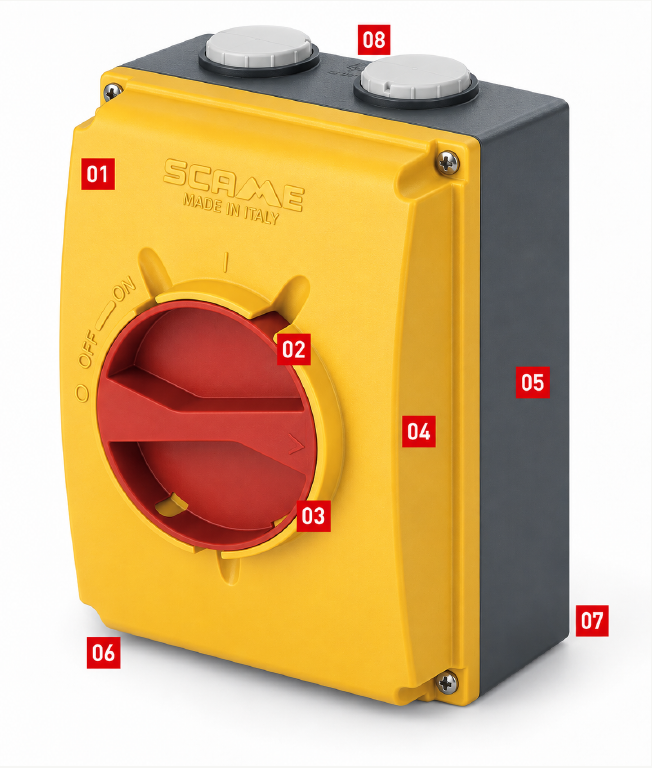

MAIN CHARACTERISTICS
Designed around the details
- 01
Recessed handle shielded within a solid metallic collar against accidental lateral impacts.
- 02
High-visibility, extra-large handle for a secure grip, even with heavy work gloves.
- 03
General-use handles padlock OFF with up to three padlocks or ON with one. Emergency handles padlock OFF only.
- 04
Door locking with the switch in the ON position.
- 05
Die-cast aluminium with a thermosetting polyester powder finish for resistance to UV rays and atmospheric agents.
- 06
AC23 switching duty, with provision for up to two auxiliary contacts.
- 07
Switched-neutral 2P, 4P and 8P versions use an early-make / late-break neutral pole. Earth connection uses a terminal or threaded bar.
- 08
Threaded cable entries with caps on the illustrated enclosure. Larger enclosure configurations may have blank sides.
Characteristics shown apply to the illustrated aluminium version. .SN and .WSN codes use an unswitched solid neutral. Check the selected model's datasheet for its exact ratings and cable entries.
SELECT THE RIGHT VERSION
More room when wiring demands it
High wiring capacity · .W
A larger enclosure provides more room for cable terminations. 20–40A versions move to 160 × 220 × 115mm, and 63–100A versions to 240 × 340 × 150mm. The .WSN suffix combines this extra room with a solid neutral.
125A and 160A high-wiring versions use K1 and K2 switches in a 315 × 410 × 150mm enclosure. Confirm dimensions and ratings for the exact part number.
PLAN YOUR INSTALLATION
Choose, connect and install
Read the part number, compare handle options and plan the enclosure and cable entries.
How to read a part number
590.HGE6315.SN
590.H
PREFIX
SCAME article
Die-cast aluminium
GE
VERSION
GE = general use
EM = emergency use
EL = special high visibility
63
CURRENT
16–160A
AC22A at 415V
15
POLES
12 = 2P
13 = 3P
15 = 4P (3P+N)
16 = 6P
18 = 8P
.SN
SUFFIX
.SN = unswitched solid neutral
.W = high wiring capacity
.WSN = both combined
-P = 40A Y1-P performance switch, 22kW
Example format shown. Some larger-switch configurations use 05, 06 or 08 pole codes; confirm the full part number against the selected model.

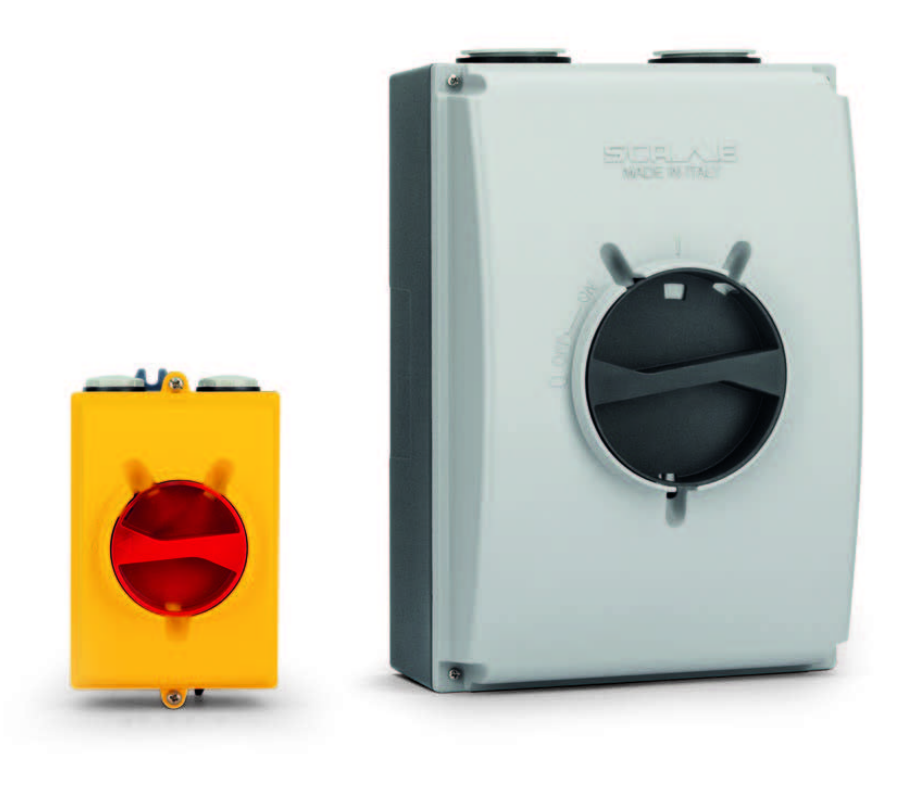

Emergency vs General handle
The handle colour and padlocking arrangement identify the intended operating version.
| Feature | General use · GE | Emergency use · EM |
|---|---|---|
| Handle / plate | Black / grey | Red / yellow |
| OFF padlocking | Up to 3 padlocks | Up to 3 padlocks |
| ON padlocking | 1 padlock | Not available |
| Door interlock | Locked with switch ON | Locked with switch ON |
Maximum padlock arch diameter: 8mm. The enclosure door interlock is separate from padlocking the handle.
Cable-entry & enclosure guide
Match the enclosure dimensions on the product datasheet to the table below. High-wiring and multi-pole versions can use a different enclosure from a standard switch of the same current.
| Enclosure dimensions (mm) | Top & bottom provision | Rear |
|---|---|---|
| 106 × 171 × 92 | 2 × M25 threaded + caps | Blank |
| 160 × 220 × 115 | 2 × M32 threaded + caps | Blank |
| 240 × 340 × 150 | 2 × M50 threaded + caps | Blank |
| 264 × 315 × 122 / 315 × 410 × 150 | Blank | Blank |
Threaded caps are supplied where entries are drilled and threaded. Cable glands are selected separately. Confirm the exact model's drawing before drilling or mounting.
Auxiliary contacts
Up to two auxiliary contacts can be fitted per switch. Select by switch size and the required operating sequence.
| Switch size | Accessory code | Contact / operation | Rating at 250V |
|---|---|---|---|
| Y1 | 590.PL004001 / 590.PL004002 | NC / NO options · simultaneous with main contacts | 16A |
| Y1 | 590.PL004005 | NO/NC · breaks before main contacts | 16A |
| Y3 · Y4 · Y5 | 590.PL005 | NO/NC · breaks before main contacts | 15A |
Codes listed in the supplied catalogue. Confirm compatibility for the exact switch, particularly Y2 and K1/K2 versions. Auxiliary contacts are accessories and are not implied to be included.
Electrical duty & motor selection
The part number uses the AC22A current at 415V. AC23A current can differ, so select against the load and operating duty.
| Nominal / AC22A | AC23A at 415V | Indicative motor power |
|---|---|---|
| 20A | 20A | 11kW |
| 32A | 32A | 15kW |
| 40A · standard Y1 | 35A | 18.5kW |
| 40A · Y1-P (-P) | 40A | 22kW |
| 63A | 63A | 30kW |
| 80A · Y2 | 67A | 37kW |
| 100A | 100A | 45kW |
| 125A · standard | 125A | 55kW |
| 160A · standard | 160A | 75kW |
Guide for standard 1–4-pole versions. Multi-pole and K1/K2 configurations can have different ratings. Motor power is indicative; confirm against the product datasheet and motor manufacturer's specification.
Chemical & environmental guide
SCAME's indicative guide for the aluminium enclosure.
| Agent | Resistance |
|---|---|
| Saline solution | Resistant |
| Concentrated acids | Limited resistance |
| Diluted acids | Resistant |
| Concentrated bases | Limited resistance |
| Diluted bases | Resistant |
| Hexane, benzol, acetone and alcohol | Resistant |
| Mineral oil | Resistant |
| UV rays | Resistant |
Indicative values only. Confirm suitability for specific substances and exposure conditions with SCAME technical service. Protection and impact ratings vary by configuration; use the selected model's datasheet.
Source: SCAME ISOLATORS-AL[EVO] Australian catalogue ZP01355-EN-0, pp. 1–9. Ratings and dimensions vary by model.
