568.1687 Scame Advance 2 Interlocked 3P+N+E IP67 16A 6h

The ADVANCE 2 Series Interlocked Socket (Cod. 568.1687) is a high-performance power outlet designed for 16A, 3P+N+E, 6h configurations. It operates at 346-415V, 50/60Hz, ensuring stable and efficient power distribution. Its 136x390mm design allows for easy installation in industrial and commercial environments.

Equipped with screw terminals and a mechanical interlock, this socket provides a secure connection, preventing accidental disconnections. Its durable construction ensures long-lasting performance, even in demanding conditions. Designed for safety and reliability, it is an ideal choice for heavy-duty electrical applications.

Tech Data:

• Commercial Series: Advance 2 Series
• Synthetical description: Interlocked Socket
• Hour position: 6h
• Rated voltage: 346-415V

• Protection degree: Splash proof

• Terminals: Screw terminals

• Contact material: CuZn (brass)
• Flange: 136X390MM
• Cable entry: DRILLING POINT MARK

• Options: With mechanical interlock
• Notes: WITH DIN RAIL (6 MODULES)
• Padlock: ø5mm
• Catalogue notes: Blank side with drilling point marks

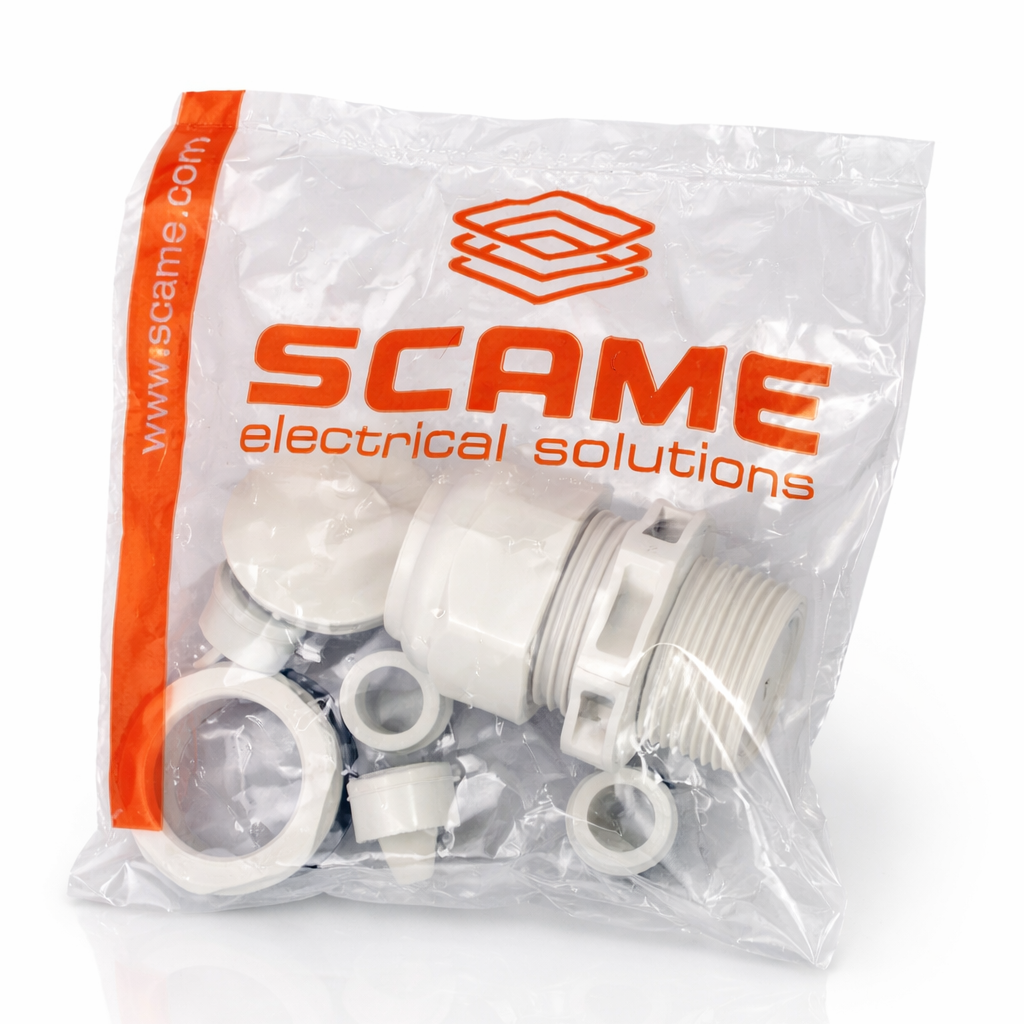

  Cable gland included

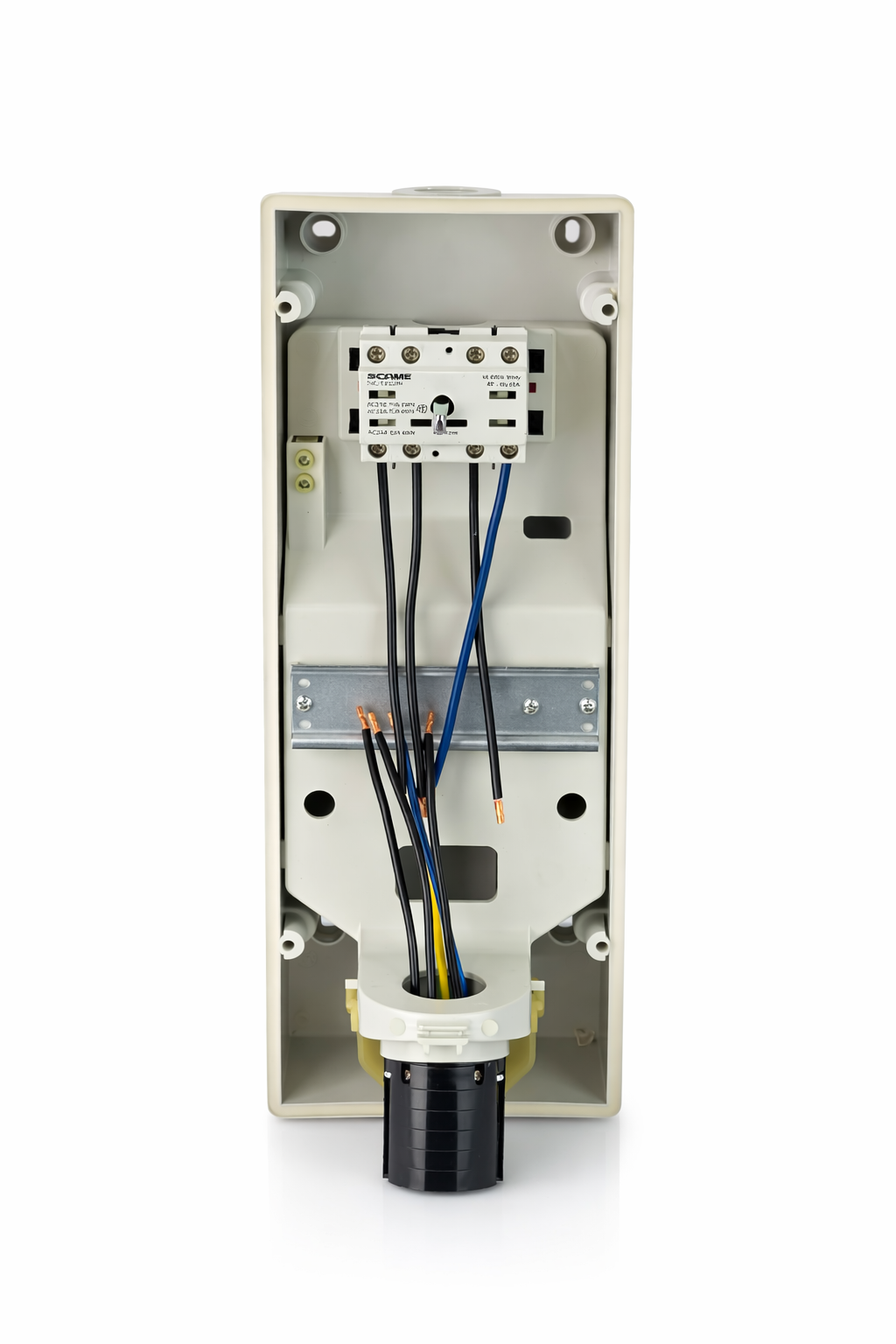

  [LARGE] Possibility to enter from the bottom (smooth walls with drilling point mark)
