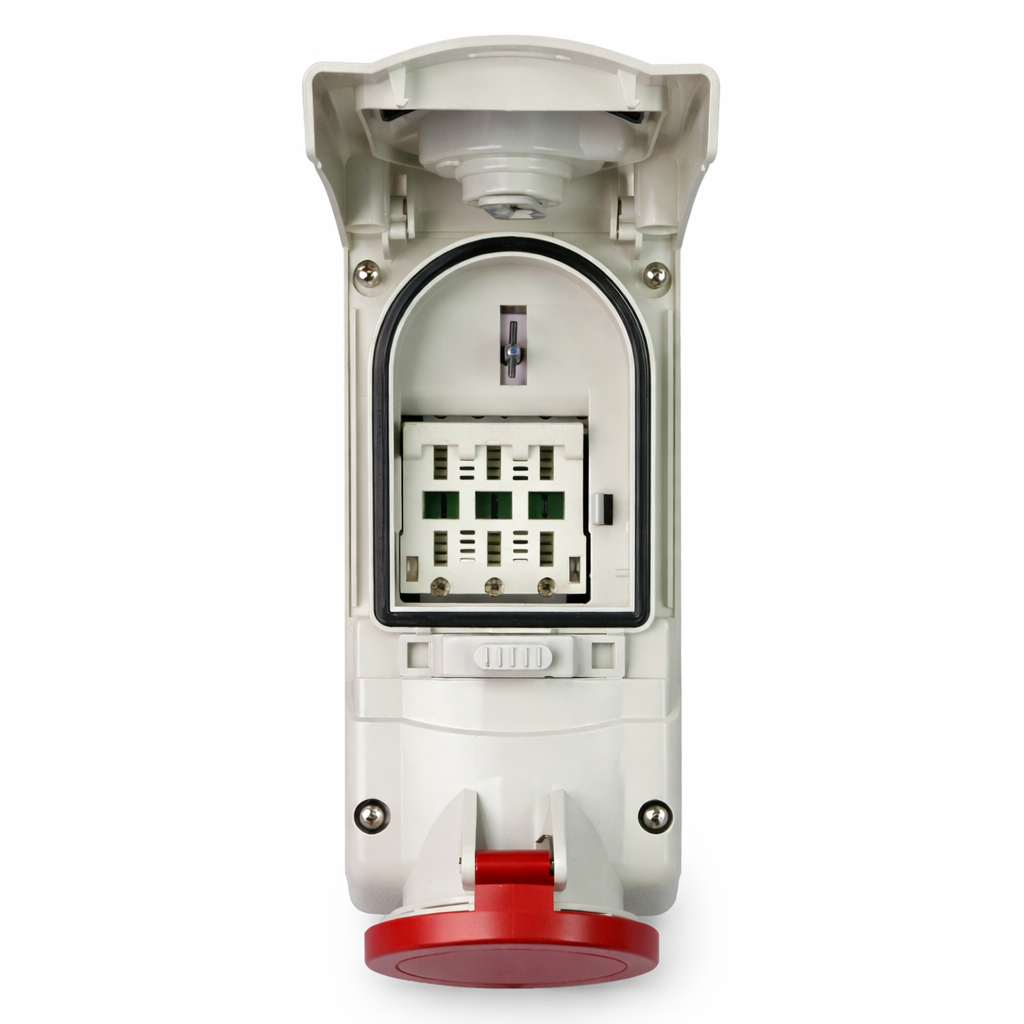

562.3287 Scame Advance 2 Interlocked 3P+N+E IP44 32A 6h

The ADVANCE 2 Series Interlocked Socket (Cod. 562.3287) is a robust power solution designed for 32A, 3P+N+E, 6h configurations. It operates at 346-415V, 50/60Hz, ensuring stable and efficient power distribution. Its 106x240mm flange allows for easy installation in industrial and commercial settings.

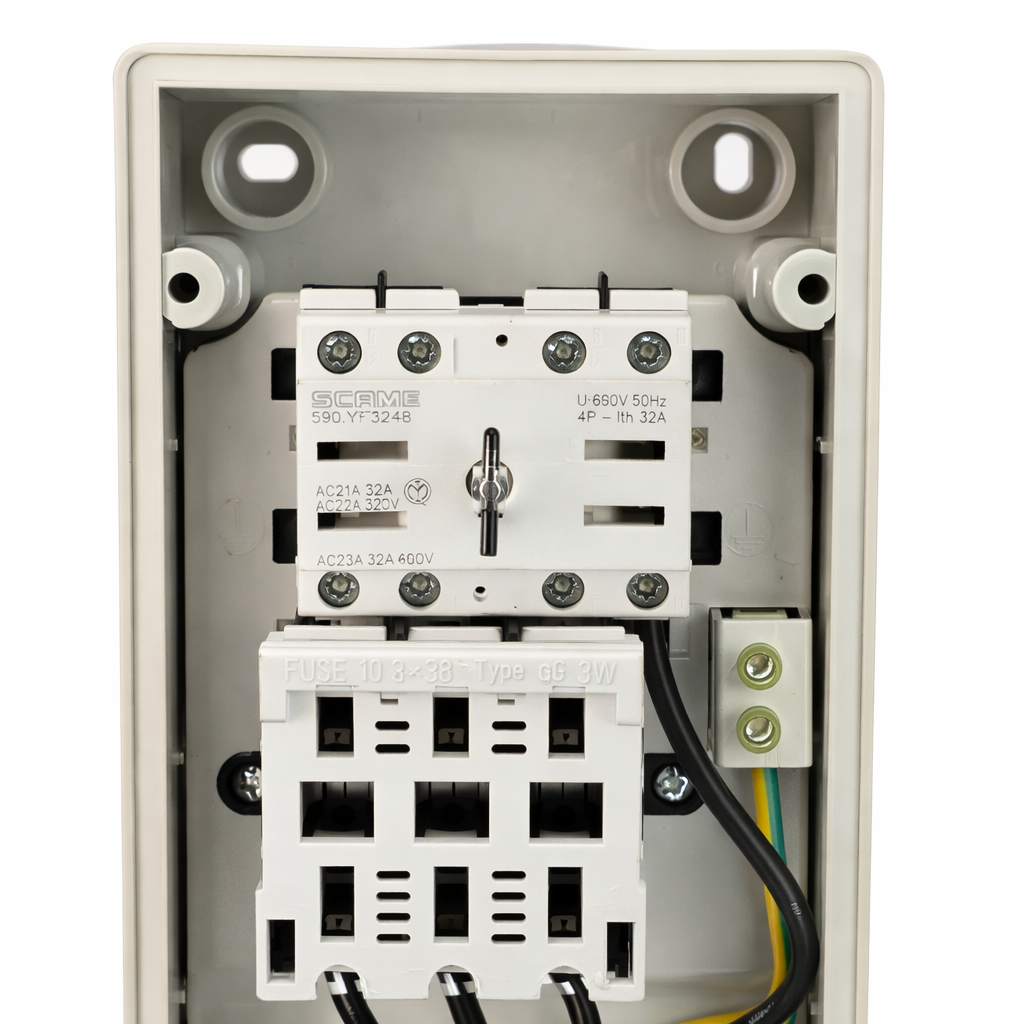

Equipped with screw terminals and a mechanical interlock, this socket provides a secure connection, preventing accidental disconnections. Its durable construction guarantees long-lasting performance in demanding environments. Designed for safety and reliability, it is ideal for heavy-duty electrical applications.

Tech Data:

• Commercial Series: Advance 2 Series
• Synthetical description: Interlocked Socket
• Hour position: 6h
• Rated voltage: 346-415V

• Protection degree: Splash proof

• Terminals: Screw terminals

• Contact material: CuZn (brass)
• Flange: 106X240MM
• Cable entry: M25X1,5
• Options: With mechanical interlock
• Notes: WITH FUSE HOLDER
• Padlock: ø5mm
• Fuse type: gG 10,3x38mm
• Catalogue notes: Cable gland included; Fuses not supplied
  Open threaded cable entry
  Threaded cap/cable sleeve included


Downloads:

• Technical Sheet
