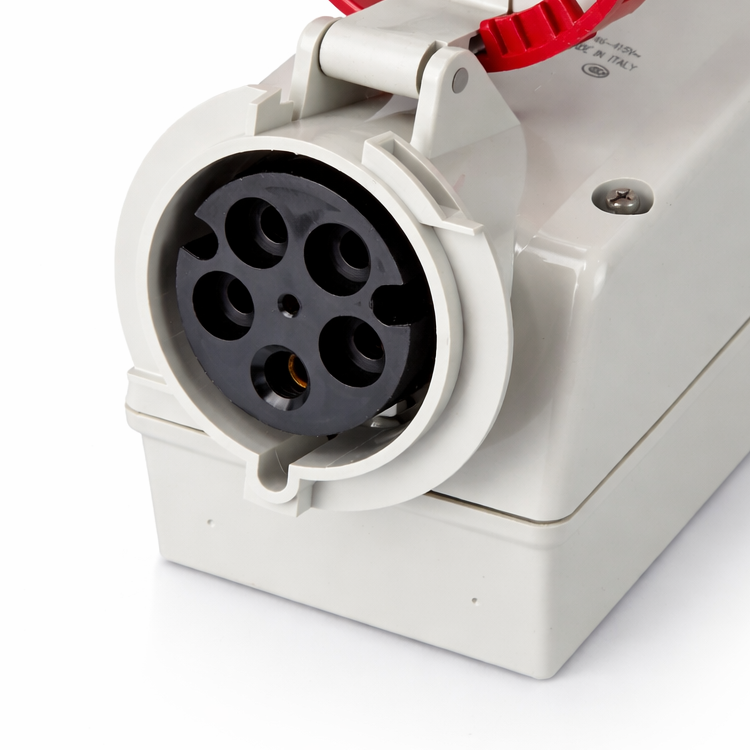

561.3287 Scame Advance 2 Interlocked Socket 32A 3P+N+E 6h

The ADVANCE 2 Series Interlocked Socket (Cod. 561.3287) is a reliable power solution designed for 32A, 3P+N+E, 6h configurations. It operates at 346-415V, 50/60Hz, ensuring stable and efficient power distribution. Its 106x240mm compact design allows for easy installation in industrial and commercial environments.

Equipped with screw terminals and a mechanical interlock, this socket ensures a secure connection, preventing accidental disconnections. Its durable construction guarantees long-lasting performance, even in demanding conditions. Designed for safety and reliability, it is ideal for heavy-duty electrical applications.

Tech Data:

• Commercial Series: Advance 2 Series
• Synthetical description: Interlocked Socket
• Hour position: 6h
• Rated voltage: 346-415V

• Protection degree: Watertight

• Terminals: Screw terminals

• Contact material: CuZn (brass)
• Flange: 106X240MM
• Cable entry: M25X1,5
• Options: With mechanical interlock
• Notes: WITHOUT FUSE HOLDER
• Padlock: ø5mm
• Catalogue notes: Cable gland included
  Open threaded cable entry
  Threaded cap/cable sleeve included


Downloads:

• Technical Sheet
