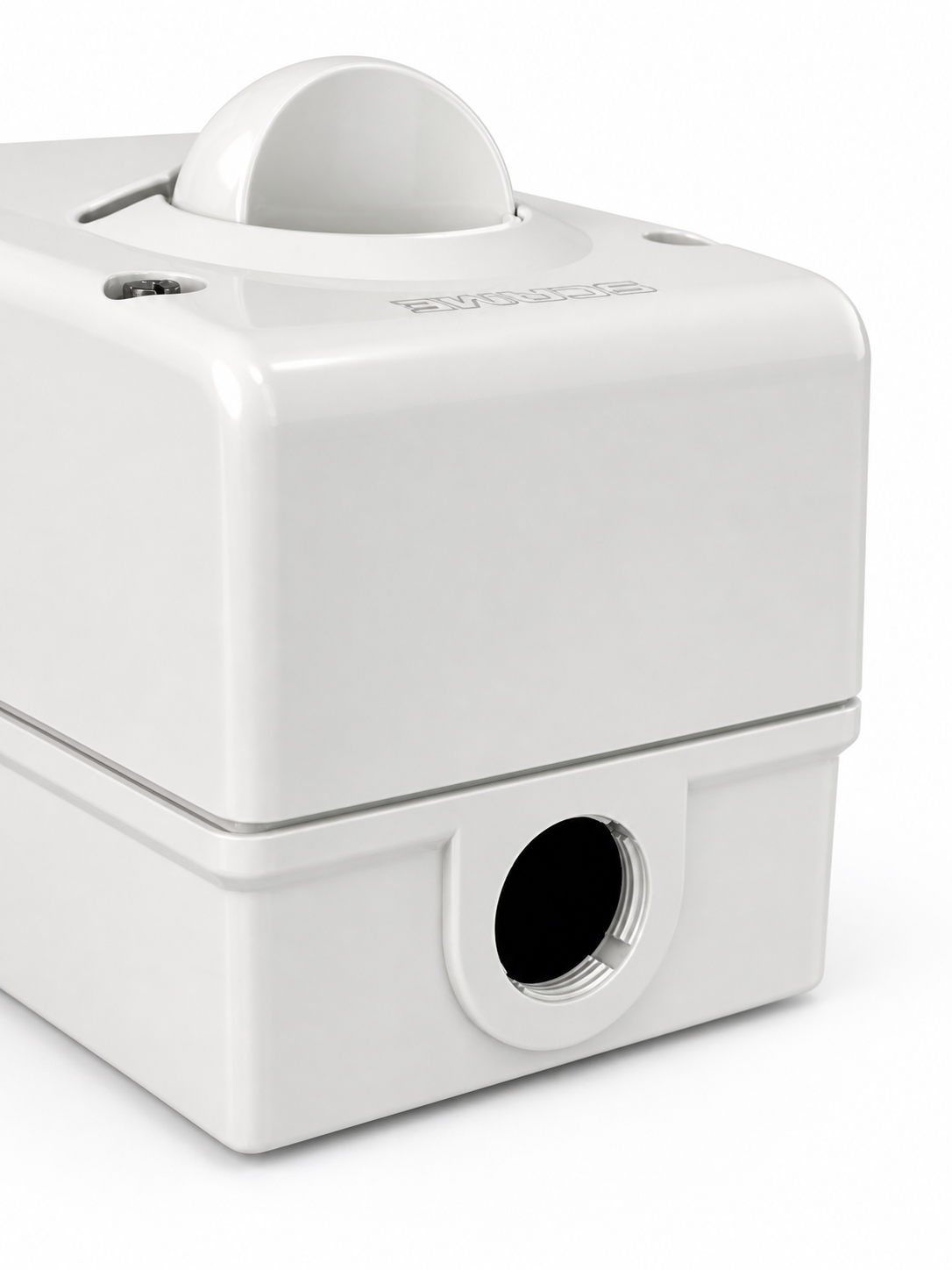

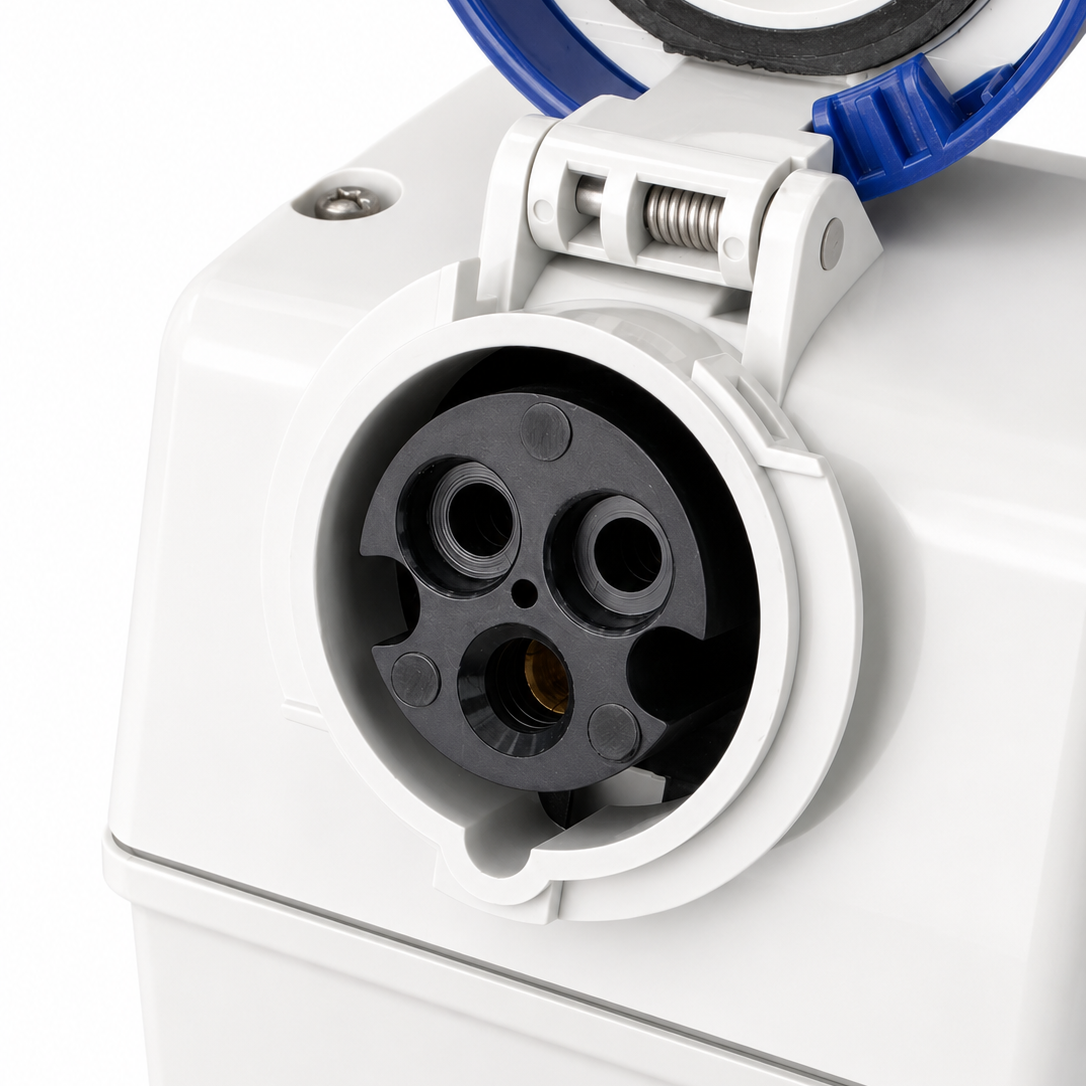

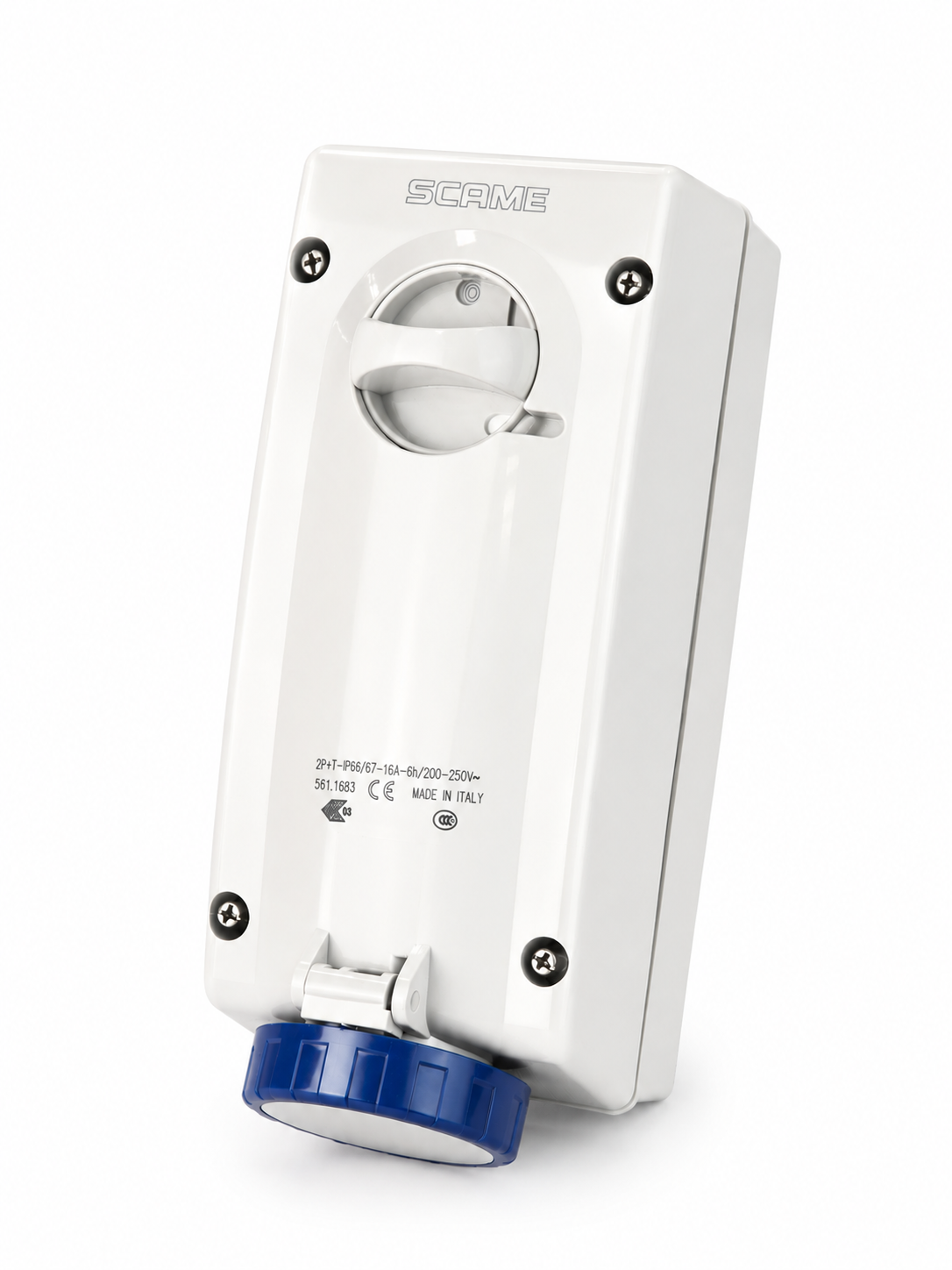

561.1683 Scame Advance 2 Interlocked Socket 2P+E IP67 16A 6h

The ADVANCE 2 Series Interlocked Socket (Cod. 561.1683) is a robust and secure power solution designed for 16A, 2P+E, 6h configurations. It operates at 200-250V, 50/60Hz, ensuring efficient and stable power distribution. Its 106x240mm compact design allows for easy installation in industrial and commercial environments.

Equipped with screw terminals and a mechanical interlock, this socket ensures a secure connection, preventing accidental disconnections. Its durable construction enhances longevity, making it suitable for demanding applications. Designed for safety and reliability, it is an ideal choice for heavy-duty electrical systems.

Tech Data:

• Commercial Series: Advance 2 Series
• Synthetical description: Interlocked Socket
• Hour position: 6h
• Rated voltage: 200-250V

• Protection degree: Watertight

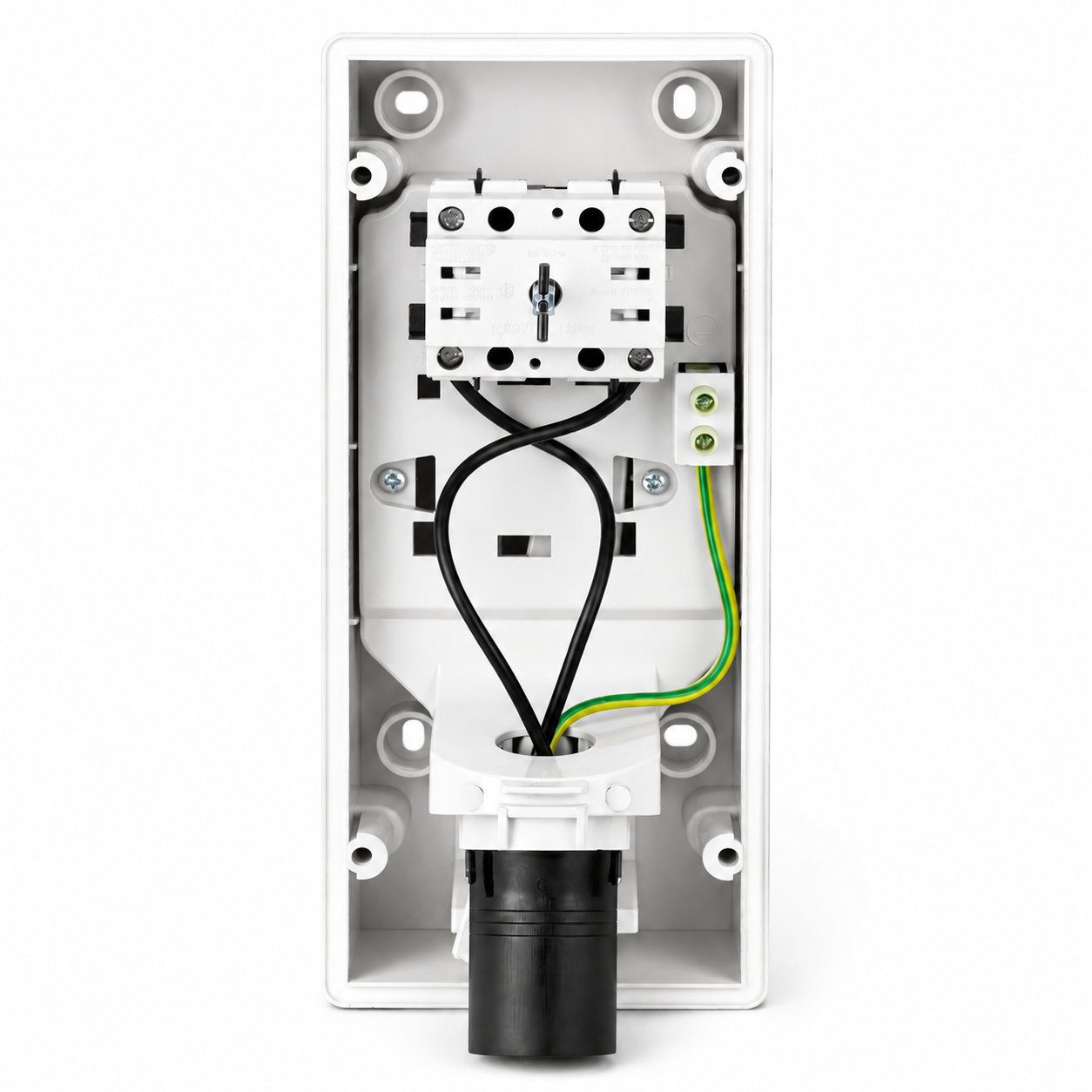

• Terminals: Screw terminals

• Contact material: CuZn (brass)
• Flange: 106X240MM
• Cable entry: M25X1,5
• Options: With mechanical interlock
• Notes: WITHOUT FUSE HOLDER
• Padlock: ø5mm

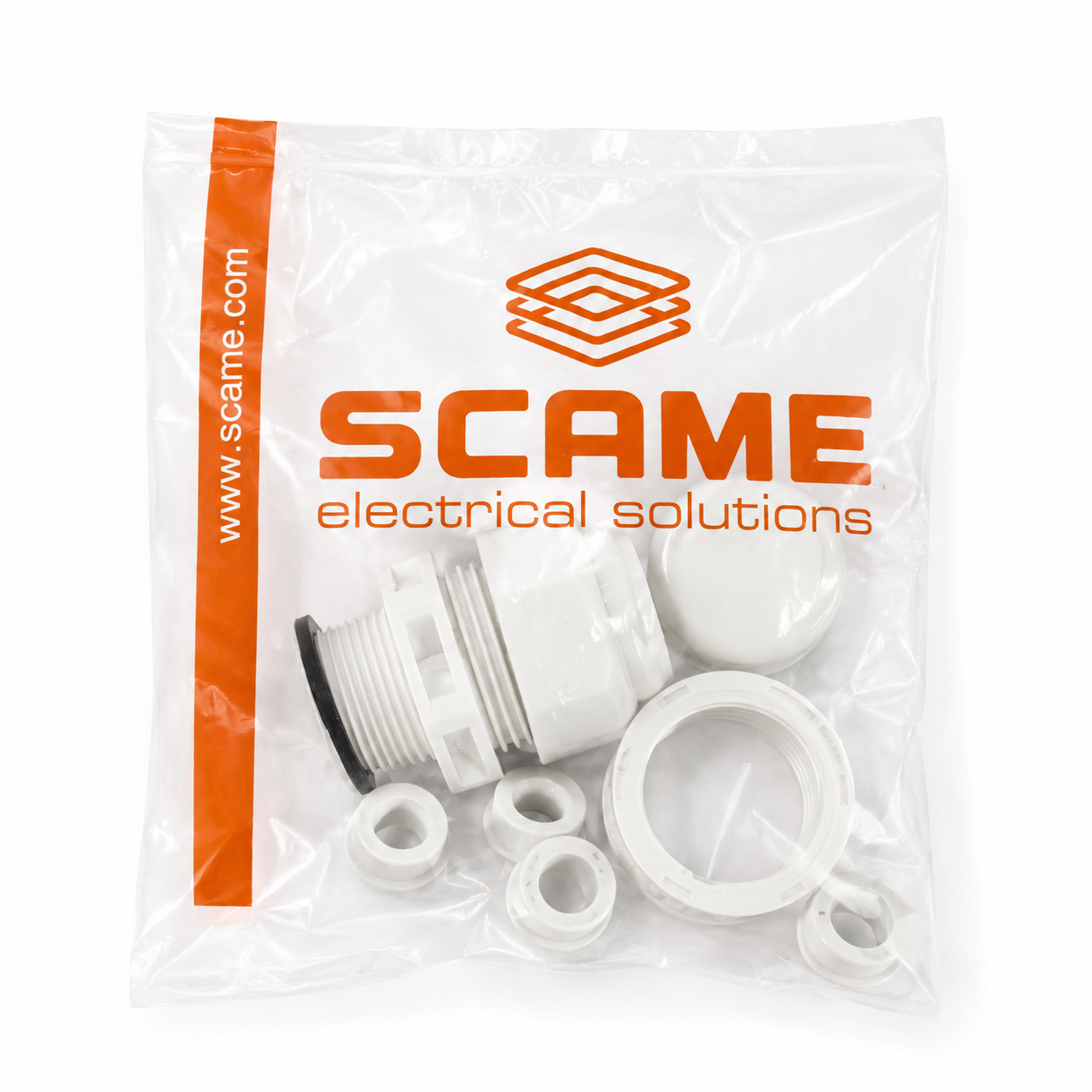

• Catalogue notes: Cable gland included
  Open threaded cable entry
  Threaded cap/cable sleeve included


Downloads:

• Technical Sheet
