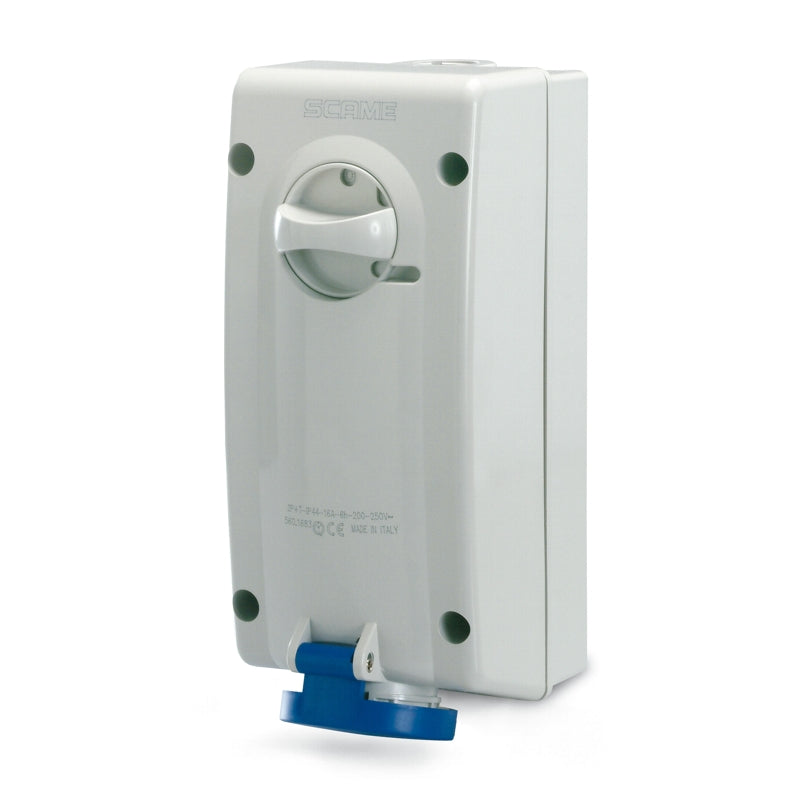

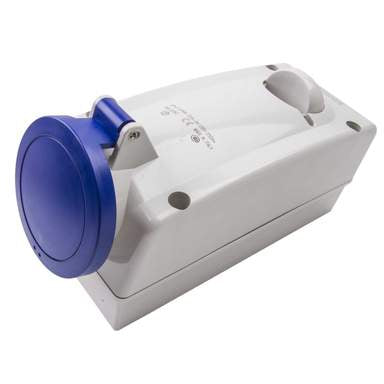

560.3283 Scame Advance 2 Interlocked Socket 32A 2P+E 6h 200-250V

The ADVANCE 2 Series Interlocked Socket (Cod. 560.3283) is a robust power solution designed for 32A, 2P+E, 6h configurations. It operates at 200-250V, 50/60Hz, ensuring efficient and stable power distribution. Its 106x240mm compact design allows for easy installation in industrial and commercial environments.

Equipped with screw terminals and a mechanical interlock, this socket guarantees a secure connection, preventing accidental disconnections. Its durable construction ensures long-lasting performance in demanding conditions. Designed for safety and reliability, it is ideal for heavy-duty electrical applications.

Tech Data:

• Commercial Series: Advance 2 Series
• Synthetical description: Interlocked Socket
• Hour position: 6h
• Rated voltage: 200-250V

• Protection degree: Splash proof

• Terminals: Screw terminals

• Types of available outlets: STRAIGHT

• Contact material: CuZn (brass)
• Flange: 106X240MM
• Cable entry: M25X1,5
• Options: With mechanical interlock
• Notes: WITHOUT FUSE HOLDER
• Padlock: ø5mm
• Catalogue notes: Cable gland included
  Open threaded cable entry
  Threaded cap/cable sleeve included


Downloads:

• Technical Sheet
