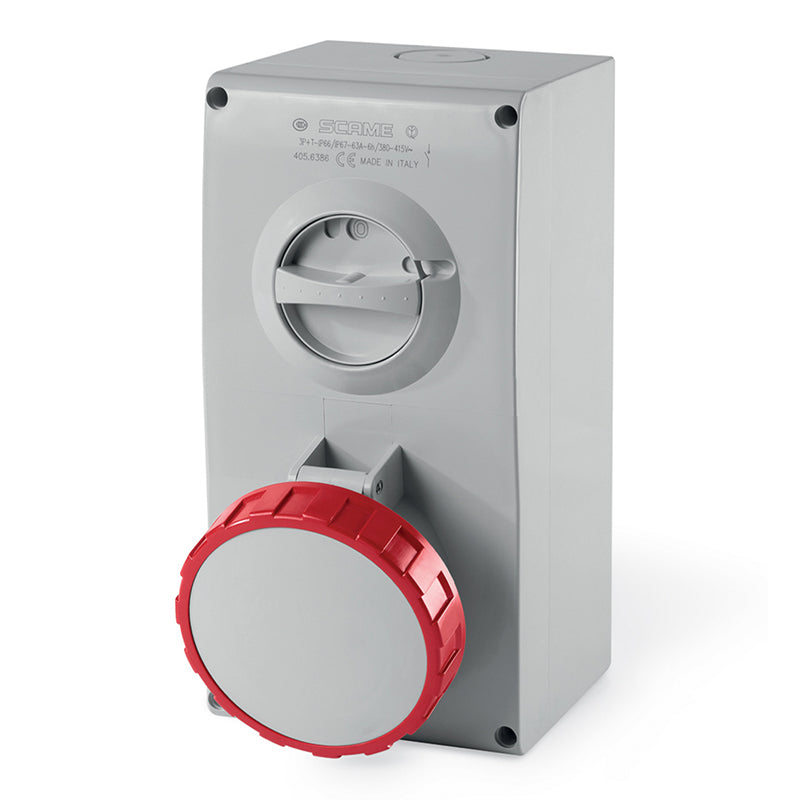

505.6387 Scame Omnia Interlocked Socket 3P+N+E 63A 6h IP66/67

Name: 505.6387 Scame Omnia Interlocked Socket 3P+N+E 63A 6h IP66/67
Brand: Scame Parre S.p.A
SKU: 505.6387
Price: 783.95 AUD
Availability: InStock

$783.95 AUD

Tax included. Shipping calculated at checkout

Description

The OMNIA Series Interlocked Socket (Cod. 505.6387) is a high-capacity power solution designed for 63A, 3P+N+E, 6h configurations. It operates at 346-415V, 50/60Hz, ensuring efficient and stable power distribution. Its 136x275mm design allows for secure and reliable installation in industrial settings.

Equipped with screw terminals and a mechanical interlock, this socket ensures a firm connection, preventing accidental disconnections. Its robust construction enhances durability, making it ideal for demanding applications. Designed for safety and efficiency, it provides reliable performance in heavy-duty environments.

Tech Data:

Commercial Series: Omnia Series
Synthetical description: Interlocked Socket
Hour position: 6h
Rated voltage: 346-415V
Protection degree: Watertight
Terminals: Screw terminals
Contact material: CuZn (brass)
Flange: 136X125MM_PAR
Options: With mechanical interlock
Notes: WITHOUT FUSE HOLDER
Catalogue notes: Blank side with drilling point marks
Note: in case of mounting with ADVANCE2 System, use METRIC drilling point mark.

Downloads:

Technical Sheet

SKU: 505.6387

In stock

Quantity:

Free Standard Shipping

Eligible for Free Shipping Australia Wide on orders above AU$100

Scame Parre S.p.A 505.6387 Scame Omnia Interlocked Socket 3P+N+E 63A 6h IP66/67

$783.95 AUD

Tech Specs

Product specification

Commerical Series

OMNIA Series

Mounting Version

SURFACE MOUNTING

Rated Current

63A

Rated Voltage

346-415V

Poles

3P+N+E

505.6387 Scame Omnia Interlocked Socket 3P+N+E 63A 6h IP66/67

Product specification
