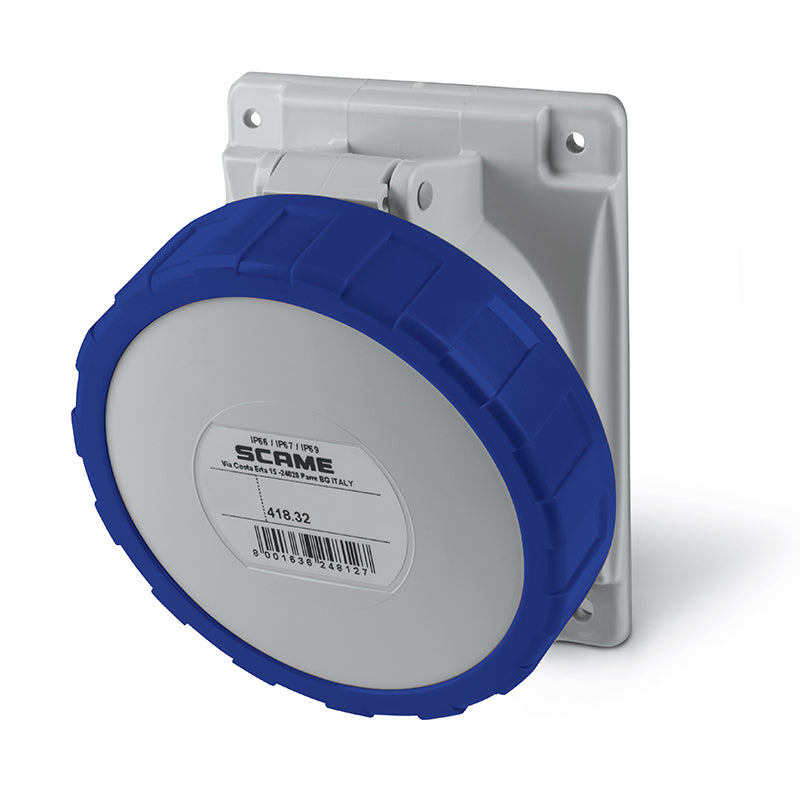

418.3263 Scame Optima Flush Mount Socket 2P+E IP66/IP67 32A 6h

The OPTIMA Series Flush-Mounting Socket Cod. 418.3263 is a high-performance industrial connector designed for 32A applications. It features a 2P+E configuration, supporting 200-250V at both 50Hz and 60Hz frequencies. With a standardized 6h keying, it ensures compatibility and safety, while the 84x106mm mounting size facilitates easy installation in various electrical panels.

Built for reliability, this socket includes screw terminals for a secure and stable wiring connection. The robust housing, combined with an IP-rated protective cap, enhances durability and safeguards against environmental factors, making it ideal for industrial and commercial power distribution needs.

Tech Data:

• Commercial Series: Optima Series
• Synthetical description: FLUSH-MOUNTING SOCKET
• Hour position: 6h
• Rated voltage: 200-250V
• Protection degree: Watertight
• Types of available outlets: Angled
• Terminals: Screw terminals

• Contact material: CuZn (brass)
• Flange: 84X106MM
• Catalogue notes: Version also available in black; just add “.K” at the end of the catalogue number.

Downloads:

• Technical Sheet
