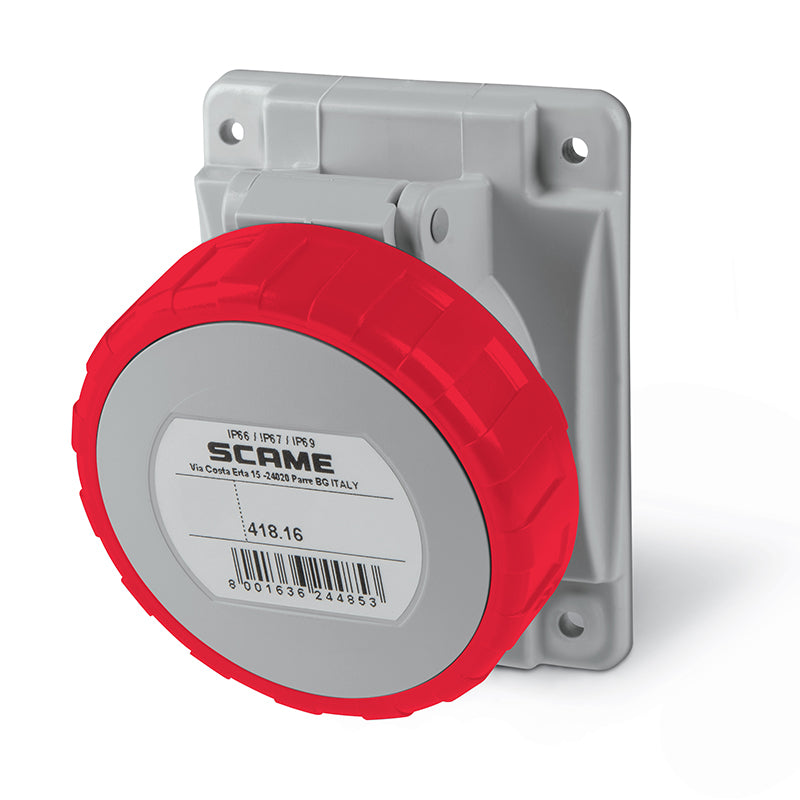

418.1666 Scame Optima Flush Mount Socket 3P+E IP66/IP67 16A 6h

The OPTIMA Series Flush-Mounting Socket Cod. 418.1666 is a durable and high-performance industrial connector designed for 16A power applications. With a 3P+E configuration, it operates at 380-415V and supports both 50Hz and 60Hz frequencies, ensuring compatibility with various power distribution systems. Its 6h keying prevents mismatched connections, while the compact 70x87mm mounting size allows easy installation in electrical enclosures and panels.

Constructed from robust materials, this socket is built to withstand demanding environments. The screw terminal design ensures a secure and stable wiring connection, enhancing safety and reducing maintenance requirements. Its red-colored locking cap indicates voltage compatibility, offering clear identification and added protection for industrial and commercial applications.

Tech Data:

• Commercial Series: Optima Series
• Synthetical description: FLUSH-MOUNTING SOCKET
• Hour position: 6h
• Rated voltage: 380-415V

• Protection degree: Watertight
• Types of available outlets: Angled
• Terminals: Screw terminals

• Contact material: CuZn (brass)
• Flange: 70X87MM
• Catalogue notes: Version also available in black; just add “.K” at the end of the catalogue number.

Downloads:

• Technical Sheet
