318.32464 Scame Optima IEC Connector 32A 3P+E 3h IP66/IP67/IP69

Name: 318.32464 Scame Optima IEC Connector 32A 3P+E 3h IP66/IP67/IP69
Brand: Scame Parre S.p.A
SKU: 318.32464
Price: 80.95 AUD
Availability: InStock

$80.95 AUD

Tax included. Shipping calculated at checkout

Description

The OPTIMA Series presents a comprehensive array of industrial plugs ranging from 16A to 125A. These plugs are engineered with sturdy and secure materials, including high-performance technopolymer bodies and an external cable gland featuring a cable clamp function, ensuring durability and safety. Offering a variety of terminal options, such as screw, spring, insulating perforation for currents up to 32A, or mantle terminals for the 63A and 125A versions, optimal connections are guaranteed to suit diverse usage and wiring requirements.

The longevity of the contacts is assured by nickel-plated brass pins, which resist oxidation and aging. Moreover, these plugs feature a user-friendly design with a snap-on steel spring mechanism for easy wiring. Committed to environmental sustainability, the OPTIMA Series plugs are manufactured using halogen-free materials.

Tech Data:

Commercial Series: Optima Series
Synthetical description: CONNECTOR
Hour position: 3h
Rated voltage: 380V 50Hz / 440V 60Hz
Protection degree: Watertight
Types of available outlets: STRAIGHT
Terminals: Screw terminals
Contact material: CuZn (brass)
Cable entry: CABLE GLAND

Downloads:

Technical Sheet

SKU: 318.32464

In stock

Quantity:

Free Standard Shipping

Eligible for Free Shipping Australia Wide on orders above AU$249
*Excludes Large and Bulky Items

Scame Parre S.p.A 318.32464 Scame Optima IEC Connector 32A 3P+E 3h IP66/IP67/IP69

$80.95 AUD

Tech Specs

Product specification

Commerical Series

OPTIMA Series

Mounting Version

PORTABLE

Rated Current

32A

Rated Voltage

380V 50Hz / 440V 60Hz

Poles

3P+E

Industrial Plugs and Sockets

OPTIMA Series

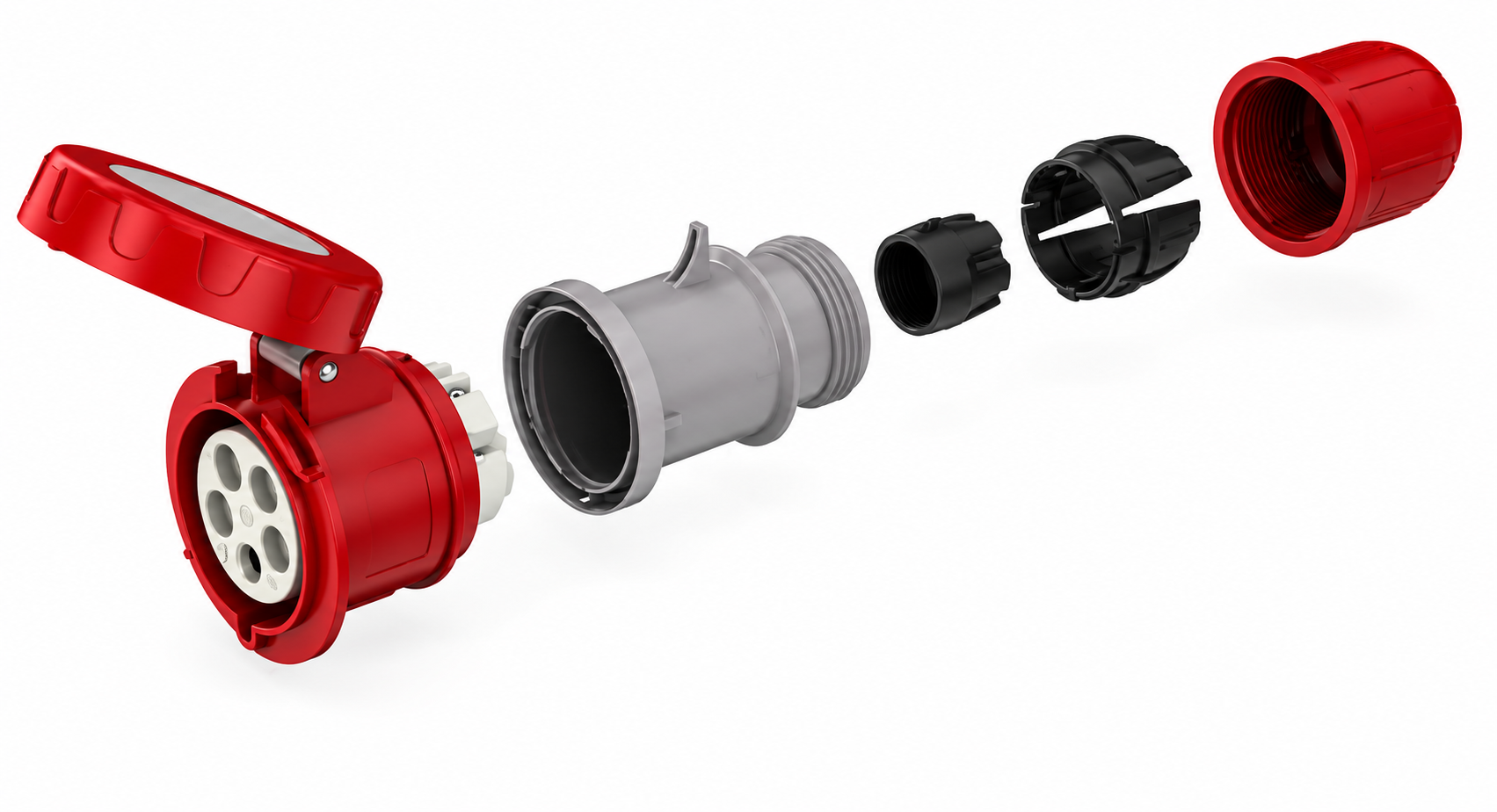

The OPTIMA range of industrial connectors is designed to deliver maximum performance, safety, and reliability across demanding industrial environments. Available from 16A to 125A, the series features robust halogen free technopolymer bodies combined with an external cable gland and integrated cable clamp for enhanced durability and secure installation.

Designed for fast and efficient wiring, OPTIMA connectors utilise a stainless steel Snap-on spring mechanism that allows quick body opening and simplified assembly. Multiple terminal options are available to suit different installation methods and application requirements, ensuring reliable electrical connections in every environment.

For added protection, the SAFE-IN versions include integrated protective shutters on the contact tubes to help prevent accidental contact with live parts. This makes them particularly suitable for installations in areas accessible to unqualified users, providing an additional layer of electrical safety.

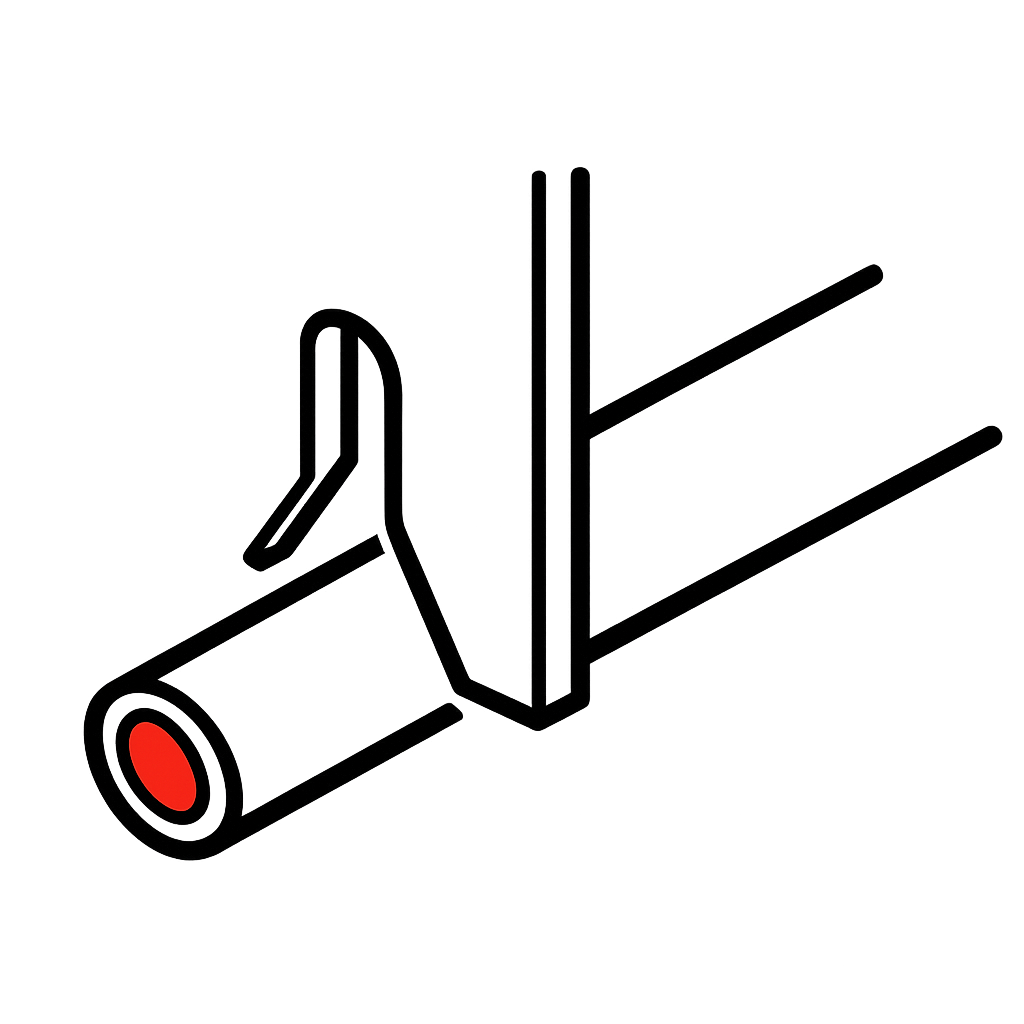

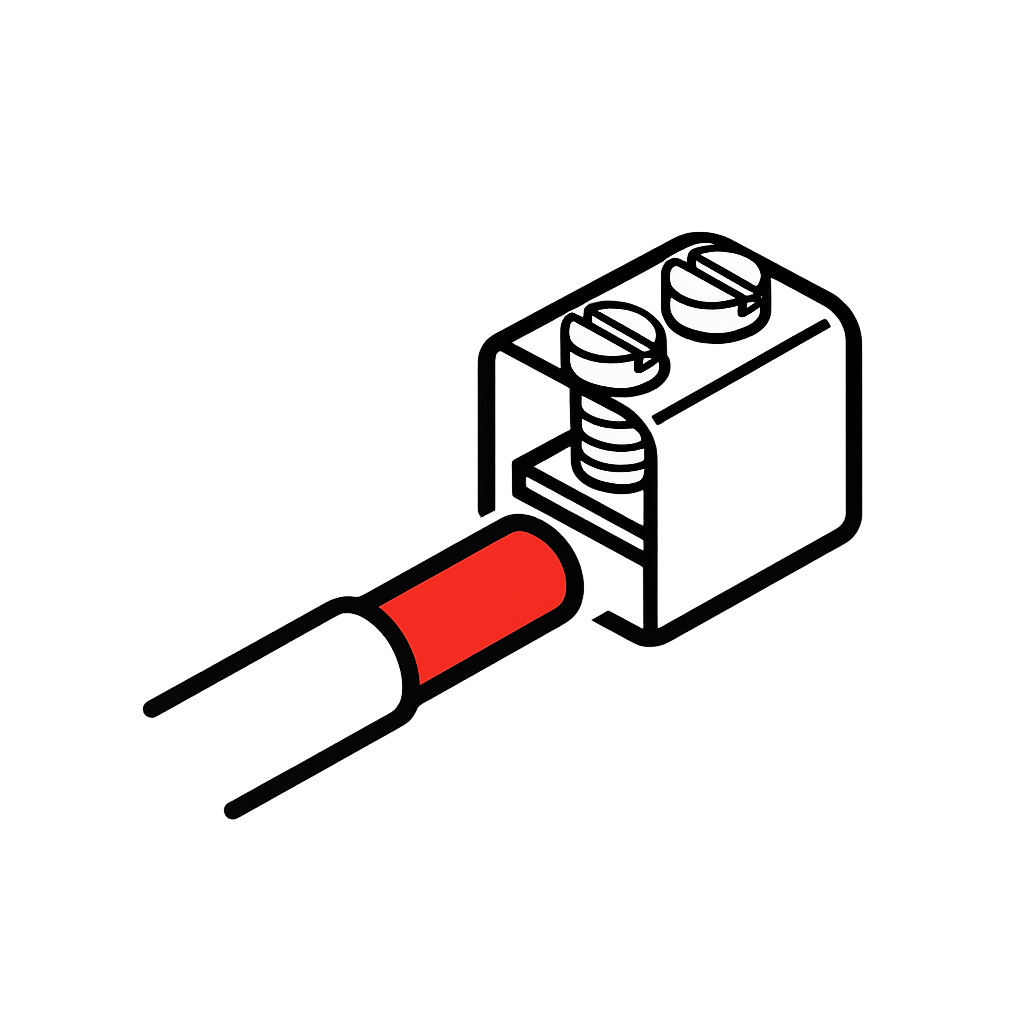

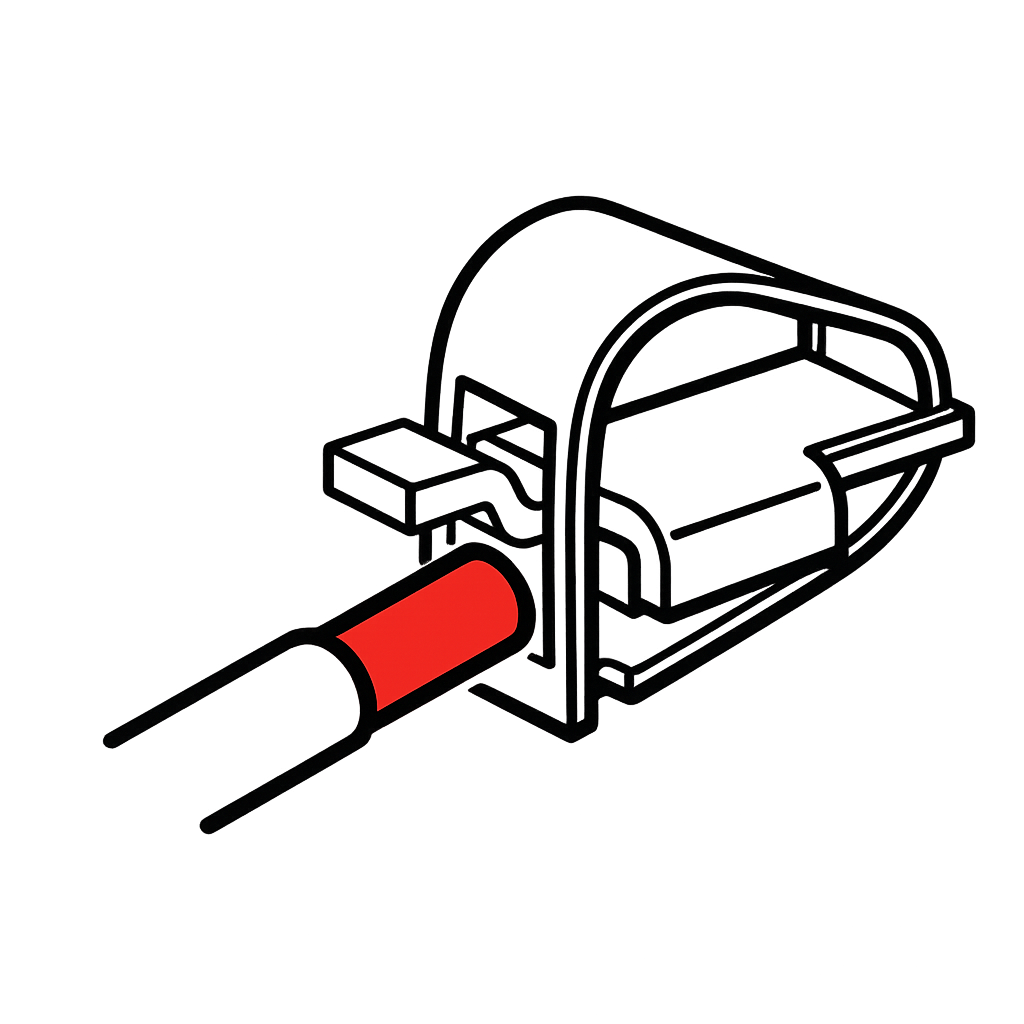

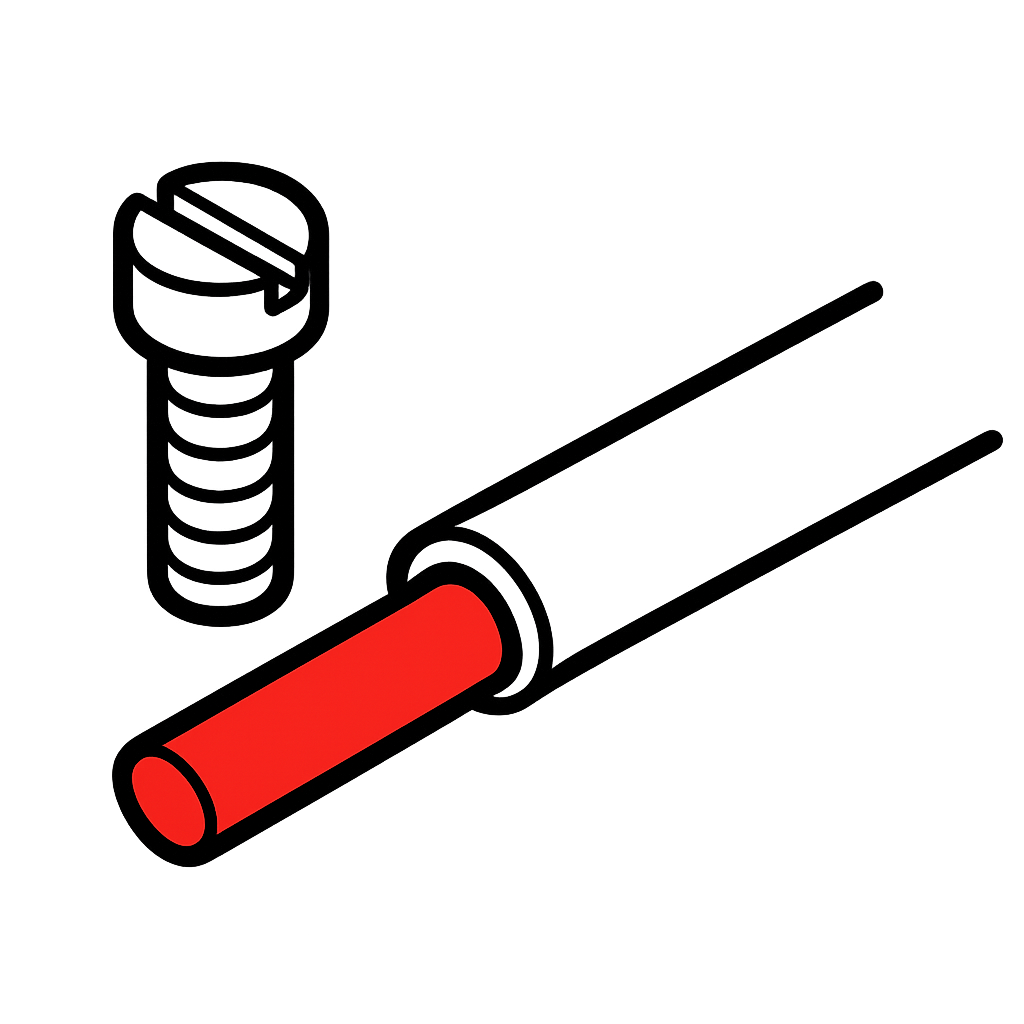

Built from halogen-free materials with high mechanical strength and excellent UV resistance, the unit is suited to demanding indoor and outdoor environments. Multiple terminal options are available to suit different applications, including screw terminals (16A–32A), insulation perforating terminals (16A), spring terminals (16A–32A), and mantle terminals (63A–125A). A tulip-style external cable clamp with integrated cable gland function provides secure cable retention and improved sealing performance.

Built from halogen-free materials with high mechanical strength and excellent UV resistance, the unit is suited to demanding indoor and outdoor environments. Multiple terminal options are available to suit different applications, including screw terminals (16A–32A), insulation perforating terminals (16A), spring terminals (16A–32A), and mantle terminals (63A–125A). A tulip-style external cable clamp with integrated cable gland function provides secure cable retention and improved sealing performance.
