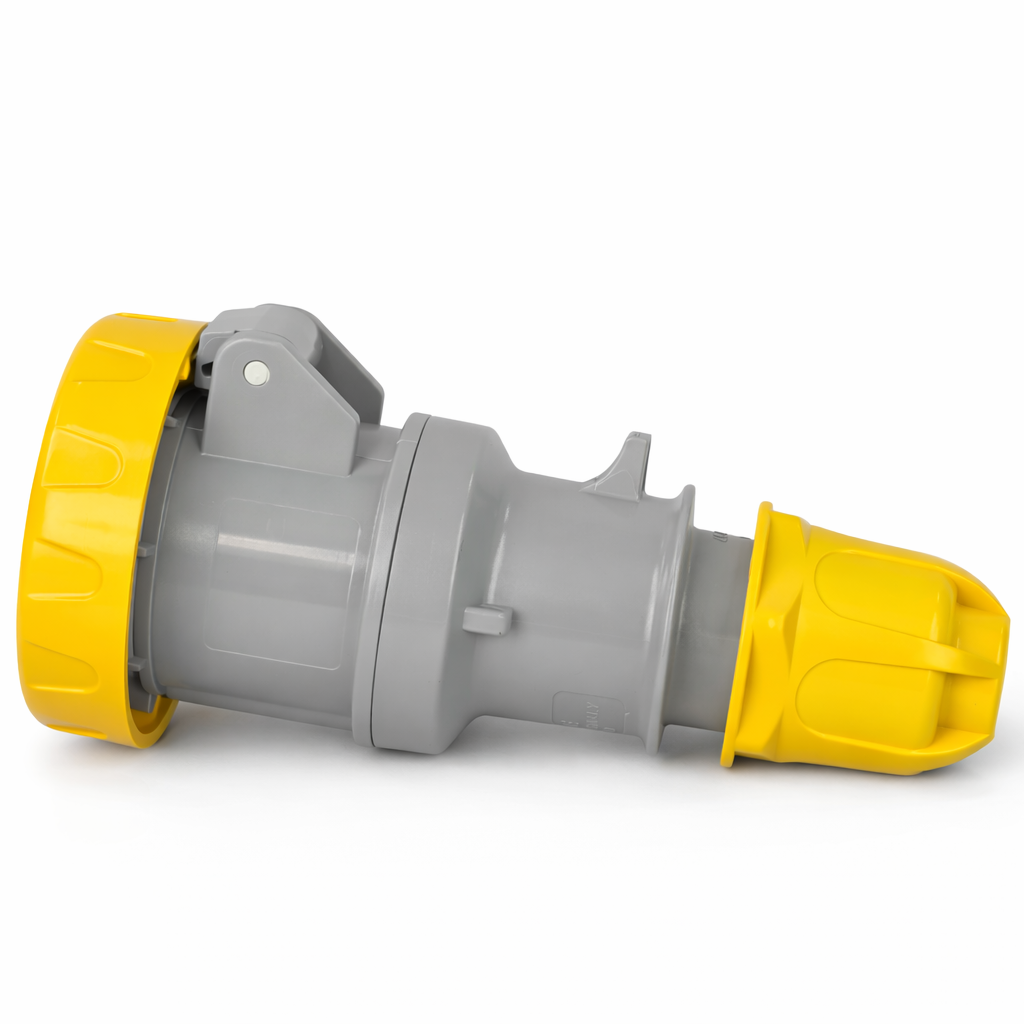

318.1640 Scame Optima IEC Connector 16A 2P+E 4h IP66/IP67/IP69

318.1640 Scame Optima IEC Connector 16A 2P+E 4h IP66/IP67/IP69

Name: 318.1640 Scame Optima IEC Connector 16A 2P+E 4h IP66/IP67/IP69
Brand: Scame Parre S.p.A
SKU: 318.164
Price: 62.95 AUD
Availability: InStock

$62.95 AUD

Tax included. Shipping calculated at checkout

Description

The OPTIMA Series connector is engineered for electrical industrial applications, offering a rated
voltage of 100-130V and a rated current of 16A. This connector features a 2P+E configuration and a
4h hour position, ensuring reliable performance across 50Hz and 60Hz working frequencies. With an
IP66/IP67/IP69 protection degree, it provides exceptional resistance to dust and water ingress. The
connector is equipped with screw terminals for secure and efficient connections. Available in a
straight outlet type, it is designed to meet the rigorous demands of industrial settings. A version
with a transparent handle is also available by adding “.TR” to the catalogue number.

Tech Data:

Commercial Series: Optima Series
Synthetical description: CONNECTOR
Hour position: 4h
Rated voltage: 100-130V
Protection degree: Watertight
Types of available outlets: STRAIGHT

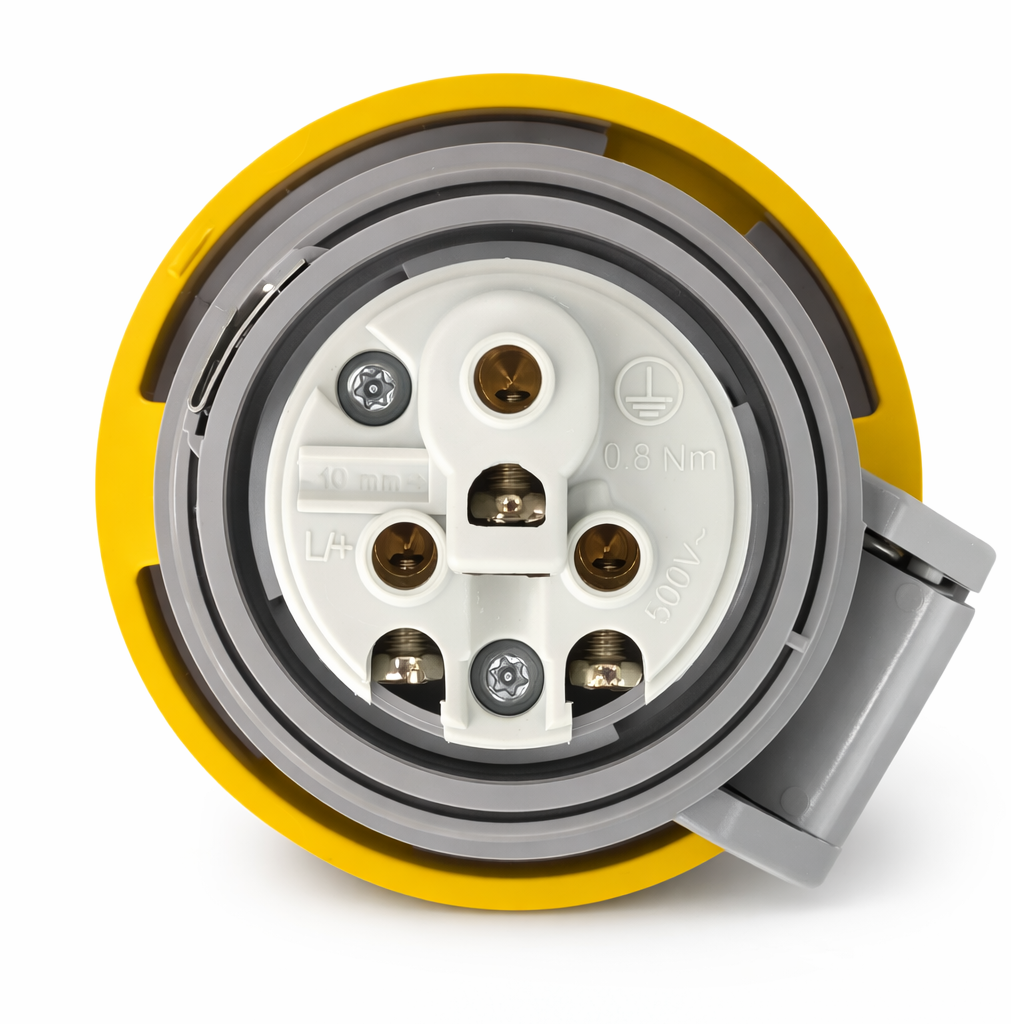

Terminals: Screw terminals
Contact material: CuZn (brass)
Cable entry: CABLE GLAND
Catalogue notes: Version also available in black; just add “.K” at the end of the catalogue number.

Downloads:

Technical Sheet

SKU: 318.164

In stock

Quantity:

Free Standard Shipping

Eligible for Free Shipping Australia Wide on orders above AU$249
*Excludes Large and Bulky Items

Scame Parre S.p.A 318.1640 Scame Optima IEC Connector 16A 2P+E 4h IP66/IP67/IP69

$62.95 AUD

Tech Specs

Product specification

Commerical Series

OPTIMA Series

Mounting Version

PORTABLE

Rated Current

16A

Rated Voltage

346-415V

Poles

2P+E

Industrial Plugs and Sockets

OPTIMA Series

The OPTIMA range of industrial connectors is designed to deliver maximum performance, safety, and reliability across demanding industrial environments. Available from 16A to 125A, the series features robust halogen free technopolymer bodies combined with an external cable gland and integrated cable clamp for enhanced durability and secure installation.

Designed for fast and efficient wiring, OPTIMA connectors utilise a stainless steel Snap-on spring mechanism that allows quick body opening and simplified assembly. Multiple terminal options are available to suit different installation methods and application requirements, ensuring reliable electrical connections in every environment.

For added protection, the SAFE-IN versions include integrated protective shutters on the contact tubes to help prevent accidental contact with live parts. This makes them particularly suitable for installations in areas accessible to unqualified users, providing an additional layer of electrical safety.

Built from halogen-free materials with high mechanical strength and excellent UV resistance, the unit is suited to demanding indoor and outdoor environments. Multiple terminal options are available to suit different applications, including screw terminals (16A–32A), insulation perforating terminals (16A), spring terminals (16A–32A), and mantle terminals (63A–125A). A tulip-style external cable clamp with integrated cable gland function provides secure cable retention and improved sealing performance.

Built from halogen-free materials with high mechanical strength and excellent UV resistance, the unit is suited to demanding indoor and outdoor environments. Multiple terminal options are available to suit different applications, including screw terminals (16A–32A), insulation perforating terminals (16A), spring terminals (16A–32A), and mantle terminals (63A–125A). A tulip-style external cable clamp with integrated cable gland function provides secure cable retention and improved sealing performance.
