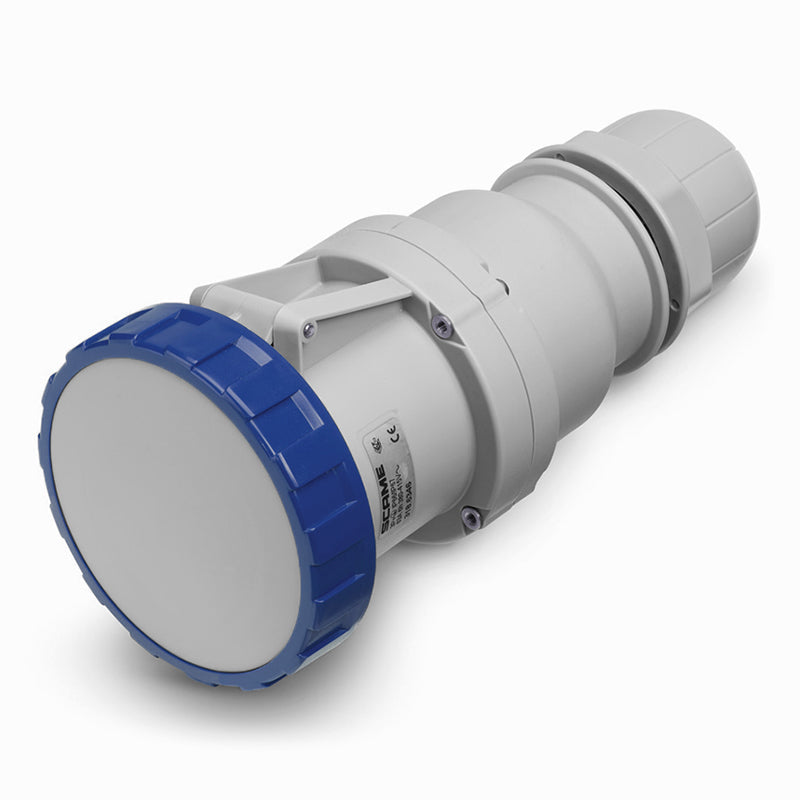

318.12543 Scame Optima IEC Connector 125A 2P+E 6h IP66/IP67/IP69

The OPTIMA Series presents a comprehensive array of industrial plugs and connectors ranging from 16A to 125A. These devices are engineered with sturdy and secure materials, including high-performance technopolymer bodies and an external cable gland featuring a cable clamp function, ensuring durability and safety. Offering a variety of terminal options, such as screw, spring, insulating perforation for currents up to 32A, or mantle terminals for the 63A and 125A versions, optimal connections are guaranteed to suit diverse usage and wiring requirements.

The longevity of the contacts is assured by nickel-plated brass pins, which resist oxidation and aging. Moreover, these devices feature a user-friendly design with a snap-on steel spring mechanism for easy wiring. Committed to environmental sustainability, the OPTIMA Series is manufactured using halogen-free materials.

The 318.12543 connector is engineered for demanding industrial electrical applications, offering a rated voltage of 200-250V and a rated current of 125A. It features a 2P+E configuration and a 6h hour position, ensuring reliable performance across 50Hz and 60Hz frequencies. With an IP66/IP67/IP69 protection degree and IK08 impact rating, it provides exceptional resistance to dust, water ingress and mechanical shock. The connector is equipped with mantle terminals for secure connections and features an EASY-PLUG design for user convenience.

Tech Data:

• Commercial Series: Optima Series
• Synthetical description: CONNECTOR
• Rated current: 125A
• Poles: 2P+E
• Hour position: 6h
• Rated voltage: 200-250V
• Working frequency: 60Hz / 50Hz
• Mounting version: PORTABLE
• Colour: BLUE
• Material: THERMOPLASTIC
• Protection degree: Watertight
• Protection degree IP: IP66/IP67/IP69
• Protection degree IK: IK08
• Types of available outlets: STRAIGHT
• Terminals: Mantle terminals
• Contact material: CuZn (brass)
• Cable entry: CABLE GLAND
• Reference standard: EN IEC 60309-1 (2022), EN IEC 60309-2 (2022)
• Laws: Low voltage direct. 2014/35/EU
• Notes: EASY-PLUG
• Catalogue notes: Version also available in black; just add “.K” at the end of the catalogue number.
