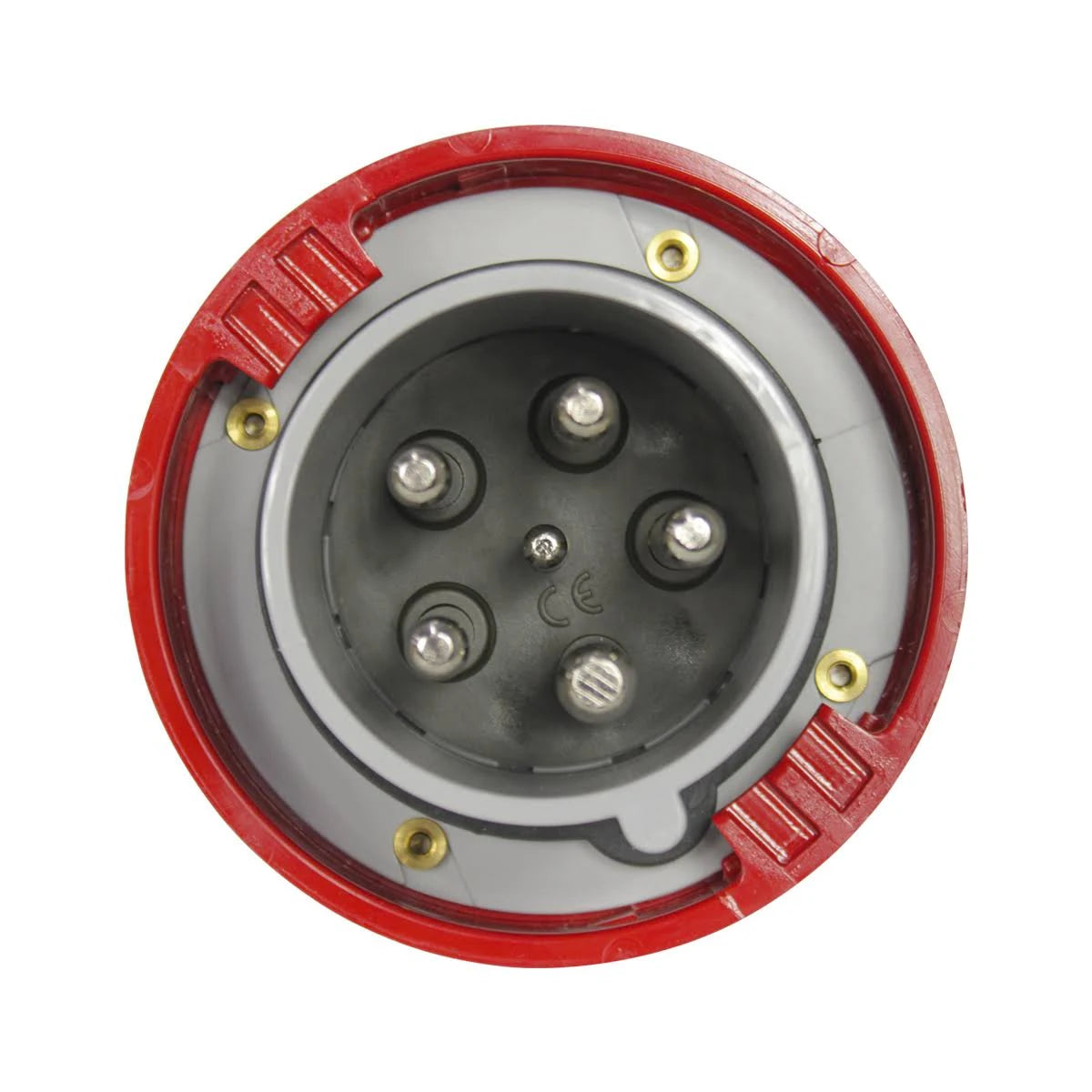

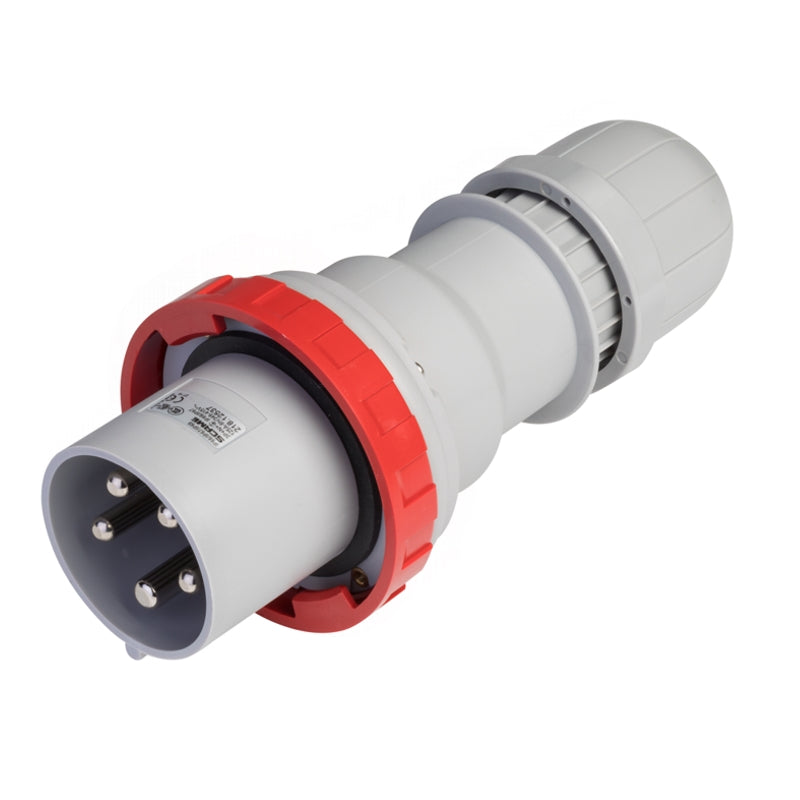

218.6337 - SCAME Optima IEC Plug 63A 3P+N+E 6h 346-415V

The OPTIMA Series presents a comprehensive array of industrial plugs ranging from 16A to 125A. These plugs are engineered with sturdy and secure materials, including high-performance technopolymer bodies and an external cable gland featuring a cable clamp function, ensuring durability and safety. Offering a variety of terminal options, such as screw, spring, insulating perforation for currents up to 32A, or mantle terminals for the 63A and 125A versions, optimal connections are guaranteed to suit diverse usage and wiring requirements.

The longevity of the contacts is assured by nickel-plated brass pins, which resist oxidation and aging. Moreover, these plugs feature a user-friendly design with a snap-on steel spring mechanism for easy wiring. Committed to environmental sustainability, the OPTIMA Series plugs are manufactured using halogen-free materials.

Tech Data:

• Commercial Series: OPTIMA Series
• Synthetical description: PLUG
• Hour position: 6h
• Rated voltage: 346-415V
• Protection degree: Watertight
• Types of available outlets: STRAIGHT
• Terminals: Mantle terminals

• Contact material: CuZn (brass)
• Surface treatment contacts: Nickel-plated
• Cable entry: CABLE GLAND
• Notes: EASY-PLUG

• Catalogue notes: Version also available in black; just add “.K” at the end of the catalogue number.

Downloads:

• Technical Sheet
