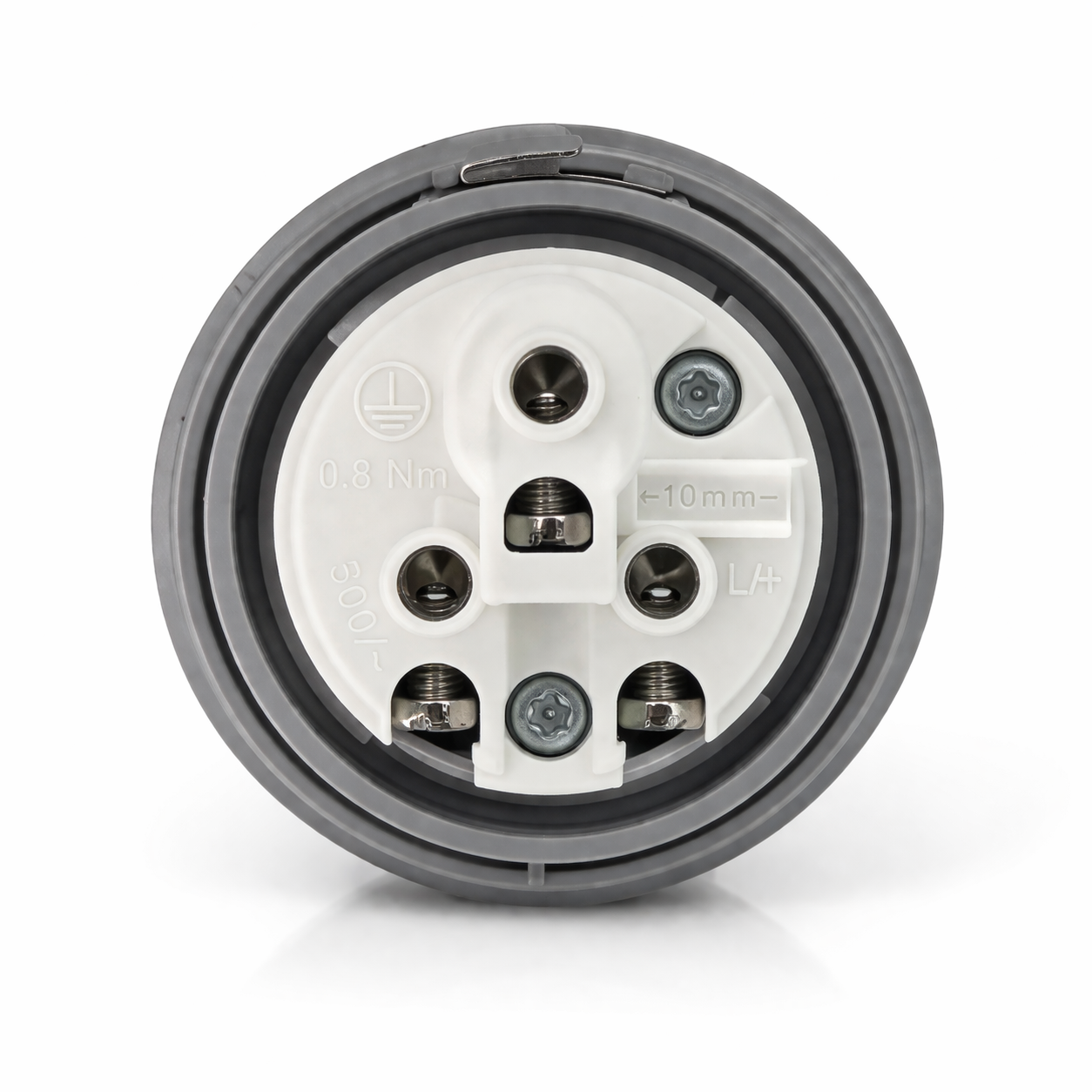

213.1633 - SCAME IEC PLUG 2P+E IP44 16A 6h 200-250V AC

The OPTIMA Series presents a comprehensive array of industrial plugs ranging from 16A to 125A. These plugs are engineered with sturdy and secure materials, including high-performance technopolymer bodies and an external cable gland featuring a cable clamp function, ensuring durability and safety. Offering a variety of terminal options, such as screw, spring, insulating perforation for currents up to 32A, or mantle terminals for the 63A and 125A versions, optimal connections are guaranteed to suit diverse usage and wiring requirements.

The longevity of the contacts is assured by nickel-plated brass pins, which resist oxidation and aging. Moreover, these plugs feature a user-friendly design with a snap-on steel spring mechanism for easy wiring. Committed to environmental sustainability, the OPTIMA Series plugs are manufactured using halogen-free materials.

Tech Data

• Commercial series:    OPTIMA Series
• Synthetical description:    PLUG
• Evidence:    PRODUCT IN EVIDENCE (ON)
• Utilization:    Industry
• Hard copy:    SYSTEM CATALOG
• Catalogue notes:   1. Version also available in black; just add “.K” at the end of the catalogue number. 2. Version also available with transparent handle; just add “.TR” at the end of the catalogue number.
• Scenario:    BUILDING, CAMPING
• Rated voltage:    200-250V
• Hour position:    6h
• Type of current:    AC
• Terminals:    Screw terminals
• Type of connection:    With screw
• Rated voltage (range):    200-250V
• Laws:    Low voltage direct. 2014/35/EU
• Reference standard:    EN 60309-1 (1999), EN 60309-2 (1999), EN 60309-1/A1 (2007), EN 60309-2/A1 (2007), EN 60309-1/A2 (2012), EN 60309-2/A2 (2012)
• Marking:    CE Marking
• Marking:   UKCA Marking
• Cable entry:    CABLE GLAND
• Types of available outlets:    STRAIGHT
• Surface treatment contacts:    Nickel-plated
• Generic material:    Plastic
• Protection degree:    Splash proof
• Contact material:    CuZn (brass)
• Commercial series:    OPTIMA Series


Downloads:

• Technical Sheet
