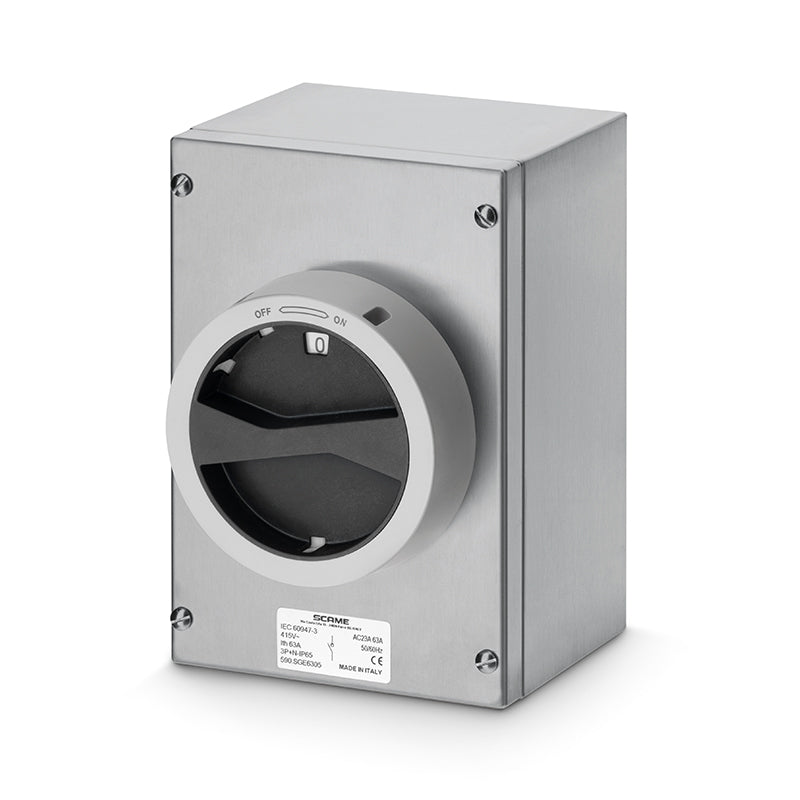

SCAME Switch Disconnector 80A 3P+SN IP65 (General - Grey/Black)

The ISOLATORS-INOX Series switch disconnector is designed for general applications, with a durable stainless steel (AISI304L) enclosure built to resist corrosion in demanding environments. With a grey/black handle, this device supports a rated current of 80A at AC23A (415V) and operates at a rated voltage of 690V. This version is fitted with a neutral link (SN) for unswitched neutral connection.

The enclosure offers a protection degree of IP65 and IK10 impact resistance, suitable for hygiene-critical, marine, and harsh industrial environments where ordinary enclosures corrode. It is configured with 3P+SN poles and a Y4 switch size, for surface mounting.

Key Features

• Rated Current: 80A (AC23A 415V)
• Poles: 3P+SN (unswitched neutral link)
• Enclosure: Stainless steel (AISI304L), surface mount
• Protection: IP65, IK10 impact rating
• Colour: Grey/Black
• Switch Size: Y4
• Dimensions: 150 x 220 x 120 mm
• Rated Voltage: 690V
• Handle: Padlockable in OFF position (3 padlocks)
• Features: Door interlock, blank sides, solid neutral terminal block
