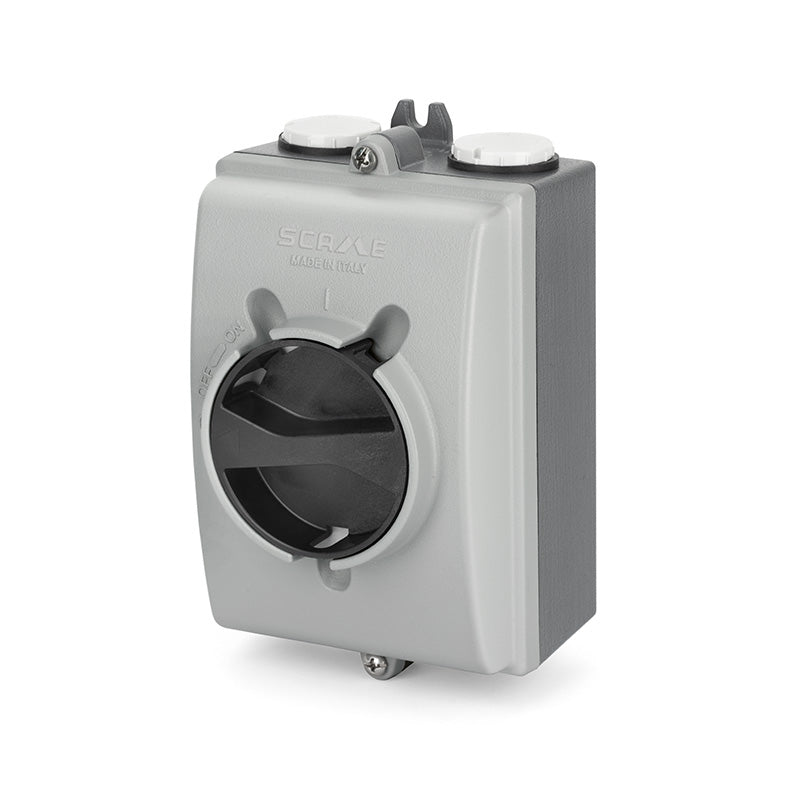

SCAME Switch Disconnector 80A 4P(3P+N) IP66 (General - Grey/Black)

The ISOLATORS-AL[EVO] Series switch disconnector is built for general-purpose industrial use, with a die-cast aluminium enclosure and a grey/black handle for a clean, professional finish suited to commercial and industrial switchboards.

Rated at 80A and operating efficiently at 67A under AC23A (415V) conditions, it's configured as 4P(3P+N) with a late break and early make neutral pole, and a Y2 switch size, rated up to 690V. It carries a high IP66 protection rating together with IK10 impact resistance.

The unit features a lockable door interlock and a handle that can be padlocked in both the OFF position (up to three padlocks) and the ON position (one padlock). Cable entry is via an open threaded entry with cap and cable sleeve for a clean, sealed termination.
