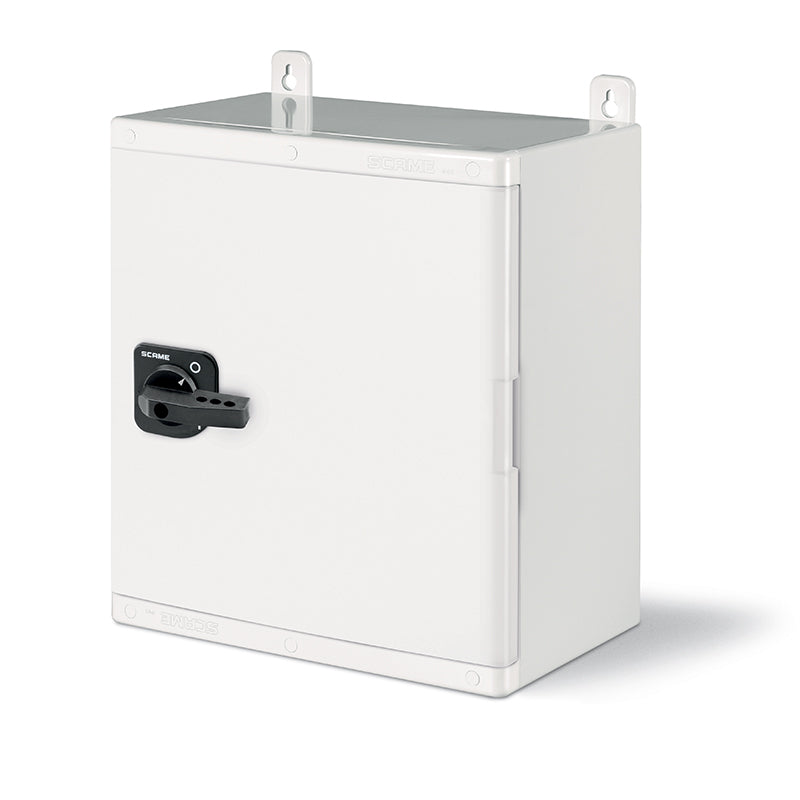

SCAME Switch Disconnector 250A 4P(3P+N) IP65 (General - Grey/Black)
Tax included. Shipping calculated at checkout
Eligible for Free Shipping Australia Wide on orders above AU$249
*Excludes Large and Bulky Items
SCAME Switch Disconnector 250A 4P(3P+N) IP65 (General - Grey/Black)
Sale price$2,334.95 AUD
Tech Specs
Product specification
Commerical Series
ISOLATORS-TP Series
Synthetical Description
SWITCH DISCONNECTOR
Mounting Version
SURFACE MOUNTING
Rated Current
250A
Rated Voltage
690V
Poles
4P(3P+N)
Colour
GREY/BLACK
Material
ENGINEERING PLASTIC
Protection Degree IP
IP65
Protection Degree IK
IK08
Switch Size
K2
Rated insulation voltage (Ui)
1000VAC
Rated impulse voltage (Uimp)
12KV
Thermal current (Ithe)
250A
Current (Ie) in AC21A (415V)
250A
Current (Ie) in AC21A (500V)
250A
Current (Ie) in AC21A (690V)
250A
Current (Ie) in AC22A (415V)
250A
Current (Ie) in AC22A (500V)
250A
Current (Ie) in AC22A (690V)
250A
Current (Ie) in AC23A (415V)
250A
Current (Ie) in AC23A (500V)
200A
Current (Ie) in AC23A (690V)
160A
Power AC23A (415V)
132kW
Short-time current
8kA Icw(1s)
Conditional short circuit cur.
50kAeff
