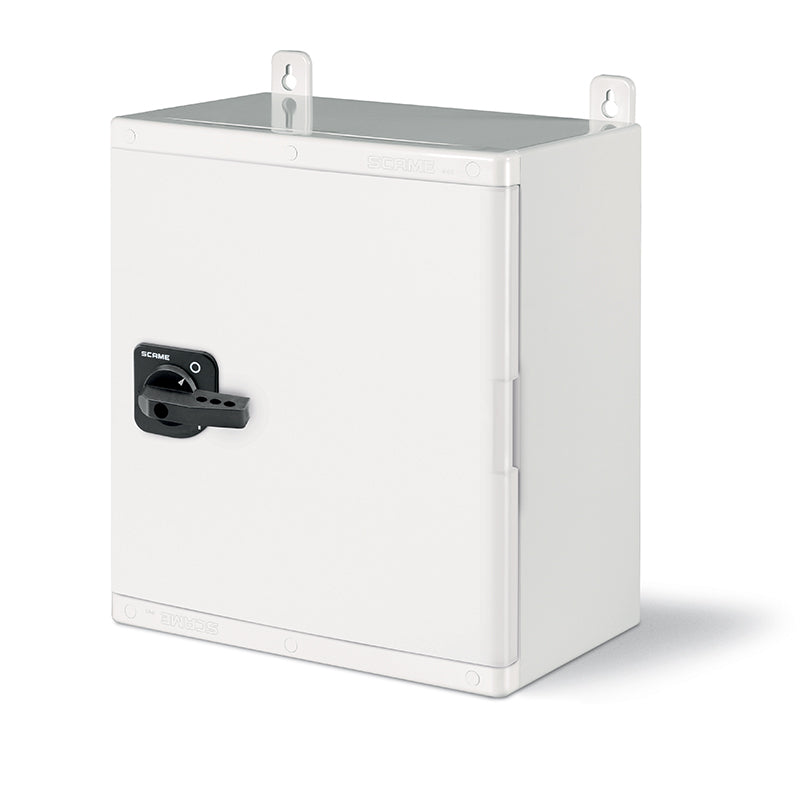

SCAME Switch Disconnector 160A 3P+SN IP65 (General - Grey/Black)

The ISOLATORS-TP Series switch disconnector is purpose-built for general industrial and commercial applications requiring reliable load isolation and enhanced operator safety. Constructed from robust engineering plastic, this enclosed surface-mount isolator provides exceptional durability and ingress protection, rated IP65 and IK08 for impact resistance. This version is fitted with a neutral link (SN) for unswitched neutral connection.

Its high-visibility grey/black handle supports lockout capability in both the OFF (up to three padlocks) and ON (one padlock) positions, ensuring compliance with safety lockout procedures. The unit includes a door interlock for added protection.

Designed for dependable performance, it operates at a rated current of 160A (AC23A at 415V), supports up to 690VAC insulation voltage, and delivers reliable isolation in demanding environments.

Key Features

• Rated Current: 160A (AC23A 415V)
• Poles: 3P+SN (unswitched neutral link)
• Enclosure: Engineering plastic, surface mount
• Protection: IP65, IK08 impact rating
• Switch Size: K2
• Handle: Grey/Black, padlockable (OFF 3x / ON 1x padlocks)
• Features: Door interlock, solid neutral terminal block
