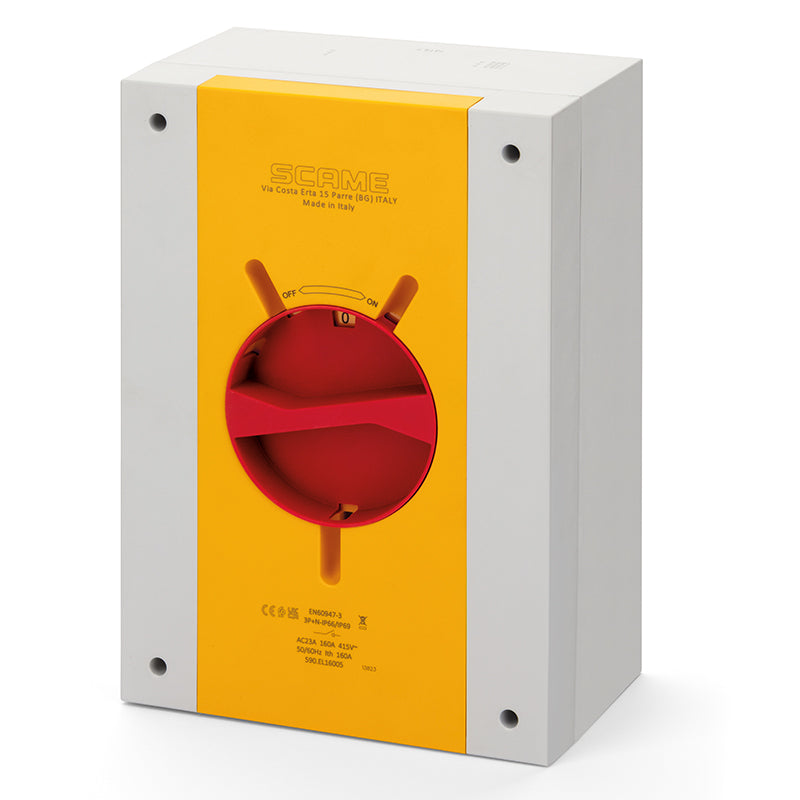

SCAME Switch Disconnector 125A 3P+N IP66/IP69 (Yellow/Red - Lockable ON-OFF)

The ISOLATORS-TP Series switch disconnector is purpose-built for general industrial and commercial applications requiring reliable load isolation, featuring a lockable ON-OFF mechanism for enhanced operator safety. Constructed from robust engineering plastic, this enclosed surface-mount isolator provides exceptional durability and ingress protection, rated IP66/IP69 and IK09 for impact resistance.

Its high-visibility yellow/red handle supports lockable operation in both the OFF and ON positions, ensuring compliance with safety lockout procedures. The unit includes a reversible base and door interlock for added installation flexibility and protection.

Designed for dependable performance, it operates at a rated current of 125A (AC23A at 415V), supports up to 690VAC insulation voltage, and delivers reliable isolation in demanding environments.

Key Features

• Rated Current: 125A (AC23A 415V)
• Poles: 3P+N (late break/early make neutral pole)
• Enclosure: Engineering plastic, surface mount
• Protection: IP66/IP69, IK09 impact rating
• Switch Size: Y5
• Handle: Yellow/Red, lockable ON-OFF
• Dimensions: 228 x 308 x 128 mm
• Features: Door interlock, reversible base, blank side drilling points, break-through cable entries
