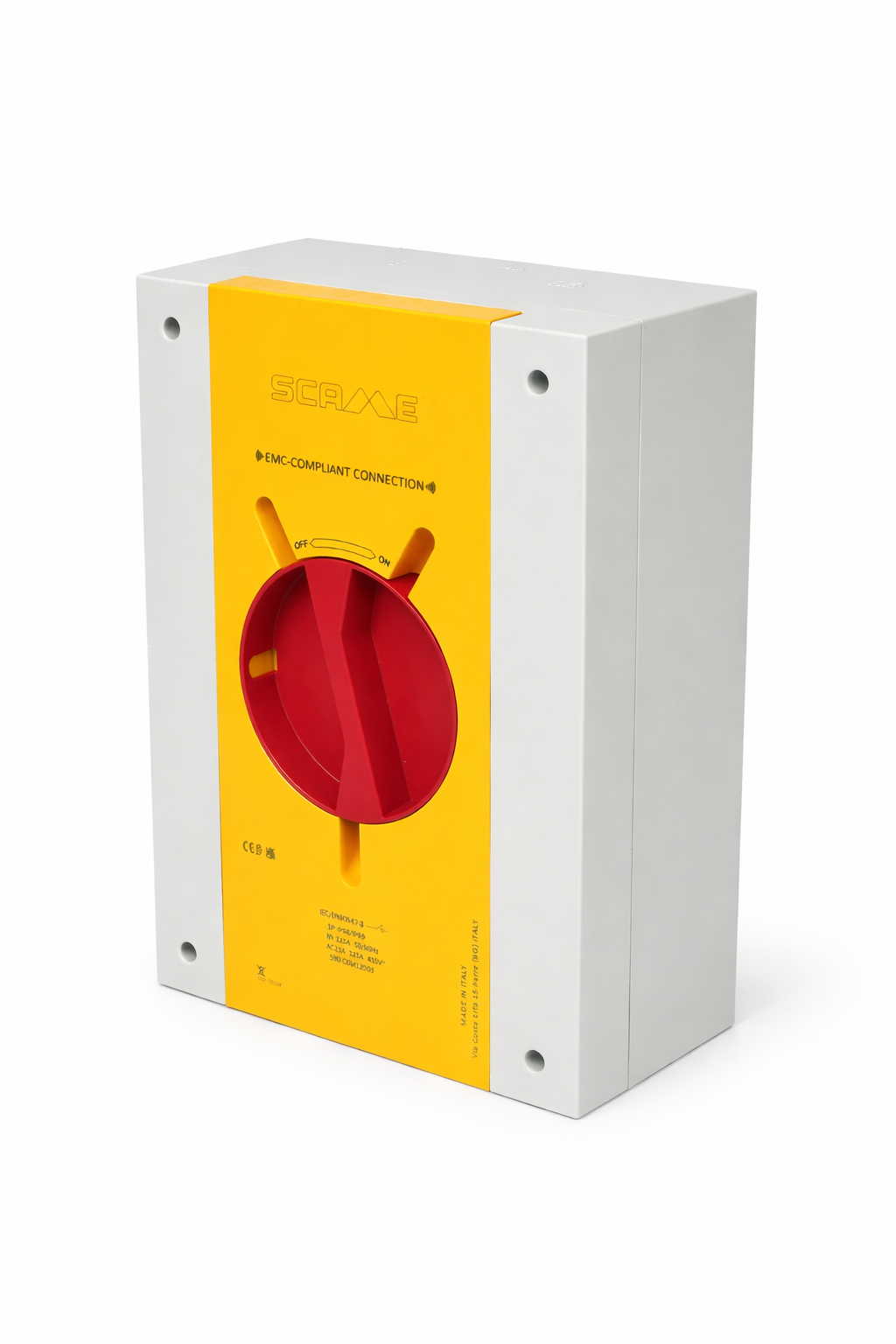

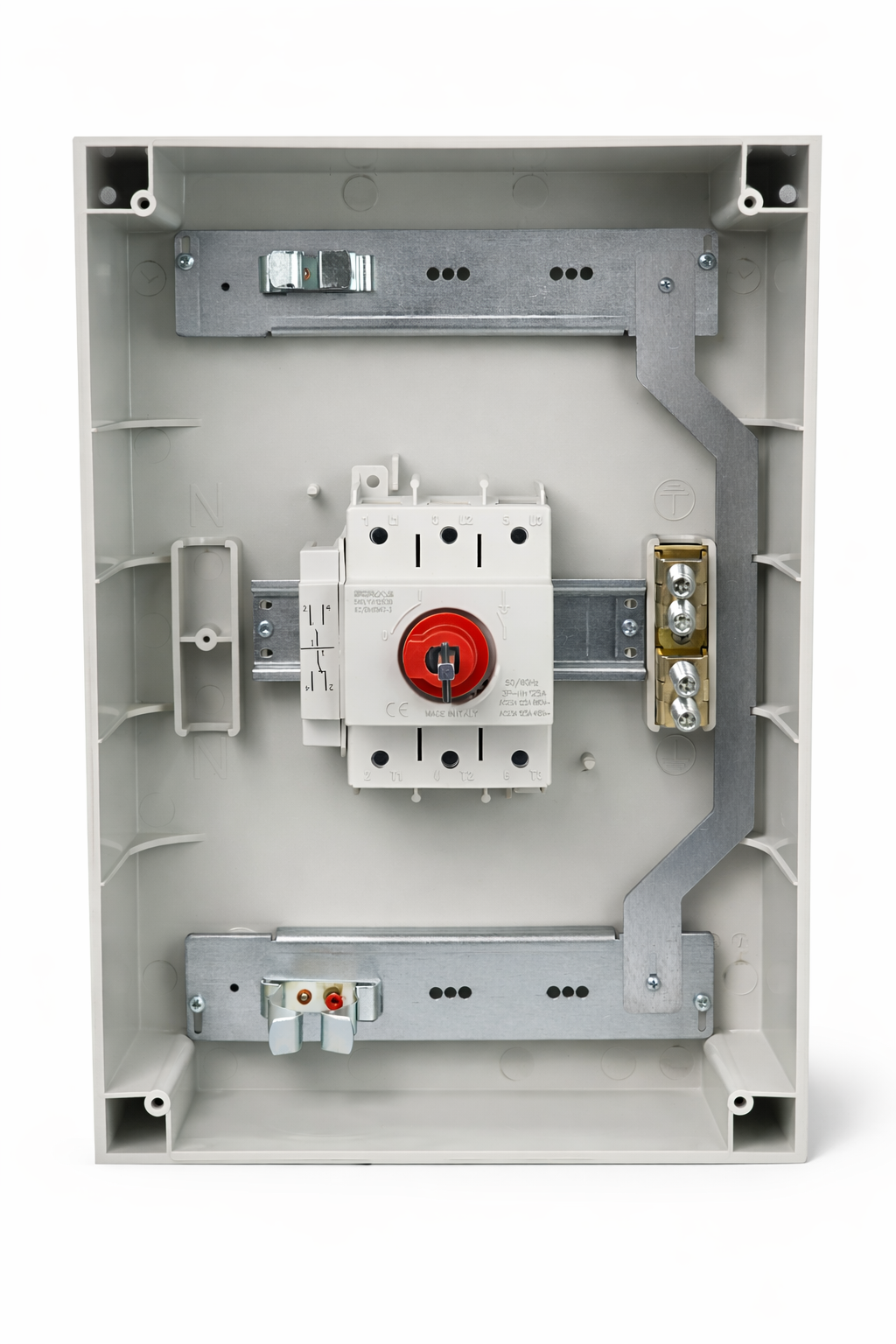

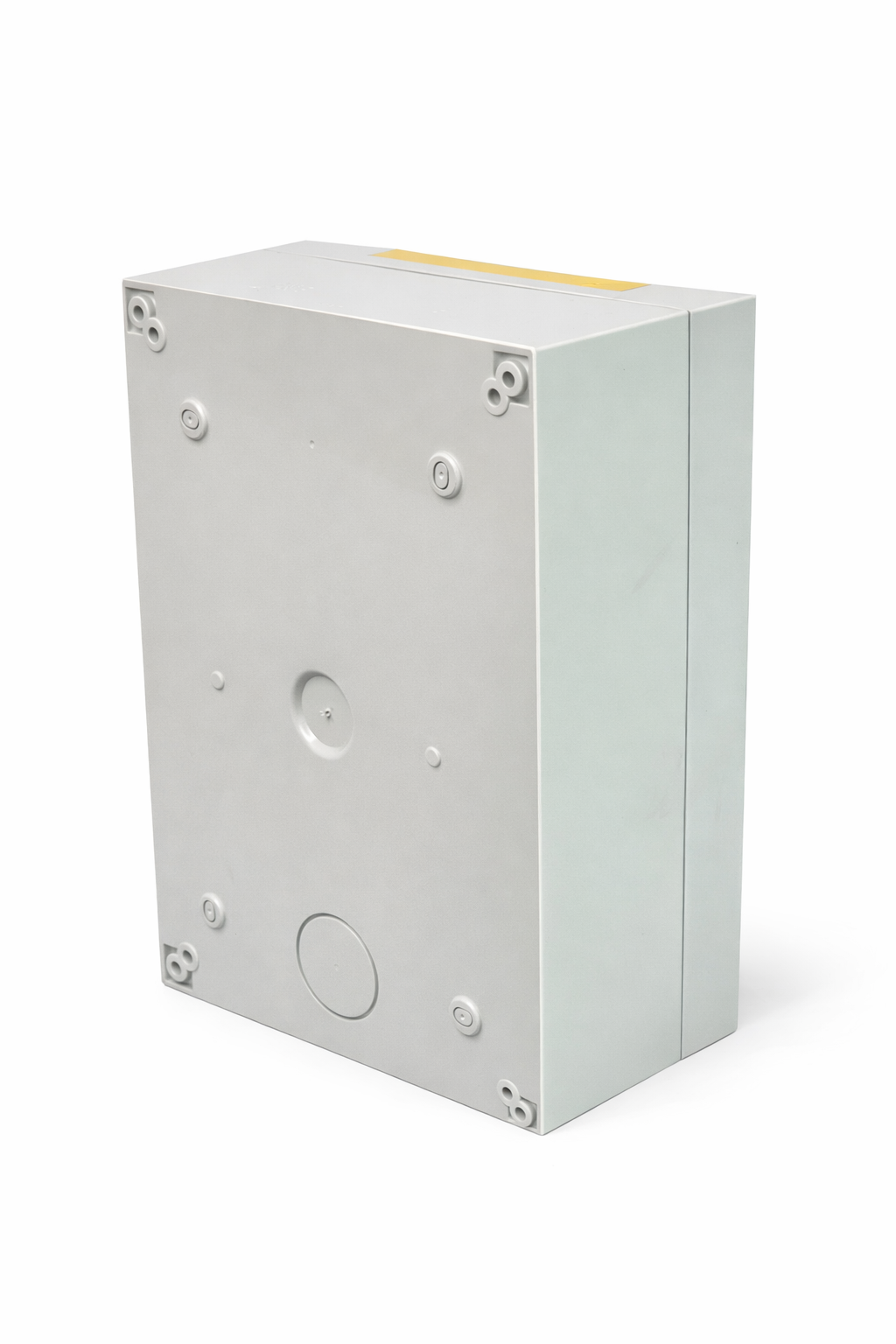

SCAME Switch Disconnector 125A 3P IP66/IP69 (Emergency - Yellow/Red)

The ISOLATORS-TP Series switch disconnector is engineered for emergency switching applications in demanding environments. Built from durable engineering plastic with a high-visibility yellow/red handle, it carries a rated current of 125A and operates at 125A in AC23A (415V) at a rated voltage of 690V.

The enclosure delivers an exceptional IP66/IP69 protection degree and IK09 impact resistance, making it suitable for high-pressure washdown, dusty, and otherwise harsh industrial settings. It is configured with 3P poles in a Y5 switch size for surface mounting, and features an EMC (Electromagnetic Compatibility) compliant connection.

Key Features

• Rated Current: 125A (AC23A 415V)
• Poles: 3P
• Enclosure: Engineering plastic, surface mount, reversible base
• Protection: IP66/IP69, IK09 impact rating, GW 650°C glow wire
• Colour: Yellow/Red
• Switch Size: Y5
• Dimensions: 240 x 340 x 137 mm
• Rated Voltage: 690V
• Handle: Padlockable in OFF position (3 padlocks)
• Features: Door interlock, EMC compliant connection, cable shielding 22-30mm, break-through cable entries on bottom side base
