SCAME Stainless Steel Isolator Switch 100A 3P+N IP65 — Emergency

Name: SCAME Stainless Steel Isolator Switch 100A 3P+N IP65 — Emergency
Brand: SCAME PARRE S.P.A
SKU: 590.SEM10005
Price: 1585.95 AUD
Availability: InStock

$1,585.95 AUD

Tax included. Shipping calculated at checkout

Description

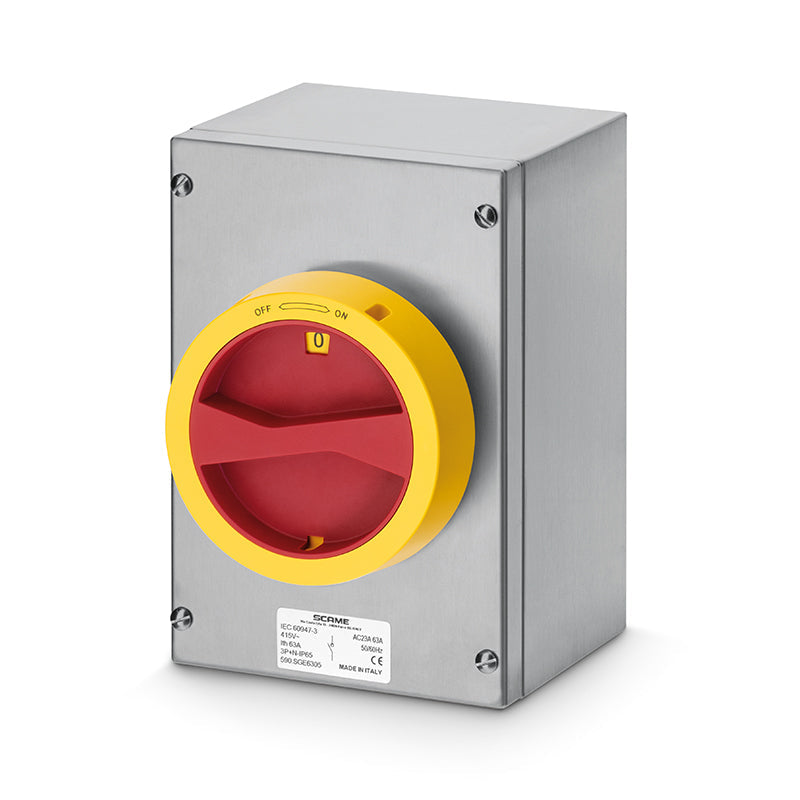

The switch disconnector ISOLATORS-INOX Series is designed for emergency applications, featuring a durable stainless steel [AISI304L] construction. It includes a handle in yellow/red for enhanced visibility. This device supports a rated current of 100A and operates efficiently at 100A in AC23A (415V). It offers a protection degree of IP65 and an impact resistance of IK10, ensuring resilience in demanding environments. The switch disconnector is configured with 3P+N poles and features a late break and early make neutral pole, with a Y4 switch size, operating at a rated voltage of 690V. Additional features include a door interlock, a padlockable handle in the OFF position for up to three padlocks, and a surface mounting version with blank sides.

SKU: 590.SEM10005

In stock

Quantity:

Free Standard Shipping

Eligible for Free Shipping Australia Wide on orders above AU$249
*Excludes Large and Bulky Items

SCAME PARRE S.P.A SCAME Stainless Steel Isolator Switch 100A 3P+N IP65 — Emergency

$1,585.95 AUD

Product specifications

YOUR SELECTED MODEL

590.SEM10005

The specifications below belong to this product. Use them to confirm the current, pole configuration, protection rating and enclosure dimensions required for your installation.

Download datasheet

Rated current at AC22A

100A

Rated voltage

690V

Poles

3P+N

Protection degree IP

IP65

Protection degree IK

IK10

Material

Stainless Steel [AISI304L]

Colour

Yellow/Red

Dimensions

150x220x120mm

ISOLATORS-INOX

Stainless steel for demanding environments.

AISI 304L stainless steel switch-disconnectors with a fine satin finish and enclosure details designed to reduce dirt accumulation.

Designed for applications where hygiene and corrosion resistance matter, including food and pharmaceutical environments. General-use and emergency-use versions are available, with AISI 316L enclosures on request.

AISI 304LStainless steelIP65 · IK10Enclosure protection

SCAME INOX stainless steel isolator range

INOX stainless steel isolator with construction details numbered 01 to 07

MAIN CHARACTERISTICS

Designed around the details

01
Blank sides without factory drillings help avoid dirt traps.
02
Ergonomic XXL handle for a secure, comfortable grip.
03
AISI 304L stainless steel enclosure with fine satin finish. AISI 316L available on request.
04
General-use handles padlock OFF with three padlocks or ON with one. Emergency handles padlock OFF only.
05
Door locking with the switch in the ON position.
06
AC23 switching duty, with provision for up to two auxiliary contacts.
07
Wall fixing with cantilevered brackets designed to prevent dirt deposits.

Illustrated general-use version. Confirm the selected model's configuration, dimensions and ratings using its datasheet.

SELECT THE RIGHT VERSION

More room when wiring demands it

Standard enclosure

Standard 20–40A 2–4-pole versions use a compact 100 × 160 × 90mm enclosure, with blank faces for cable-entry preparation.

High wiring capacity · .W

The 20–40A .W versions use a wider 150 × 160 × 90mm enclosure for additional wiring space. Choose .WSN to combine that extra room with an unswitched solid neutral.

PLAN YOUR INSTALLATION

Choose, connect and install

Read the part number, compare handle options and plan the enclosure and cable entries.

How to read a part number

590.SGE4005.WSN

590.

PREFIX

SCAME article

S

MATERIAL

AISI 304L stainless steel

GE

VERSION

GE = general use
EM = emergency use

40

CURRENT

16–160A
AC22A at 415V

05

POLES

02 = 2P
03 = 3P
05 = 4P (3P+N)
06 = 6P
08 = 8P

.WSN

SUFFIX

.SN = unswitched solid neutral
.W = high wiring capacity
.WSN = both combined

Emergency vs General handle

The handle colour and padlocking arrangement identify the intended operating version.

Feature	General use · GE	Emergency use · EM
Handle / plate	Black / grey	Red / yellow
OFF padlocking	Up to 3 padlocks	Up to 3 padlocks
ON padlocking	1 padlock	Not available
Door interlock	Locked with switch ON	Locked with switch ON

Maximum padlock arch diameter: 6mm for 20–40A; 8mm for 63–160A. The enclosure door interlock is separate from padlocking the handle.

Cable-entry & enclosure guide

All INOX enclosures are supplied blank on every face. Prepare cable entries to suit the installation and the selected model's drawing.

Enclosure dimensions (mm)	Catalogue configuration	Cable-entry provision
100 × 160 × 90	20–40A · standard 2–4P	Blank on every face
150 × 160 × 90	20–40A · high wiring capacity	Blank on every face
150 × 220 × 120	63–100A · standard 3–4P	Blank on every face
250 × 280 × 120	16–100A · 6P / 8P	Blank on every face
300 × 400 × 150	125–160A	Blank on every face

Match dimensions to the exact part number before mounting or drilling. Cable glands and the completed installation must suit the required enclosure protection.

Auxiliary contacts

Up to two auxiliary contacts can be fitted per switch. Select by switch size and the required operating sequence.

Switch size	Accessory code	Contact / operation	Rating at 250V
Y1	590.PL004001 / 590.PL004002	NC / NO options · simultaneous with main contacts	16A
Y1	590.PL004005	NO/NC · breaks before main contacts	16A
Y3 · Y4 · Y5	590.PL005	NO/NC · breaks before main contacts	15A

Codes listed in the supplied catalogue. Confirm compatibility for the exact switch, including any Y2 configuration. Auxiliary contacts are accessories and are not implied to be included.

Switched or solid neutral?

Choose the neutral configuration required for the installation.

Configuration	Neutral operation	Identification
4P (3P+N)	Neutral is switched, with early-make / late-break operation.	05 pole code without a solid-neutral suffix
3P+SN	Three switched phases plus an unswitched neutral terminal block.	.SN suffix
3P+SN · high wiring	Unswitched neutral with extra enclosure space.	.WSN suffix

The neutral in a 3P+SN model is a through terminal block, not a switched pole.

Chemical & environmental guide

SCAME's indicative guide for the stainless steel enclosure.

Agent	Resistance
Saline solution	Resistant
Concentrated acids	Limited resistance
Diluted acids	Resistant
Concentrated bases	Resistant
Diluted bases	Resistant
Hexane, benzol, acetone and alcohol	Resistant
Mineral oil	Resistant
UV rays	Resistant

Indicative values only. Confirm suitability for specific substances and exposure conditions with SCAME technical service. Protection and impact ratings vary by configuration; use the selected model's datasheet.

Source: SCAME ISOLATORS-INOX Australian catalogue ZP01353-EN-0, pp. 1–6. Ratings and dimensions vary by model.
