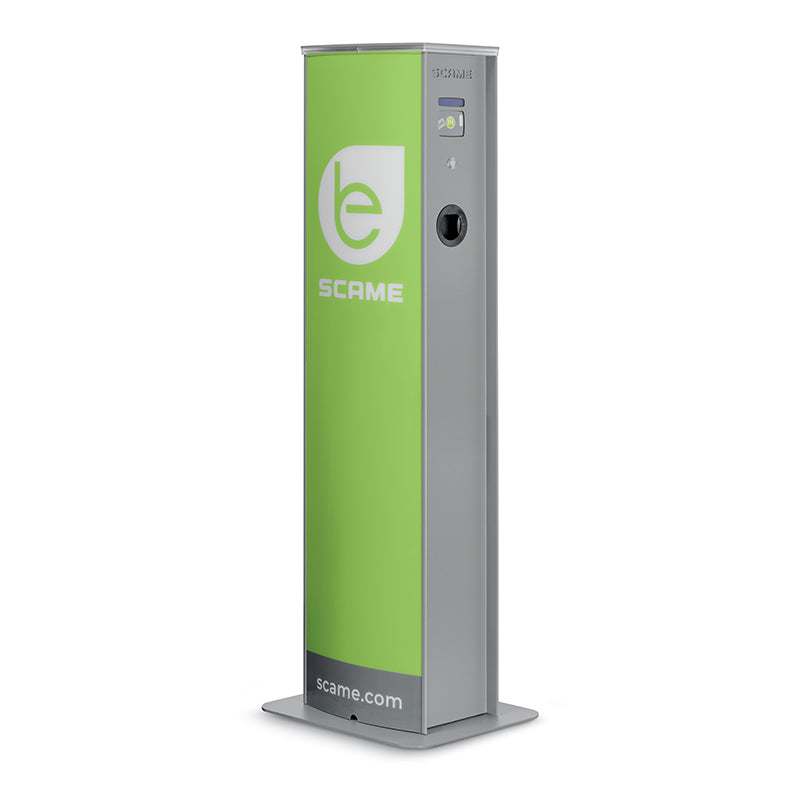

PILLAR CA Type 2 Socket Charging Station 7.4kW

The PILLAR CA Type 2 Socket Charging Station 7.4kW  is a sleek and durable EV charging solution designed for public, commercial, and residential use. With its robust build and modern design, it ensures reliable and efficient electric vehicle charging. The charging station features a Type 2 socket, providing flexibility for various EV models. Its user-friendly interface and smart charging capabilities make it an ideal choice for sustainable mobility solutions.

• 1 base with separation chamber
• 1 power supply 24Vdc 36W
• 1 fuse holder 1P+N gG 4A
• 1 control card
• 1 stop charge push-button (mode free)
• 1 lcd display 2x20 rows backlight
• 1 reader RFID 13,56MHz
• 1 circuit breaker 1P+N C40 30mA ist. A
• 1 lighting head in translucent and RGB led
• 1 couple of front panels in polycarbonate
• 1 couple of service led
• 1 shunt trip release 24Vdc
• 1 terminal strip 3x35mm²
• 1 couple of batteries 12Vdc 1,2Ah
• 1 digital energy meter 1P+N 45A
• 1 industrial contactor 2P 32A 24Vdc

• upstream protections (by the installer):
• 1 circuit breaker RCD Type B

Downloads:

• Technical Sheet
