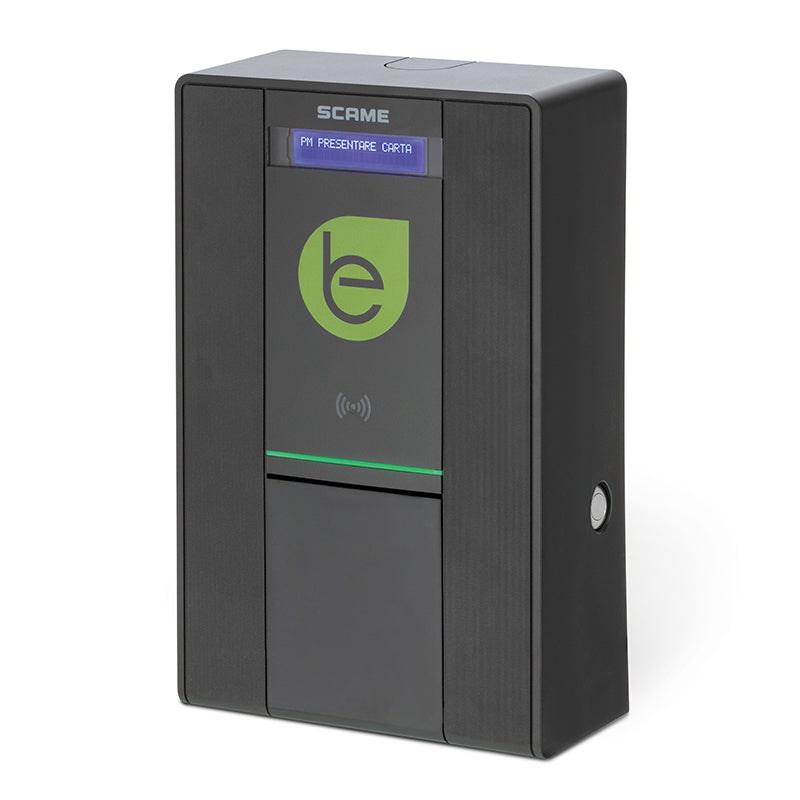

BE-W SERIES WALL BOX 1 SOCKET TYPE 2 22kW OCPP 1.6 JSON

• BE-W Series

• WALL BOX 1 SOCKET TYPE 2

• Rated voltage 400V


Tech Data Emobility

EV standard

• Type 2 1P+N+E 32A 230V~ 22kW
• LCD 2x20 char
• RFID authentication

• Ethernet Connectivity
• OCPP 1.6 JSON Communication protocol


EV functions

• charge in mode 3 with pwm circuit pilot
• predisposition for serial communication
• energy metering and current consumption
• identification of authorized user
• protection against direct contact Safety Child Shutters
• working in mode stand-alone free or personal
• charge managing in case of power outage
• identification of connected cord-set size
• interfacing with OCPP Central Station
• managing of latching system

EV equipment

• • 1 backup battery
  • 1 power supply 24Vdc 36W
  • 1 fuse holder 1P+N gG 4A
  • 1 DC Leakage detector
  • 1 control card
  • 1 stop charge push-button (mode free)
  • 1 lcd display 2x20 rows backlight
  • 1 RBG led stripes
  • 1 reader RFID 13,56MHz
  • 1 local server wired with OCPP 1.6J protocol
  • 1 modular contactor 4P 40A 24Vdc
  • 1 digital energy meter MID 3P+N 80A
  • 1 terminal strip 5x10mm²

• upstream protections (by the installer):
• 1 circuit breaker 1P+N C40 30mA ist. A
