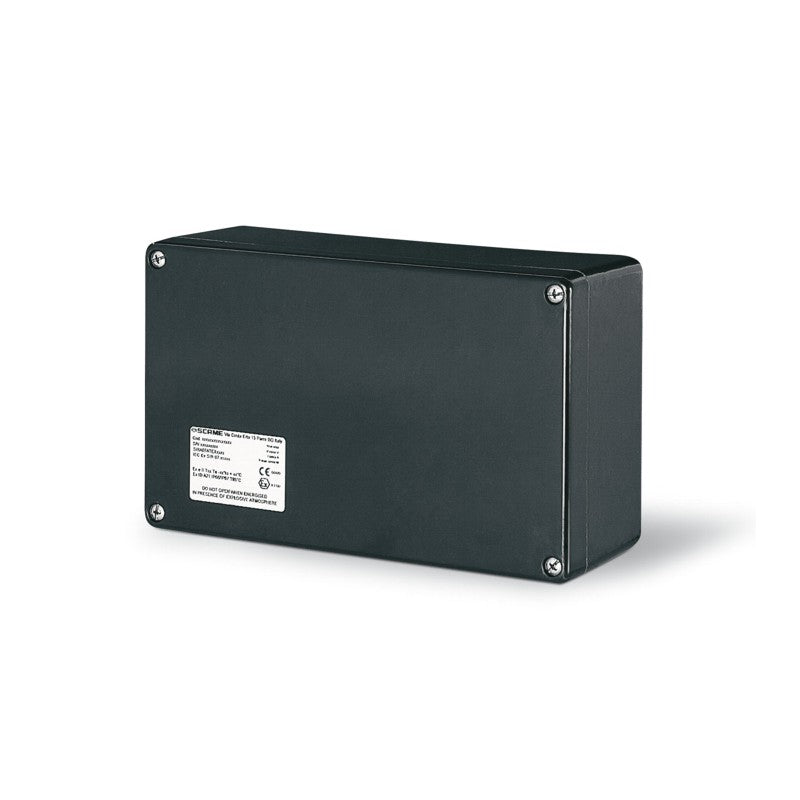

644.0360 SURFACE MOUNTING BOX - EX THERMOSETTING

The ZENITH P range comprises 15 sizes of enclosures manufactured in GRP glass reinforced polyester with 4 mm thickness. Polyester gives excellent mechanical strength and life expectancy: this material is highly resistant to contamination, it is corrosion-proof and is suitable for LSOH (low smoke zero halogen) applications. The range is carbon loaded which helps to reduce the surface resistance of the material and consequently removes the risk of ignition sources through static-induced sparking resistivity. The mounting holes are contained within the profile of the enclosure, but are outside the seal. The wall thickness is sufficient to allow entry holes to be machined in the walls of the enclosure and it provides a very good alternative to aluminium, stainless steel or cast iron.

These enclosures may be supplied with terminals fitted or as an empty certified component. If supplied as the latter, then final certification by the customer after fitting additional equipment, must be obtained. The ZENITH P range offers safe protection in various applications including both industrial and hazardous area where extremely unfavourable conditions are present. They are ideal for a wide variety of uses such as OEM applications, fire protection systems, tunnel wiring, lighting, power and instrument junction boxes.

The products have passed laboratory tests and obtained the safety certification by approved ATEX certification bodies. Scame guarantees that the enclosure systems have been correctly manufactured and are compliant with safety standards. The correct use of the enclosure systems for their intended duty is essential for safeguarding the type of protection.
